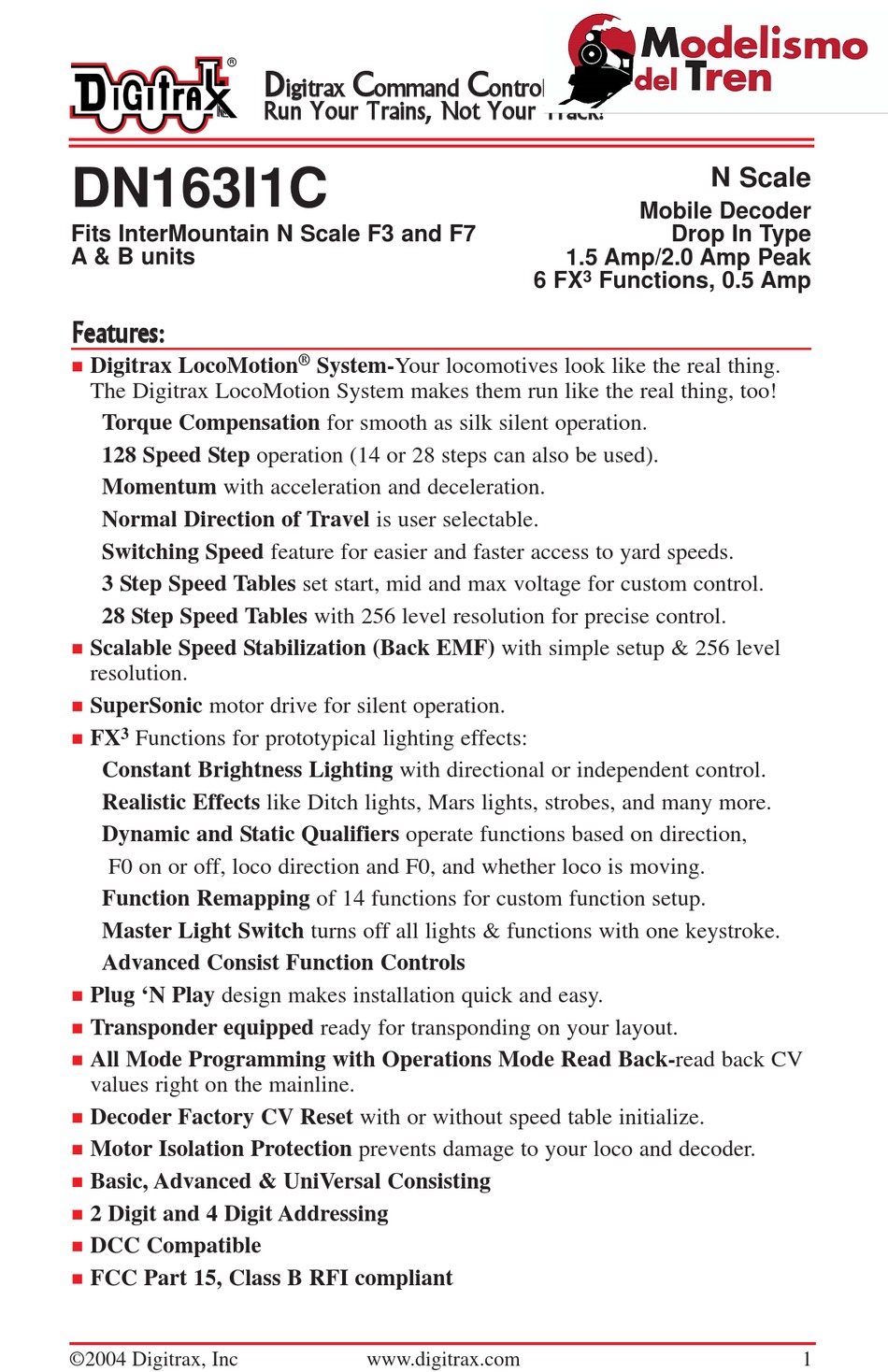

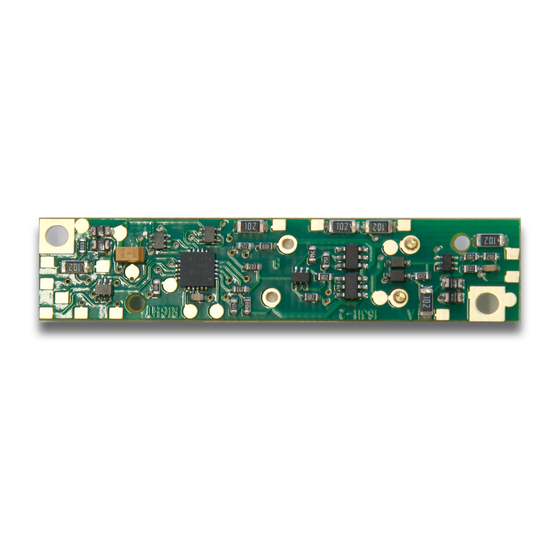

DN163I1C
Fits InterMountain N Scale F3 and F7
A & B units
F F e e a a t t u u r r e e s s : :
Digitrax LocoMotion
n
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scalable Speed Stabilization (Back EMF) with simple setup & 256 level
n
resolution.
SuperSonic motor drive for silent operation.
n
3
FX
Functions for prototypical lighting effects:
n
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
Dynamic and Static Qualifiers operate functions based on direction,
F0 on or off, loco direction and F0, and whether loco is moving.
Function Remapping of 14 functions for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Plug 'N Play design makes installation quick and easy.
n
Transponder equipped ready for transponding on your layout.
n
All Mode Programming with Operations Mode Read Back-read back CV
n
values right on the mainline.
Decoder Factory CV Reset with or without speed table initialize.
n
Motor Isolation Protection prevents damage to your loco and decoder.
n
Basic, Advanced & UniVersal Consisting
n
2 Digit and 4 Digit Addressing
n
DCC Compatible
n
FCC Part 15, Class B RFI compliant
n
©2004 Digitrax, Inc
D D
C C
i i g g i i t t r r a a x x
o o m m m m a a n n d d
R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! !
®
System-Your locomotives look like the real thing.
www.digitrax.com
C C
o o n n t t r r o o l l
1.5 Amp/2.0 Amp Peak
6 FX
3
Functions, 0.5 Amp
N Scale
Mobile Decoder
Drop In Type
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DN163I1C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitrax DN163I1C

Summary of Contents for Digitrax DN163I1C

  • Page 1 Digitrax LocoMotion System-Your locomotives look like the real thing. The Digitrax LocoMotion System makes them run like the real thing, too! Torque Compensation for smooth as silk silent operation. 128 Speed Step operation (14 or 28 steps can also be used).

  • Page 2: Instruction Sheet

    I I n n s s t t a a l l l l a a t t i i o o n n I I n n f f o o r r m m a a t t i i o o n n See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information.

  • Page 3: Installation Notes

    Installation Notes: 1. Do not exceed the decoder’s 500mA total function output rating. 2. To use a function output with an inductive (coil) type load, see the Digitrax Decoder Manual for more information to avoid damage to the decoder. 3. See the Digitrax Decoder Manual for full details of wiring 12-16V lamps, 1.5V lamps, and LEDs.
  • Page 4 S S p p e e e e d d T T a a b b l l e e s s - - H H o o w w t t h h e e L L o o c c o o R R e e s s p p o o n n d d s s t t o o t t h h e e T T h h r r o o t t t t l l e e With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables.
  • Page 5 The decoder’s factory setting is 00 (Supersonic On) To turn supersonic Off set CV9 to 255 For more information about these settings, please see the Digitrax Decoder Manual or our web site.

  • Page 6: Lighting Effects

    All six function outputs can be easily set up with Digitrax FX lighting effects or as standard on/off functions with the following operational qualifiers: 1.
  • Page 7 OFF. To turn on transponding, program CV61 to a value of 002/x02. This allows you to use Digitrax transponding to keep track of your rolling stock. D D e e c c o o d d e e r r R R e e s s e e t t C C V V 0 0 8 8 Decoder reset lets you reset all CV values to the factory default settings.
  • Page 8 R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! ! ©2004 Digitrax, Inc...
  • Page 9 DN163I1A Fits InterMountain FT A units 450 Cemetery Street Norcross, GA USA 30071 www.digitrax.com 770-441-7992 770-441-0759 Made in U.S.A. sales@digitrax.com...
