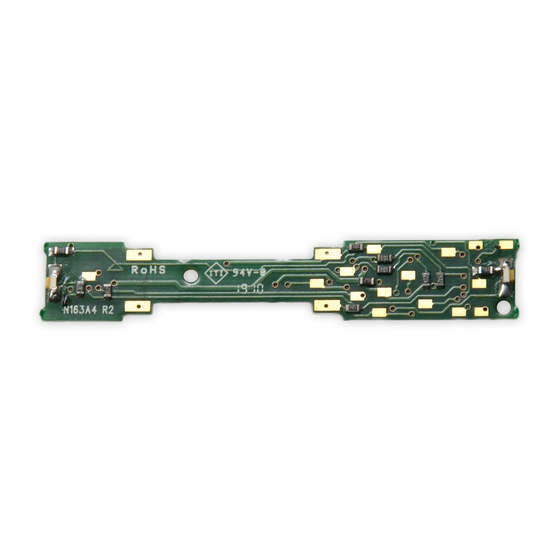

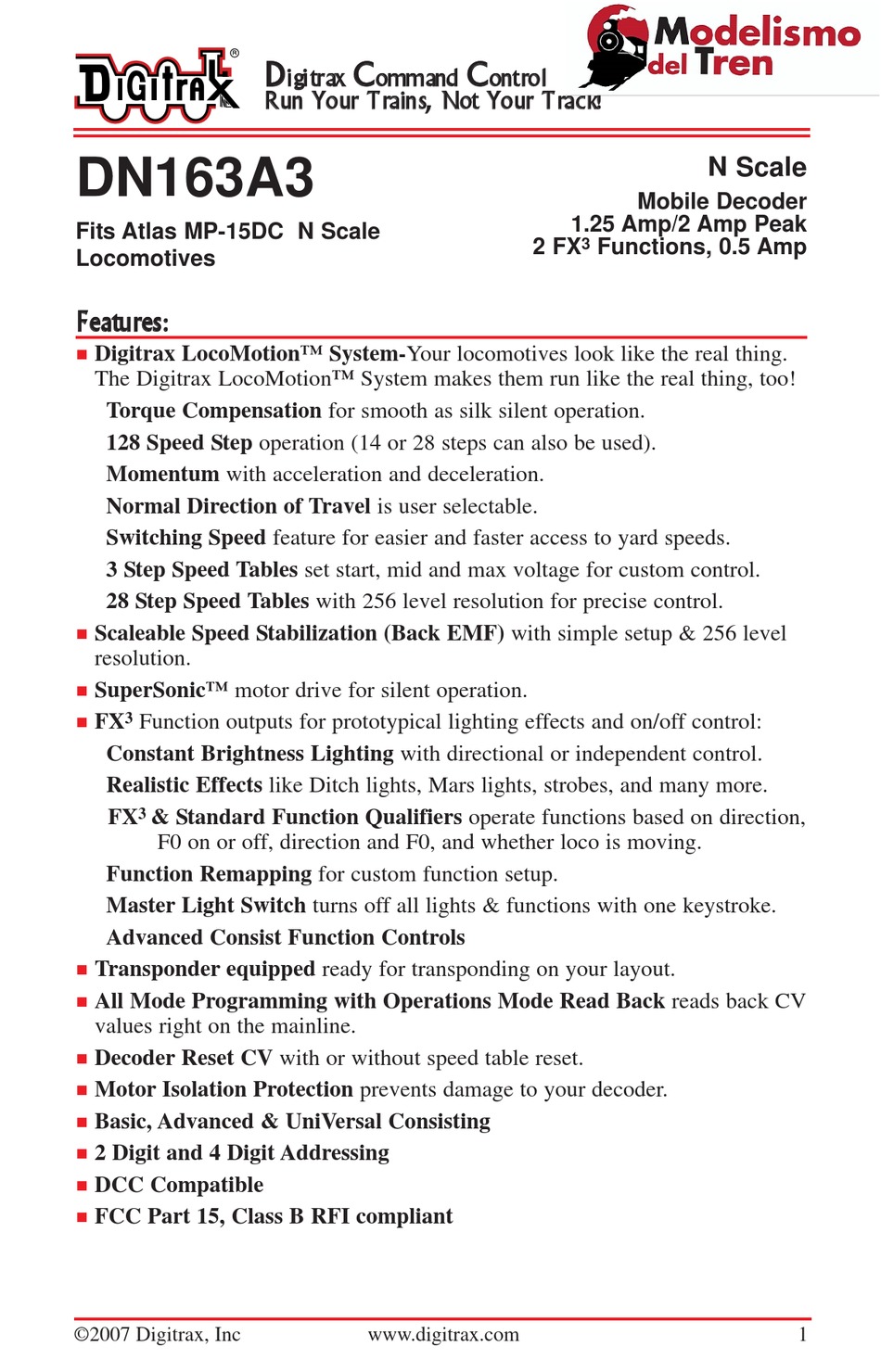

DN163A3
Fits Atlas MP-15DC N Scale
Locomotives
F F e e a a t t u u r r e e s s : :
Digitrax LocoMotion™ System-Your locomotives look like the real thing.
n
The Digitrax LocoMotion™ System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level
n
resolution.
SuperSonic™ motor drive for silent operation.
n
3
FX
Function outputs for prototypical lighting effects and on/off control:
n
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
3
FX
& Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Transponder equipped ready for transponding on your layout.
n
All Mode Programming with Operations Mode Read Back reads back CV
n
values right on the mainline.
Decoder Reset CV with or without speed table reset.
n
Motor Isolation Protection prevents damage to your decoder.
n
Basic, Advanced & UniVersal Consisting
n
2 Digit and 4 Digit Addressing
n
DCC Compatible
n
FCC Part 15, Class B RFI compliant
n
©2007 Digitrax, Inc
D D
C C
i i g g i i t t r r a a x x
o o m m m m a a n n d d
R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! !
www.digitrax.com
C C
o o n n t t r r o o l l
1.25 Amp/2 Amp Peak
2 FX
3
Functions, 0.5 Amp
N Scale
Mobile Decoder
1
Advertisement
Related Manuals for Digitrax DN163A3
Summary of Contents for Digitrax DN163A3
- Page 1 F F e e a a t t u u r r e e s s : : Digitrax LocoMotion™ System-Your locomotives look like the real thing. The Digitrax LocoMotion™ System makes them run like the real thing, too! Torque Compensation for smooth as silk silent operation.
- Page 2 I I n n s s t t a a l l l l a a t t i i o o n n I I n n f f o o r r m m a a t t i i o o n n See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information.
- Page 3 @ @ d d i i g g i i t t r r a a x x . . c c o o m m 3. Installation of the DN163A3 decoder is the reverse of the removal sequence.
- Page 4 6. Re-install the MP-15DC shell and fuel tank and you’re done! (Figure 4) 7. You are now ready to run your locomotive. The DN163A3 is factory pro- grammed to address 03. You can easily customize the address and other fea- tures.
- Page 5 C C u u s s t t o o m m i i z z i i n n g g Y Y o o u u r r D D e e c c o o d d e e r r Your Digitrax decoder is ready to run and will operate using address 03 with no additional programming.
- Page 6 S S p p e e e e d d T T a a b b l l e e s s - - H H o o w w t t h h e e L L o o c c o o R R e e s s p p o o n n d d s s t t o o t t h h e e T T h h r r o o t t t t l l e e With Digitrax LocoMotion™, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables.
- Page 7 000/x00 for OFF. To turn ON transponding, program CV61 to a value of 002/x02. This allows you to use Digitrax transponding to keep track of your rolling stock. When transponding is enabled, the front light of the locomotive will flicker slightly to indicate transponding signal is being communicated.
- Page 8 CV values, program CV08 to a value of 008/x08. You also have the option of resetting all values except the 28 speed step tables. To do this, pro- gram CV08 to a value of 009/x09. ©2007 Digitrax, Inc www.digitrax.com...
-
Page 9: Lighting Effects
F F u u n n c c t t i i o o n n O O u u t t p p u u t t s s o o n n t t h h e e D D N N 1 1 6 6 3 3 A A 3 3 The DN163A3 is set up at the factory to control four function outputs. The... - Page 10 (typi- cally this is 12V DC). For most N scale layouts, Digitrax recommends using 14 volts DCC or less for operation to avoid damage to the locomotive shell, lamps and decoder.
- Page 11 @ @ d d i i g g i i t t r r a a x x . . c c o o m m This page left intentionally blank ©2007 Digitrax, Inc www.digitrax.com...
- Page 12 DN163A3 Atlas MP-15DC N Fits Scale Locomotives 450 Cemetery Street Norcross, GA USA 30071 www.digitrax.com 770-441-7992 770-441-0759 Made in U.S.A. sales@digitrax.com...
