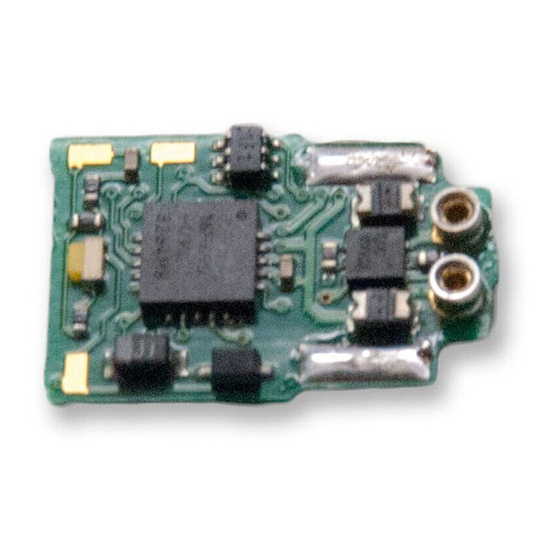

DN126M2
Fits Micro Trains Line SW1500
Locomotive
.418" x .621" x .107"
10.63mm x 15.79mm x 2.72 mm
Features:
▪
FX
Function outputs for prototypical lighting effects and on/off control:
3
Constant Brightness Lighting with directional or independent control.
Optimized selectable LED or incandescent lamp operation
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
Configurable Pulse Function available on all function outputs.
FX
& Standard Function Qualifiers operate functions based on direc-
3
tion, F0 on or off, direction and F0, and whether loco is moving.
Function Mapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls.
▪
Digitrax LocoMotion
The Digitrax LocoMotion System makes them run like the real thing too!
Scaleable Speed Stabilization (Back EMF) with simple setup & 256
level resolution.
Torque Compensation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
▪
Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment.
▪
2 Digit and 4 Digit Addressing.
▪
Basic, Advanced & UniVersal Consisting.
▪
SuperSonic motor drive for silent operation.
▪
DIRect mode programming.
▪
Decoder Reset CV with or without speed table reset.
▪
Transponder Equipped ready for transponding on your Layout.
▪
Motor Isolation Protection helps prevent damage to your decoder.
▪
Automatic Analog Mode Conversion when running on DC layout.
▪
Decoder Lock for individual programming of multiple decoders in one loco.
▪
Digitrax "No Worries" Warranty.
© 2014 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
N Scale
Mobile Decoder
DCC Board Replacement
1.5 Amp/2 Amp Peak
2 FX
System-Your locomotives look like the real thing.
®
— 1 —
Functions, 0.5 Amp
3
www.digitrax.com
Advertisement
Table of Contents
Related Manuals for Digitrax DN126M2
Summary of Contents for Digitrax DN126M2
- Page 1 ▪ Digitrax LocoMotion System-Your locomotives look like the real thing. ® The Digitrax LocoMotion System makes them run like the real thing too! Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution. Torque Compensation. 128 Speed Step operation (14 or 28 steps can also be used).
-
Page 2: Parts List
1 DN126M2 Function Decoder 1 Instruction Sheet Installation Information See the Digitrax Decoder Manual V2 for complete decoder test procedures, instal- lation instructions, programming and technical information. Digitrax manuals and instructions are updated periodically. Please visit www.digitrax.com for the latest versions, technical updates and additional locomotive-specific installation instructions. - Page 3 Digitrax decoders are shipped with CV01 (AD2), the two digit address, set to 03. Following is a brief description of how to change the decoder address with a Digitrax DT4XX series throttle. See your Starter Set Manual for complete programming instructions.
- Page 4 Speed Tables-How the Loco Responds to the Throttle With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables. Please see your Decoder Manual V2 for a discussion of the 28 Step Tables.
- Page 5 OFF. To turn on transponding, program CV61 to a value of 002. This al- lows you to use Digitrax transponding to keep track of your rolling stock. When transponding is enabled, the front light of the locomotive will flicker slightly to indicate transponding signal is being communicated.
-
Page 6: Warranty And Repair
That’s it! A simple, straightforward warranty with no tricky language! Visit www.digitrax.com for complete warranty details and instructions for returning items for repair. Please return warranty items directly to Digitrax - DO NOT return items to place of purchase. © 2014 Digitrax, Inc. - Page 7 This page left intentionally blank. © 2014 Digitrax, Inc. — 7 — www.digitrax.com...
- Page 8 DN126M2 Fits Micro Trains Line SW1500 Locomotive Super Available Computer Interface Decoder Programmer Sound Programmer 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com Made in the USA Contact: www.digitrax.com/contact Part 15, Class B RFI Compliant Support: techsupport@digitrax.com Repair: repair@digitrax.com...
