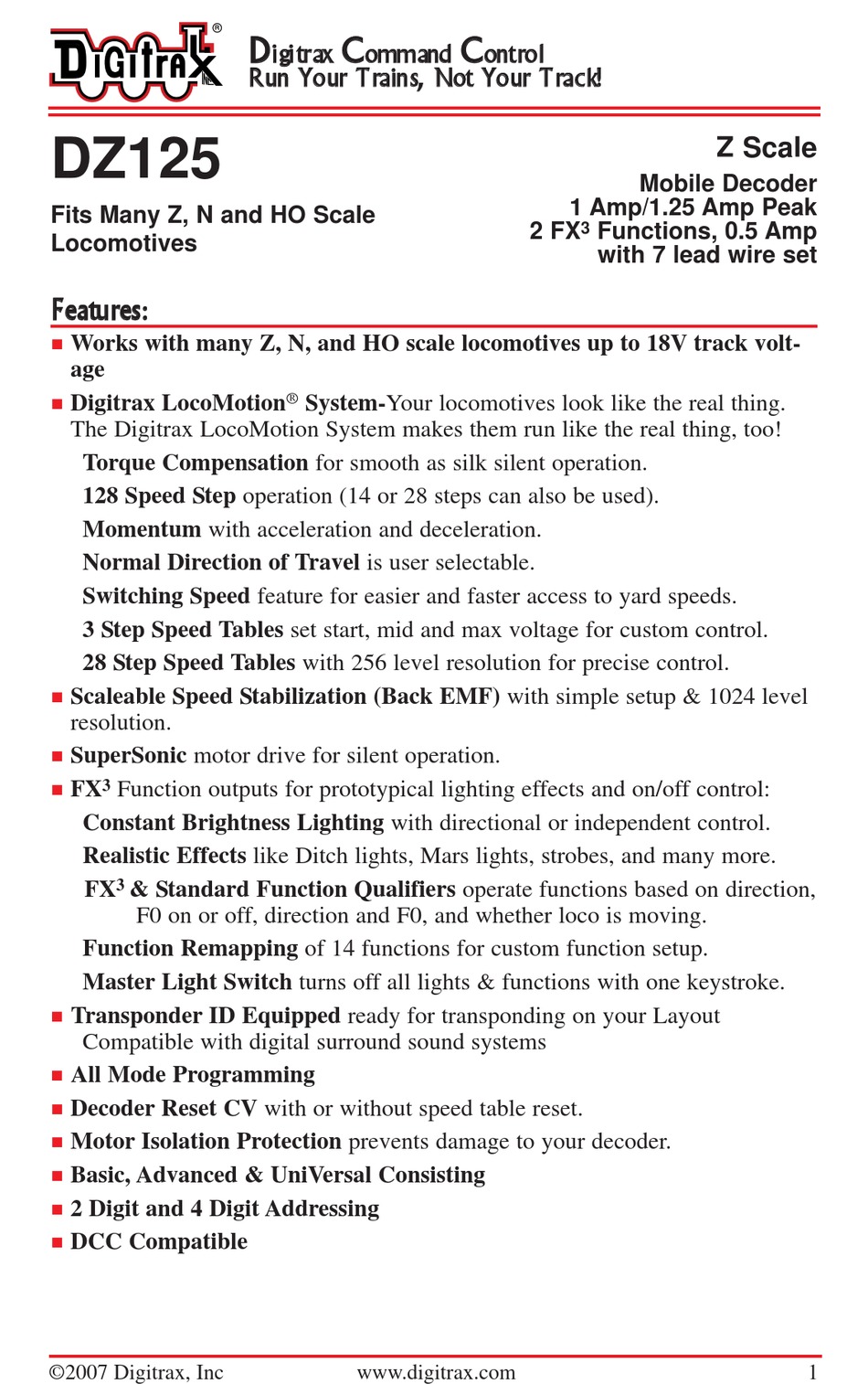

Digitrax DZ125 Quick Start Manual

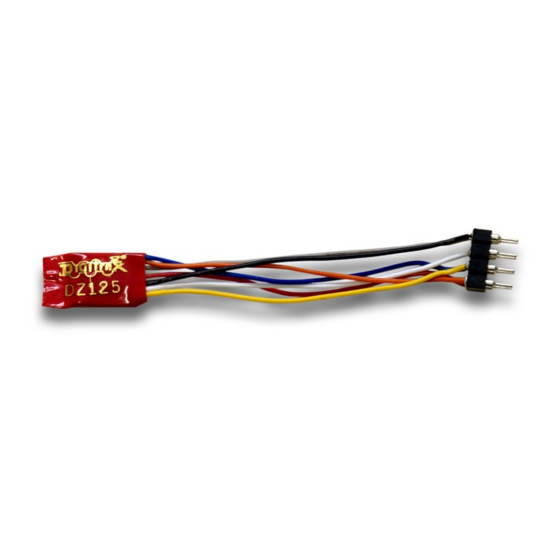

DZ125
Fits Many Z, N and HO Scale
Locomotives
F F e e a a t t u u r r e e s s : :
Works with many Z, N, and HO scale locomotives up to 18V track volt-
n
age
Digitrax LocoMotion
n
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scaleable Speed Stabilization (Back EMF) with simple setup & 1024 level
n
resolution.
SuperSonic motor drive for silent operation.
n
3
FX Function outputs for prototypical lighting effects and on/off control:
n
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
FX 3 & Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
Function Remapping of 14 functions for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Transponder ID Equipped ready for transponding on your Layout
n
Compatible with digital surround sound systems
All Mode Programming
n
Decoder Reset CV with or without speed table reset.
n
Motor Isolation Protection prevents damage to your decoder.
n
Basic, Advanced & UniVersal Consisting
n
2 Digit and 4 Digit Addressing
n
DCC Compatible
n
©2007 Digitrax, Inc
D D C C
i i g g i i t t r r a a x x o o m m m m a a n n d d
R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! !
®
System-Your locomotives look like the real thing.
www.digitrax.com
C C
o o n n t t r r o o l l
1 Amp/1.25 Amp Peak
3
2 FX Functions, 0.5 Amp
with 7 lead wire set
Z Scale
Mobile Decoder
1
