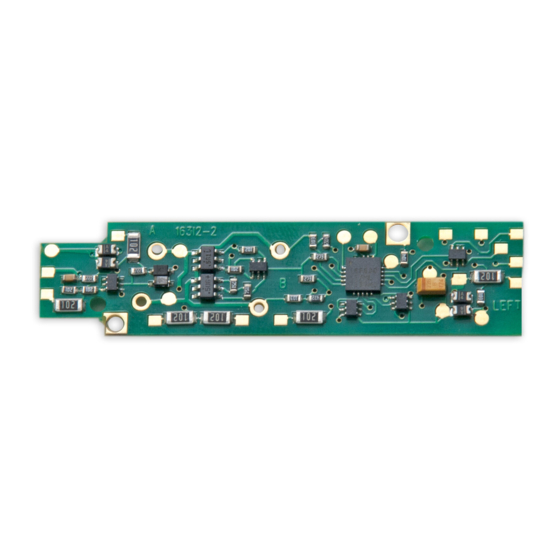

DN163I2
Fits InterMountain N Scale FP 7 units
F F e e a a t t u u r r e e s s : :
Digitrax LocoMotion
n
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scalable Speed Stabilization (Back EMF) with simple setup & 256 level
n
resolution.
SuperSonic motor drive for silent operation.
n
FX
3
Functions for prototypical lighting effects:
n
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
Dynamic and Static Qualifiers operate functions based on direction,
F0 on or off, loco direction and F0, and whether loco is moving.
Function Remapping of 14 functions for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Plug 'N Play design makes installation quick and easy.
n
Transponder equipped ready for transponding on your layout.
n
All Mode Programming with Operations Mode Read Back-read back CV
n
values right on the mainline.
Decoder Factory CV Reset with or without speed table initialize.
n
Motor Isolation Protection prevents damage to your loco and decoder.
n
Basic, Advanced & UniVersal Consisting
n
2 Digit and 4 Digit Addressing
n
DCC Compatible
n
FCC Part 15, Class B RFI compliant
n
©2008 Digitrax, Inc
D D
C C
i i g g i i t t r r a a x x
o o m m m m a a n n d d
R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! !
®
System-Your locomotives look like the real thing.
www.digitrax.com
C C
o o n n t t r r o o l l
1.5 Amp/2.0 Amp Peak
3
6 FX
Functions, 0.5 Amp
N Scale
Mobile Decoder
Drop In Type
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitrax DN163I2
Summary of Contents for Digitrax DN163I2
- Page 1 Digitrax LocoMotion System-Your locomotives look like the real thing. The Digitrax LocoMotion System makes them run like the real thing, too! Torque Compensation for smooth as silk silent operation. 128 Speed Step operation (14 or 28 steps can also be used).
- Page 2 I I n n s s t t a a l l l l a a t t i i o o n n I I n n f f o o r r m m a a t t i i o o n n See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information.
- Page 3 Installation Notes: 1. Do not exceed the decoder’s 500mA total function output rating. 2. To use a function output with an inductive (coil) type load, see the Digitrax Decoder Manual for more information to avoid damage to the decoder. 3. See the Digitrax Decoder Manual for full details of wiring 12-16V lamps, 1.5V lamps, and LEDs.
- Page 4 S S p p e e e e d d T T a a b b l l e e s s - - H H o o w w t t h h e e L L o o c c o o R R e e s s p p o o n n d d s s t t o o t t h h e e T T h h r r o o t t t t l l e e With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables.
- Page 5 CV57. The factory setting for this feature is 006/x06 which is suitable for most locos. You can adjust this value in the range of 000/x00 for OFF to 015/x0F for the maximum effect. Consult your Digitrax Decoder Manual for info about CVs 55 & 56 and their effects on scaleable speed stabilization.
- Page 6 F F u u n n c c t t i i o o n n O O u u t t p p u u t t s s o o n n t t h h e e D D N N 1 1 6 6 3 3 I I 2 2 The DN163I2 is set up at the factory to control six functions. The unit has two sets of outputs for directional lighting.
- Page 7 OFF. To turn on transponding, program CV61 to a value of 002/x02. This allows you to use Digitrax transponding to keep track of your rolling stock. D D e e c c o o d d e e r r R R e e s s e e t t C C V V 0 0 8 8 Decoder reset lets you reset all CV values to the factory default settings.
- Page 8 DN163I2 Fits InterMountain FP 7 units Digitrax, Inc 2443 Transmitter Road , FL 32404- ANAMA 3157 sales@digitrax.com Made in U.S.A.
