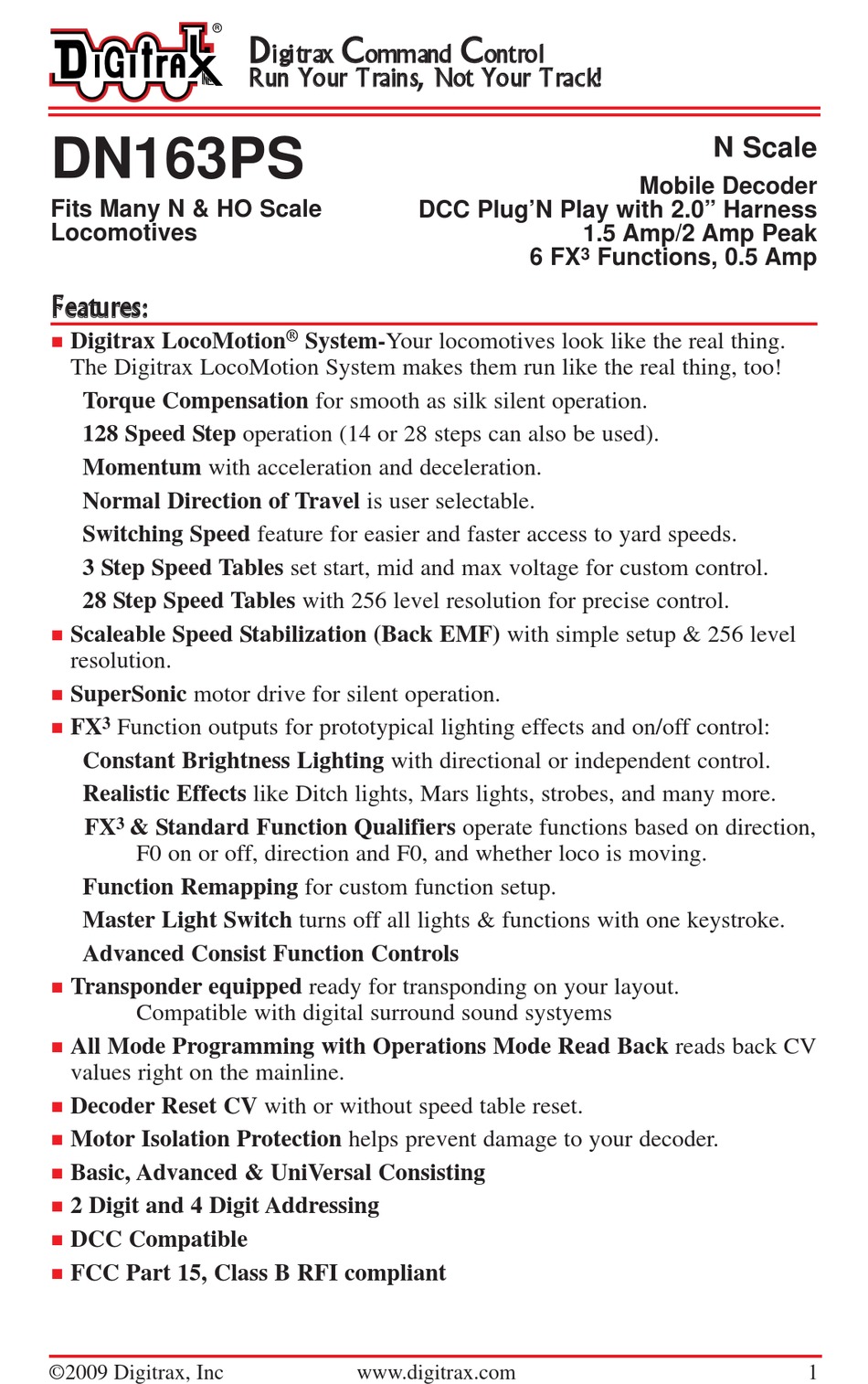

DN163PS
Fits Many N & HO Scale
Locomotives
F F e e a a t t u u r r e e s s : :
Digitrax LocoMotion
n
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level
n
resolution.
SuperSonic motor drive for silent operation.
n
3
FX
Function outputs for prototypical lighting effects and on/off control:
n
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
3
FX
& Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Transponder equipped ready for transponding on your layout.
n
Compatible with digital surround sound systyems
All Mode Programming with Operations Mode Read Back reads back CV
n
values right on the mainline.
Decoder Reset CV with or without speed table reset.
n
Motor Isolation Protection helps prevent damage to your decoder.
n
Basic, Advanced & UniVersal Consisting
n
2 Digit and 4 Digit Addressing
n
DCC Compatible
n
FCC Part 15, Class B RFI compliant
n
©2009 Digitrax, Inc
D D
C C
i i g g i i t t r r a a x x
o o m m m m a a n n d d
R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! !
®
System-Your locomotives look like the real thing.
www.digitrax.com
C C
o o n n t t r r o o l l
DCC Plug'N Play with 2.0" Harness
6 FX
3
N Scale
Mobile Decoder
1.5 Amp/2 Amp Peak
Functions, 0.5 Amp
1
Advertisement
Table of Contents
Related Manuals for Digitrax DN163PS
Summary of Contents for Digitrax DN163PS
- Page 1 Digitrax LocoMotion System-Your locomotives look like the real thing. The Digitrax LocoMotion System makes them run like the real thing, too! Torque Compensation for smooth as silk silent operation. 128 Speed Step operation (14 or 28 steps can also be used).
- Page 2 2. The DN163PS has a 2.0” harness and has a DCC medium plug on the end. Remove the jumper plugs from the DCC medium socket on the factory light board and plug in the DCC plug end of the harness.
- Page 3 (typically this is 12V DC). For most N scale lay- outs, Digitrax recommends using 14 volts DCC or less for operation to avoid damage to the locomotive shell, lamps and decoder.
- Page 4 3. The head lamp should be hooked up using the Blue/+Common wire for optimal Digitrax transponding operation. 4. To use a function output with an inductive (coil) type load, see the Digitrax Decoder Manual for more information to avoid damage to the decoder.
- Page 5 S S p p e e e e d d T T a a b b l l e e s s - - H H o o w w t t h h e e L L o o c c o o R R e e s s p p o o n n d d s s t t o o t t h h e e T T h h r r o o t t t t l l e e With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables.
- Page 6 Digitrax Transponding is controlled by CV61. The initial factory set value is 000/x00 for OFF. To turn on transponding, program CV61 to a value of 002/x02. This allows you to use Digitrax transponding to keep track of your rolling stock. When transponding is enabled, the front light of the locomotive will flicker slightly to indicate transponding signal is being communicated.
- Page 7 Your decoder can also be used with one of the other Digitrax Easy Connect Harnesses. These are available in long (DHWHP) and short (DHWHPS) wire length versions with the Digitrax plug on one end and a DCC medium plug on the other end. Another version (DHAT) has the Digitrax plug and simple no- solder connections to Athearn standard locos on the other end.
- Page 8 DN163 Fits Many N & HO Locomotives Super Super Available Computer Interface Computer Interface Decoder Programmer Sound Programmer 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com 850-872-9890 850-872-9557 Made in U.S.A. sales@digitrax.com...
