Lincoln Electric Weldline Street Art Quick Manual

N°8695-8965 - Rev1_04/2018
STREET ART
STREET ART
( CHAMELEON 3V0 )
Safety instruction for use and maintenance
User safety instructions (WARNING)
• Please read all the safety instructions before using the CHAMELEON welding helmet.
• CHAMELEON helmet and cartridge are not suitable for laser, laser cutting or gas welding.
• CHAMELEON helmets are designed to protect the eyes and face against sparks, spatter and harmful
radiation. However the helmet will not provide protection against explosive devices or corrosive liquids.
• Never use the helmet if the cover plate has not been fitted correctly. Before each use, check that
no light is able to penetrate the helmet. Also check that the cover plate is clean and that there is no
dirt on the sensors on the front of the lens.
• Any parts which are scratched, cracked or pitted should be replaced immediately before the helmet
is used again in order to prevent serious injury.
• Do not use any replacement parts other than those specified in this manual. Before each use, please
check the enclosed last to make sure that the welding helmet has been supplied with all the
relevant parts.
• According your application, make sure that the shade setting is relevant with you welding
application. See the Shade Chart for welding to select the appropriate level of protection.
• CHAMELEON 3 filters are suitable for MIG, MAG, TIG, SMAW, all types of arc welding, plasma welding
and cutting and air carbon gouging.
• Arc rays may burn eyes and skin; use adequate protective equipment.

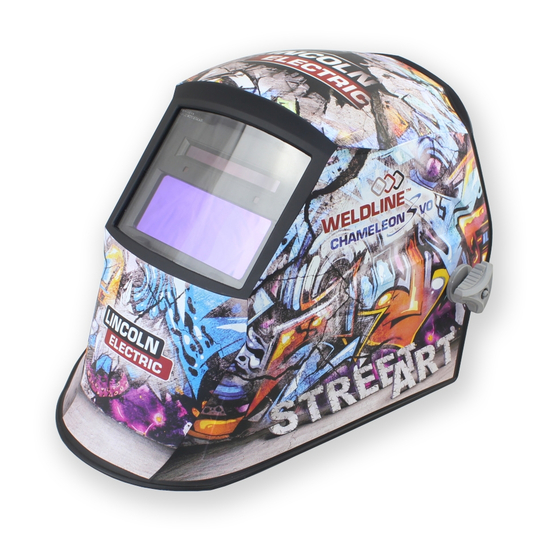

Welding with STREET ART (CHAMELEON 3V0) helmet
STREET ART (CHAMELEON 3V0) helmet automatically changes from light (shade level 3) to dark
(shade level 8-13) during welding.
When welding is stopped, the filter automatically turns clear again.
During welding, you can make fine adjustments using the potentiometer knob.
Please refer to the shade chart to match the dark shade number to the application.
STREET ART (CHAMELEON 3V0) filters also protect the user's eyes against harmful infrared (IR) and
Ultraviolet (UV) radiation at all times during welding and when clear.
There are two sensors on the front of the cartridge which detect the light from the welding arc and
cause the lens to darken.
STREET ART (CHAMELEON 3V0) has solar cells which extends the two batteries lifetime.
A V A I L A B L E C E L L S
89 / 686 / EEC Directive
EN 379 - EN 175 standards.
CHAMELEON helmets have
been certified in
conformity with the
requirments of the EN 379
et EN 175 standards by
ECS GmbH - Notified Body
1883 - ECS -
Hüttfeldstrasse 50 -
3430 Aalen - Germany
Type
Optical class
Dimensions
Vision field
Clear shade
Dark shade
Switching time clear-dark
Switching time dark-clear
Sensors
Power supply
Protection
Cat. Nr cell
Warranty
DISTRIBUTED BY LINCOLN ELECTRIC EUROPE S.L.
c/o Balmes, 89 - 8o 2a - 08008 Barcelona - SPAIN
Manufactured by OTOSWING CO ., LTD., 234-12 Kasan-Dong Kuemchun-Ku Seoul Korea
STREET ART (CHAMELEON 3V0)
Current electrode and MIG/MAG welding
Variable shade DIN 3/8-13
1/1/1/2
110 x 90 x 10 mm
97 x 40 mm
DIN 3
Variable from 8 to 13
1/12000 sec.
Adjustable between 0.1 and 1 sec
2 optical sensors
2 exchangeable alkaline batteries with solar assist
Permanent protection against UV and IR
W000402678
1 year
Shade chart
for welding
Application welding Arc current in amperes
Coated electrodes
MIG on heavy metals
Gas tungsten arc welding (TIG)
Air carbon gouging
Plasma arc cutting
Plasma arc welding
-10 °C ≈ +55 °C (+14 °F ≈ 131 °F)
Operating temperature
Weight complete mask 445 g (3 V0)
Adjusting Sensitivity
It may be necessary to adjust helmet sensitivity to accommodate different lighting conditions or if lens
is flashing On and Off. Adjust helmet sensitivity as follows:
Adjust helmet sensitivity in lighting conditions helmet will be used in.
1. Turn sensitivity control to lowest setting.
2. Press On/Off Button to turn helmet On. Helmet lens will darken twice and then clear.
3. Face the helmet in the direction of use, exposing it to the surrounding light conditions.
4. Gradually turn sensitivity setting clockwise until the lens darkens, then turn sensitivity control
counterclockwise until slightly past setting where lens clears. Helmet is ready for use. Slight
readjustment may be necessary for certain applications or if lens is flashing on and off.
Recommended Sentivity Settings
Stick Electrode
Short Circuiting (MIG)
Pulsed & Spray (MIG)
Gas Tungsten Arc (TIG)
Plasma Arc Cutting/Welding
Lens Delay Control
The lens delay control is used to slow the lens-switching time to the clear state after welding. The delay is
particulary useful in eliminating bright after-rays present in higher amperage applications where the molten
puddle remains bright momentarily after welding. Adjusts from (.10 second-Min. to 1.0 second-Max).
Low Battery Indicator
The low battery indicator lights when 2-3 days of battery life remain.
For 3 V0 model use 2 AAA-1.5 V batteries.
Protective shade no
< 40 9
40-80 10
80-175 11
175-300 12
300-500 13
< 100 10
100-175 11
175-300 12
300-500 13
< 50 10
50-100 11
100-200 12
200-400 13
< 500 12
500-700 13
60-150 11
150-250 12
250-400 13
< 50 9
50-200 10
200-400 12
Mid-Range
Low/Mid-Range
Mid-Range
Mid/High-Range
Low/Mid-Range
