CPU, Chassis, and Power Fan Connectors
(3-pin CPU_FAN1, CHA_FAN1)
The three fan connectors support cooling fans of 350mA (4.2 Watts)
or a total of 1A (12W) at +12V. Orient the fans so that the heat sink
fins allow air flow to go across the onboard heat sinks instead of the
expansion slots. The fan wiring and plug may vary depending on the
fan manufacturer. Connect the fan cable to the connector matching
the black wire to the ground pin.
CPU_FAN1
P4SC-E
CHA_FAN1
Rotation
+12V
GND
®

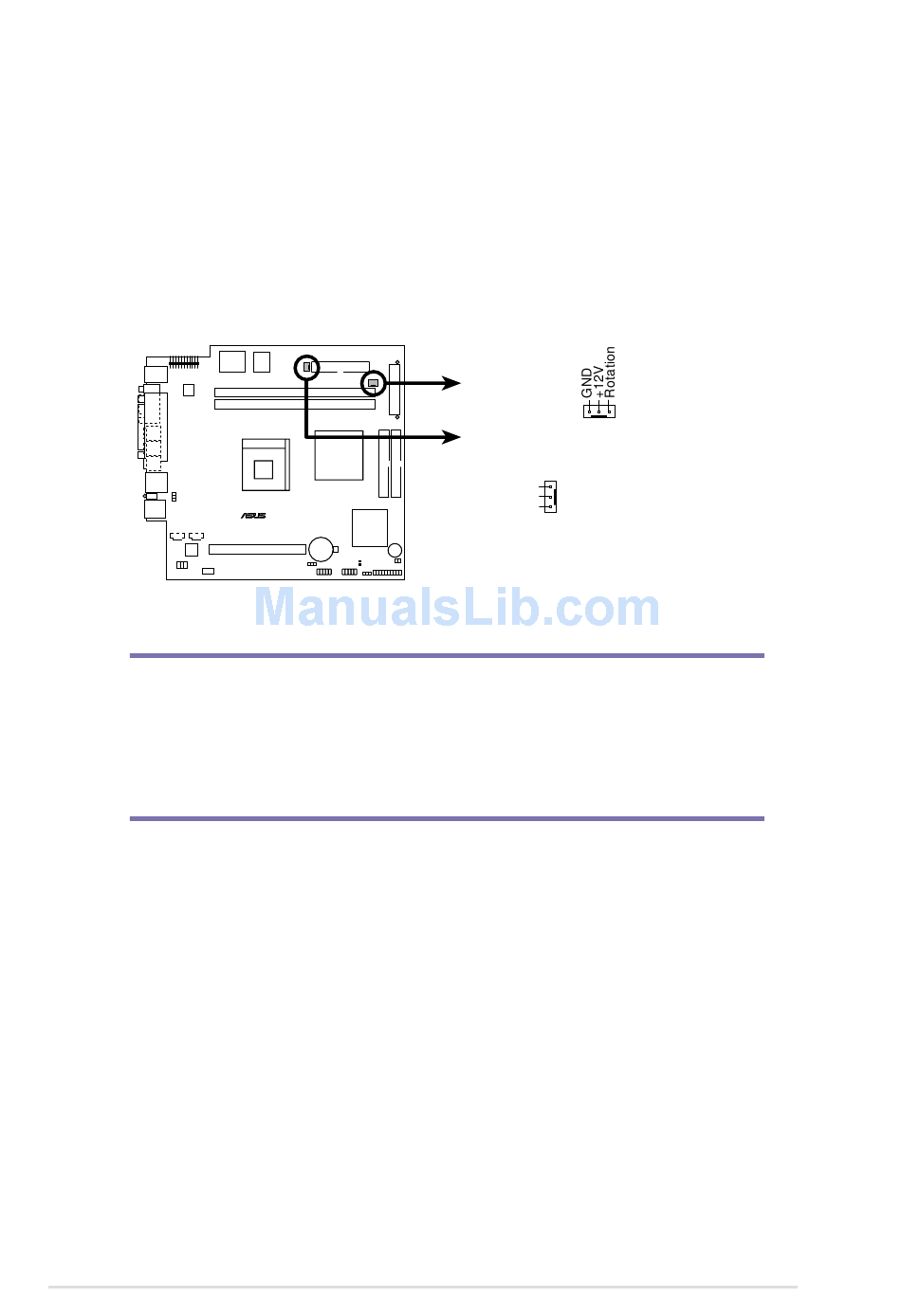

P4SC-E 12-Volt Cooling Fan Power
IMPORTANT
Do not forget to connect the fan cables to the fan connectors. Lack of
sufficient air flow within the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on
the fan connectors!
48
Chapter 3: Motherboard information
