2.9 Re-connect cables

You may have disconnected some cables when you were installing
components. You must re-connect these cables before you replace the
chassis cover.
2.9.1

LED cables

Power Switch
Power LED
HDD LED
Connect the power switch and power LED cables to their respective
leads in the PANEL1 connector on the motherboard.
Connect the HDD LED cable to the 2-pin lead marked IDE_LED1.

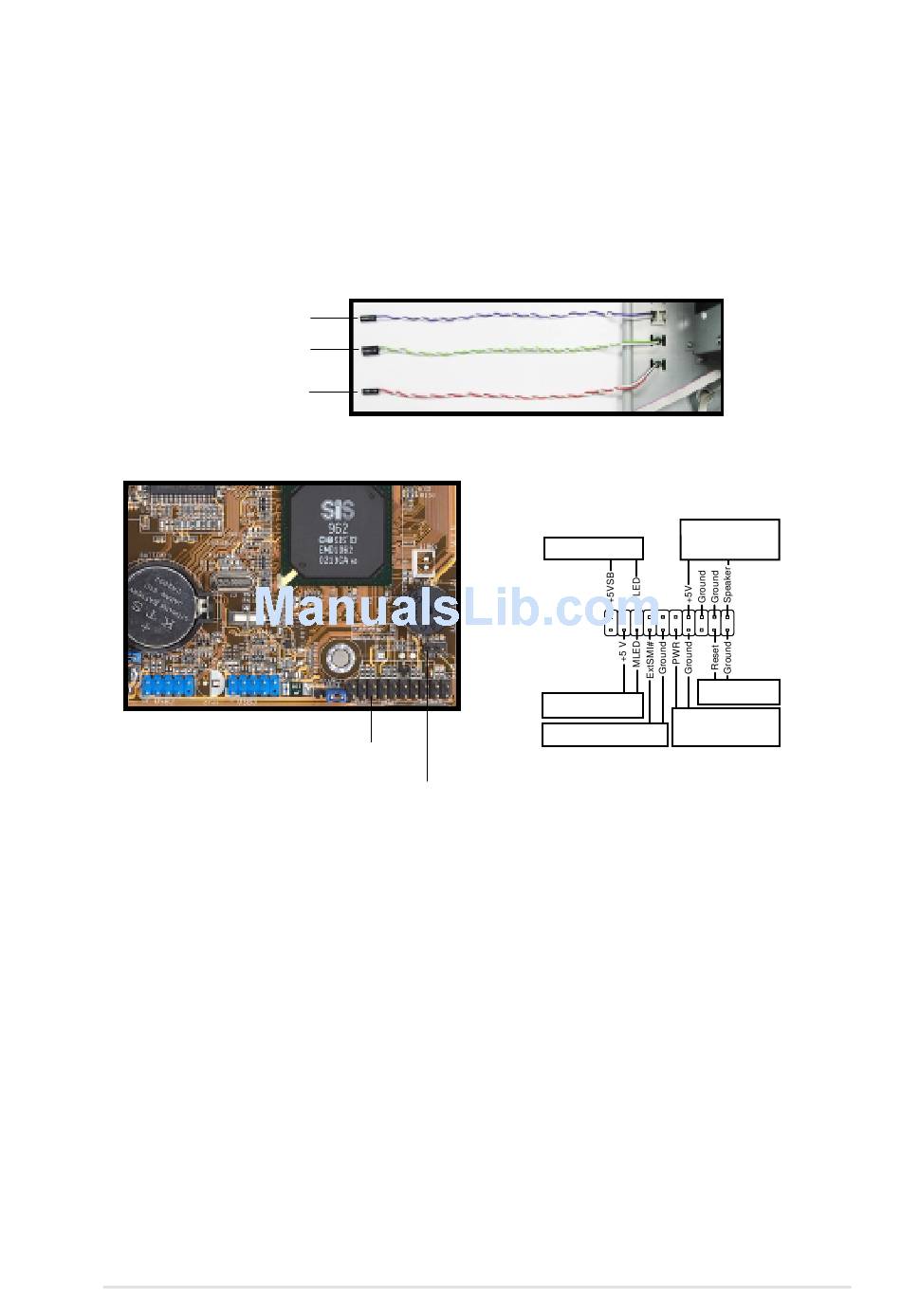

ASUS Terminator P4 533 Barebone System
PANEL1
IDE_LED1
PANEL1 Connector
Speaker
Connector
Power LED
Reset SW
Message LED
ATX Power
SMI Lead
Switch*
Requires an ATX power supply.
*
