Robe ArcPix-US User Instructions

ArcPix is a multi-purpose, high-intensity RGB LED node for generating a wide variety of effects without
the limitations associated with a solid fixture unit. The flexibility of ArcPix allows the user to create patterns
and video on almost any surface, either interior or exterior

1. Attention

Do not install the module near high inflammable liquids or materials
Do not allow anything to rest on the module
Do not install the module near the naked flames
Do not install the module in dirty,dusty or badly ventilated location
Avoid using the unit in locations subject to possible impacts.
Avoid looking directly into the LED light beam at close range.
Warning: Operation of this equipment in a residential environment could cause
radio interference.
Resistance of the equipment is designed for electromagnetic environments E1, E2, E3
according to the standard EN55103-2 ed.2 Electromagnetic compatibility. Product family
standard for audio, video, audiovisual and entertainment lighting control apparatus for
professional use. Part 2: Immunity.
The installation company should measure levels of possible interferences above the tested levels
E1,E2,E3 given by this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility
of multimedia equipment – Emission Requirements according to class A.

2. Mounting

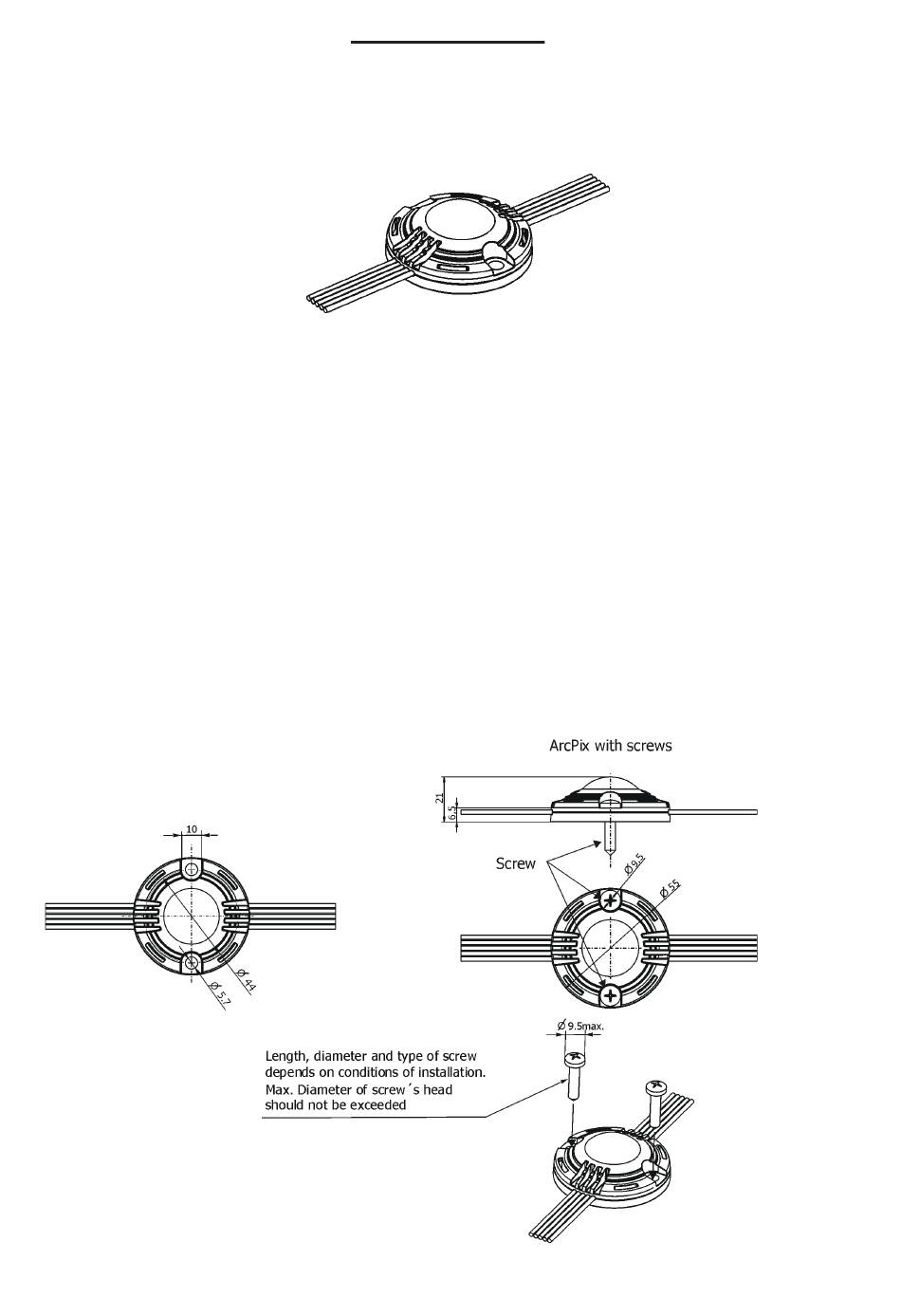

Two holes of diameter of 5.7mm in the ArcPix base serve for mounting on the non-flammable flat surface.
It is also possible to use mounting adapter (1) which is fastened on the surface via a screw (2) and the ArcPix
is snapped into the mounting adapter.
