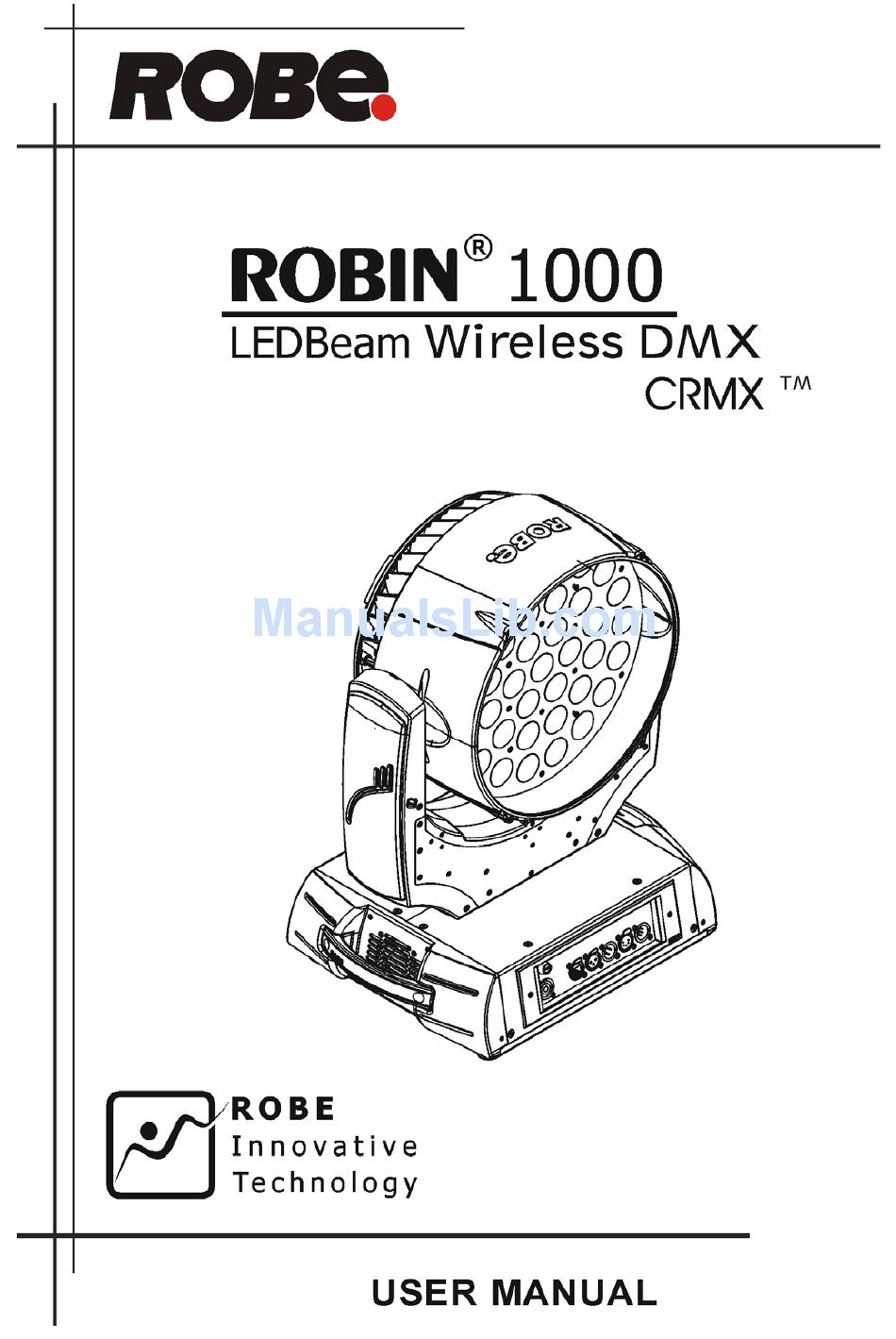

  • Page 1 Version 1.2...
  • Page 2: Table Of Contents

    3.3 DMX-5 connection ....................9 3.4 Ethernet connection ....................0 4. Control menu map ......................12 5. Robin 1000 LEDBeam - DMX chart ................15 5.1 Virtual colour wheel - colour mixing chart ..............9 5.2 LED zone order ......................3 5.3 Pan/Tilt positions ......................
  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Robin 1000 LEDBeam was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating. Do not block the LEDs array with any object when the fixture is under operation. The openings should never be covered with cloth or other materials, and never must be blocked.

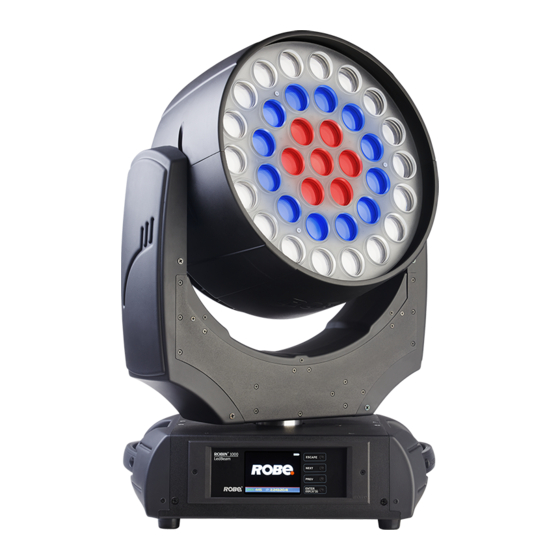

  • Page 5: Fixture Exterior View

    2. Fixture exterior view 1 - Lens array 2 - Carrying handle 3 - QVGA touch screen 4 - Control buttons 5 - Base 6 - Head cover 7 - Fan 8 - Yoke 9 - Power IN 10 - Ethernet 11 - 3-pin DMX OUT 12 - 3-pin DMX IN 13 - 5-pin DMX OUT...
  • Page 6: Installation

    3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The Robin 1000 LEDBeam is equipped with auto-switching power supply that automatically adjusts to any 50- 60Hz AC power source from 100-240 Volts. Connect the fixture to the mains by means of the enclosed power cord If you need to install other plug on the power cord, note that the cores in the power cord are coloured according to the following table.
  • Page 7: Rigging The Fixture

    3.2 Rigging the fixture A structure intended for installation of the fixture (s) must safely hold weight of the fixture(s) placed on it. The structure has to be certificated to the purpose. The fixture (fixtures) must be installed in accordance with national and local electrical and construction codes and regulation.
  • Page 8 Rigging via two Omega holders Securing the fixture via one safety wire Securing the fixture via two safety wires 1-Fixture 2-Omega holder 3-Clamp 4-Trust 5-Safety chain...
  • Page 9: Dmx-5 Connection

    3.3 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.
  • Page 10: Ethernet Connection

    3.4 Ethernet connection The fixtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft- ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
  • Page 11 Ethernet / DMX operation Options “Art2DMX” has to be selected from the “Ethernet Mode” menu on the first fixture (connected to the Ethernet) in the fixture chain,next fixtures have standard DMX setting. Connect the Ethernet-input of the first fixture in the data chain with the network. Connect the DMX output of this fixture with the input of the next fixture until all fixtures are connected to the DMX chain.
  • Page 12: Control Menu Map

    4. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Addressing Settings DMX Address 00-55 DMX Presets Mode 1 Mode 5 Ethernet Settings Ethernet Mode Disable ArtNet gMAI gMA Art2DMX IP Address/NetMask Default IP Address Custom IP Address Net Mask...
  • Page 13 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Mode 2 Mode 3 Mode 4 Mode 5 View Selected Preset DMX Input Wired Input Wireless Input Wireless In/XLR Out Off, On Pan/Tilt Settings Pan Reverse Off, On Tilt Reverse Pan/Tilt Feedback Off, On...
  • Page 14 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Stand -Alone Test Sequences Dynamic Mode Static Mode 0-55 Tilt 0-55 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Zoom 0-55 MusicTrigger Off, On Preset Playback None Test...
  • Page 15: Robin 1000 Ledbeam - Dmx Chart

    5. Robin 1000 LEDBeam - DMX chart Version 1.3 Mode/Channel Value Function Type of control Pan (8 bit) 0-55 Pan movement by 450° proportional Pan Fine (16 bit) 0-55 Fine control of pan movement proportional Tilt (8bit) 0-55 Tilt movement by 270°...
  • Page 16 Mode/Channel Value Function Type of control Blue/Yellow fine (16 bit) - all zones 0-55 Fine blue/yellow LEDs saturation control proportional White (8 bit) - all zones If RGBW mode is selected: 13 10 0-55 White LEDs saturation control (0-100%) proportional If CMY mode is selected: No function White fine (16 bit) - all zones...
  • Page 17 Mode/Channel Value Function Type of control Green/Magenta fine (16 bit) - zone 3 0-55 Fine green/magenta LEDs saturation control proportional Blue/Yellow (8 bit) zone 3 0-55 Blue/yellow LEDs saturation control (0-100%) proportional Blue/Yellow (16 bit) zone 3 0-55 Fine blue/yellow LEDs saturation control) proportional White (8 bit) - zone 3 If RGBW mode is selected:...
  • Page 18 Mode/Channel Value Function Type of control Shutter/Strobe 0-3 Shutter closed step 3-63 Strobe effect from (zone 3 only) proportional slow--> fast 64-95 Strobe effect from (All zones together) proportional slow--> fast -------------- -------------- Set value on Virtual colour wheel 96- Zone effects+rainbow effects speed control, slow-->...
  • Page 19: Virtual Colour Wheel - Colour Mixing Chart

    5.1 Virtual colour wheel - colour mixing chart Robin 1000 LEDBeam - Virtual Colour Wheel (ver. 1.0) Scale* Virtual Colour Wheel Green Blue White 1-2 (White 2700K) 3 (White 2700K /Hal.mode/) 4-5 (White 3200K) 6 (White 3200K /Hal.mode/) 7-9 (White 4200K)
  • Page 20 Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 2...
  • Page 21 Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 3...
  • Page 22 Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 4...
  • Page 23: Led Zone Order

    Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White **** **** **** **** 248-255 (Rainbow+ zone effects) * Colour scale as an illustration only 5.2 LED zone order Page 5...
  • Page 24: Pan/Tilt Positions

    5.3 Pan/Tilt positions...
  • Page 25: Control Menu

    6. Control menu The Robin 1000 LEDBeam Light is equipped with the QVGA Robe touch screen with battery backup which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, test its vari- ous parts and lastly program it, if it has to be used in a stand-alone mode.
  • Page 26: Tab " Address

    Touch any part of the screen or press the [ENTER/Display On] button to display the initial screen with the cur- rent stored DMX address: Touch the green arrow at the bottom right corner of the screen or press the [ENTER/Display On] button to enter the "...
  • Page 27: Tab "Information

    MANet Settings - Use this menu to set parameters for MANet operation. MANet I/II Universe - The value of this item can be set in range 1-256. MANet Session ID - The value of this item can be set in range 1-32. 6.2 Tab "Information"...
  • Page 28: Tab "Personality

    6.3 Tab "Personality" User mode - The Robin 1000 LEDBeam allows you to recall up to 3 user settings. After switching the fixture on for the first time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing”...
  • Page 29 Blackout Settings - Use the menu if you need to close the light output under certain conditions which are described below Blackout DMC - Blackout during movement correction. Set this option On if you wish to close light output during the time when the head goes to its correct position, which has been changed by an external force.
  • Page 30: Tab "Manual Control

    Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3. Edit Program - Use the menu to create or to edit desired program. The Robin 1000 LEDBeam offers 3 free programs, each up to 100 steps.
  • Page 31: Tab "Service

    following prog. step - leaves menu without saving values There is a chart describing behaviour of items "Pan/Tilt Macro" and "P./T. Macro Speed". Pan/Tilt Macro 0 - 9 Disabled pan/tilt macro 0 - 3 Reserved 3 - 63 Figure of circle (from small to large) 64 - 95 Figure of horizontal eight (from small to large) 96 - 7...
  • Page 32: Rdm

    3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update.
  • Page 33: Wireless Dmx Operation

    ROBE_WIRELESS_UNLINK 8. Wireless DMX operation The Robin 1000 LEDBeam is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. The item " Wireless " from the menu "DMX Input" allows you to activate receiving of wireless DMX (Personal- ity-->...
  • Page 34: Error And Information Messages

    menu "DMX Input". To link the fixture with DMX transmitter. The fixture can be only linked with the transmitter by running the link procedure at DMX transmitter . After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Wireless State“ (Information -->Wireless State).
  • Page 35: Technical Specifications

    10. Technical Specifications Electrical Power supply:......electronic auto-ranging Input voltage range:....supply 100-240V, 50/60Hz Fuse:........T 8 A@230V Power consumption*:....650 W @230V (power factor=0,97, I=2.65A) *Allow for a deviation of +/-5% Optic Light source: 37 high power RGBW LED multichips 3 zones with individual colour control of each Typical Lumen Maintenance: 70% @ 60,000 hours LED life expectancy: 60.000 hours RGBW colour mixing +CTC...
  • Page 36 Wireless DMX/RDM module Compliance with USITT DMX-512 (1986 & 1990) and 512-A Full DMX fidelity and frame integrity Auto sensing of DMX frame rate and frame size <5ms DMX latency Operational frequency range of 2402-2480 MHz Producer: LumenRadio Connection DMX data in/out: Locking 3-pin and 5-pin XLR Ethernet: RJ45 Power In: Chassis connector Neutrik PowerCon, A-type, NAC3MPA Power cord included...
  • Page 37 Accessories Omega holder (No.99010420)........2 pcs Photometric charts...
  • Page 39: Maintenance And Cleaning

    11. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.
