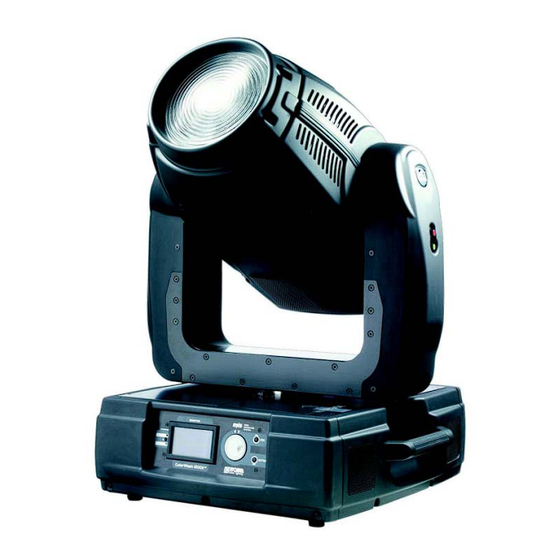

Robe ColorWash 1200E AT Service Manual
  1. Manuals
  2. Brands
  3. Robe Manuals
  4. Flood Light
  5. ColorWash 1200E AT
  6. Service manual

Robe ColorWash 1200E AT Service Manual

Hide thumbs Also See for ColorWash 1200E AT:

Advertisement

Quick Links

Download this manual See also: User Manual
Service manual
ColorWash 1200E AT
Exploded Diagrams
Circuit Diagrams
Wiring Diagrams
Order Numbers
Version: A

Advertisement

loading
Need help?

Need help?

Do you have a question about the ColorWash 1200E AT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robe ColorWash 1200E AT

Summary of Contents for Robe ColorWash 1200E AT

  • Page 1 Service manual ColorWash 1200E AT Exploded Diagrams Circuit Diagrams Wiring Diagrams Order Numbers Version: A...
  • Page 2 230V/50Hz T10A 23V/5A T20A@120V 208V 120V 10.5V/5A H05V-K 1.5BU T10A WF80700 100V (100-250V/50-60Hz) T20A@120V H05V-K 1BU 10.5V/5A 0404179 PRODUCT: ColorWash 1200E AT H05V-K 1GNYE TITLE: POWER SECTION H05V-K 1.5GNYE WIRING DIAGRAM DOCUMENT: VERSION: A DATE: 14.2.2005 SHEET: 1 OF 9...
  • Page 3 1H21 3H15 4H15 EZ1051 1H16 4H17 2H16 3H17 J1 H20 3H16 2H17 3H20 1H17 2H20 HAL506 PRODUCT: ColorWash 1200E AT 1H20 MAG-4A PCB8 TITLE: BASIC BLOCK WIRING DIAGRAM PCB5 DOCUMENT: EZ1071 PCB4 VERSION: A DATE: 14.2.2005 SHEET: 2 OF 9...
  • Page 4 H10.3 1H30 2H30 3H30 H7.3 1H31 2H31 3H31 H6.3 1H32 Fan4 2H32 KDE1209PTB1-6AF 3H32 H4.3 Fan3 KDE1209PTB1-6AF H21.3 H20.3 PRODUCT: ColorWash 1200E AT TITLE: HEAD BLOCK 1 Fan8 WIRING DIAGRAM KDE1208PTB1-6AF DOCUMENT: VERSION: A DATE: 14.2.2005 SHEET: 3 OF 9...
  • Page 5 H9.3 3H90 CONNECTOR 4H90 HAL506 HAL506 BARN DOOR H10.3 RDM24 YEM24 BKM24 Fan5 GM1204PFB1-8AF RDM27 YEM27 BKM27 Fan6 GM1204PFB1-8AF PRODUCT: ColorWash 1200E AT H24.3 H27.3 TITLE: HEAD BLOCK 2 WIRING DIAGRAM DOCUMENT: VERSION: A DATE: 14.2.2005 SHEET: 4 OF 9...
  • Page 6 4M14 4H57 6M14 J45 J46 6M14 PCB15 CONVERSION FILTER 1M15 3M15 4M15 6M15 MAG17 PCB17 1H90 2H90 3H90 4H90 HAL506 HAL506 PRODUCT: ColorWash 1200E AT TITLE: HEAD BLOCK 3 WIRING DIAGRAM DOCUMENT: VERSION: A DATE: 14.2.2005 SHEET: 5 OF 9...
  • Page 7 R124 TURBINE FAN 1 R114 R125 1k 1k CMYK-1 560R +12V IC16 7805 10MHz R108 12V DC 100n PRODUCT: ColorWash 1200E AT 100n R107 PBL3772 TITLE: EZ1091 - Part 1 150n 150n 220p 4x2R2 30V DC 1G/35 1G/35 1G/35 1G/35...
  • Page 8 IN FAN2 R66 10k 560R CMYK-2 10MHz R48 1K PBL3772 220p 220p 4x2R2 150n 150n 220p R52 R51 PRODUCT: ColorWash 1200E AT TITLE: EZ1091 - Part 2 EZ1091 E1 CIRCUIT DIAGRAM DOCUMENT: VERSION: A DATE: 14.2.2005 SHEET: 7 OF 9...
  • Page 9 RC7/RX R122 R31 R33 24C64 R39 R41 OUT 12V PIC18C242 R123 220R 220R 50Hz 1N4007 IC10 7805 PRODUCT: ColorWash 1200E AT 100n TITLE: EZ1004 E OUT 12V IN 11V KBU8J C50 100n IN 11V KBU8J 100n ARK500/2 CIRCUIT DIAGRAM DOCUMENT:...
  • Page 10 PE65745 RJ 45 EESK EECS EEDO 100n EEDI 24R9 RXD+ RXD- TXD+ TXD- MEMR 24R9 C1 15p MEMW RESET PRODUCT: ColorWash 1200E AT 20MHz C2 15p TITLE: EZ1023 CIRCUIT DIAGRAM DOCUMENT: 4k99 VERSION: A DATE: 14.2.2005 SHEET: 9 OF 9...
  • Page 11 15 20 7 22 11 19 5 13 4 6 11 22 7 PRODUCT: ColorWash 1200E AT TITLE: Covers DOCUMENT: 99010883 VERSION: A DATE: 14.10.2004 SHEET: 1 OF 20...
  • Page 12 PRODUCT: ColorWash 1200E AT TITLE: Assembly of head DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 2 OF 20...
  • Page 13 24 33 40 11 35 43 43 30 36 17 40 21 34 43 15 16 46 19 34 43 15 32 51 45 40 PRODUCT: ColorWash 1200E AT TITLE: Holder of fans DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET:...
  • Page 14 11 8 16 25 26 18 24 19 22 12 21 13 20 19 24 19 24 PRODUCT: ColorWash 1200E AT TITLE: Bearing of reflector DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 4 OF 20...
  • Page 15 PRODUCT: ColorWash 1200E AT TITLE: Cooling modules DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 5 OF 20...
  • Page 16 29 23 24 24 31 30 28 13 10 17 26 15 16 11 6 22 34 36 PRODUCT: ColorWash 1200E AT TITLE: CMY-module DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 6 OF 20 25 3 24...
  • Page 17 35 24 35 34 29 35 25 35 34 35 33 21 32 25 35 PRODUCT: ColorWash 1200E AT TITLE: Color module DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 7 OF 20...
  • Page 18 PRODUCT: ColorWash 1200E AT TITLE: Wheel Color 6+1 assembled DOCUMENT: 99010566 VERSION: A DATE: 14.10.2004 SHEET: 8 OF 20...
  • Page 19 12 13 11 PRODUCT: ColorWash 1200E AT TITLE: Wheel Color 6+1 B assembled DOCUMENT: 99010863 VERSION: A DATE: 14.10.2004 SHEET: 9 OF 20...
  • Page 20 34 40 38 25 42 5 14 31 39 6 13 36 39 8 28 18 PRODUCT: ColorWash 1200E AT TITLE: Module Zoom part 1 DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 10 OF 20...
  • Page 21 PRODUCT: ColorWash 1200E AT TITLE: Zoom fresne l A - B DOCUMENT: 99010869,99010870 VERSION: A DATE: 14.10.2004 SHEET: 11 OF 20...
  • Page 22 25 4 11 19 9 10 18 7 22 PRODUCT: ColorWash 1200E AT TITLE: Module Zoom part 2 DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 12 OF 20...
  • Page 23 15 16 15 16 15 16 PRODUCT: ColorWash 1200E AT TITLE: Holder of electronic DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 13 OF 20...
  • Page 24 21 9 3 17 10 11 10 23 5 10 11 10 23 4 11 10 PRODUCT: ColorWash 1200E AT TITLE: Holder of objective DOCUMENT: 99010880 VERSION: A DATE: 14.10.2004 SHEET: 14 OF 20...
  • Page 25 PRODUCT: ColorWash 1200E AT TITLE: Module of Fresnel D200 DOCUMENT: 99010877 VERSION: A DATE: 14.10.2004 SHEET: 15 OF 20...
  • Page 26 PRODUCT: ColorWash 1200E AT TITLE: Module of wide-angle lens D200 DOCUMENT: 99010879 VERSION: A DATE: 14.10.2004 SHEET: 16 OF 20...
  • Page 27 48 51 56 55 56 51 54 33 50 28 52 37 53 20 32 54 29 39 47 17 37 5 52 28 50 PRODUCT: ColorWash 1200E AT TITLE: Arm of head DOCUMENT: 99010670 VERSION: A DATE: 14.10.2004 SHEET:...
  • Page 28 38 10 24 34 36 56 61 63 23 51 20 29 61 40 52 59 PRODUCT: ColorWash 1200E AT 55 19 48 TITLE: Axe "X" DOCUMENT: 99010689 VERSION: A DATE: 14.10.2004 SHEET: 18 OF 20...
  • Page 29 29 29 29 29 24 32 7 12 32 31 33 21 30 30 30 13 14 5 19 PRODUCT: ColorWash 1200E AT TITLE: Front and rear panel of base 120V/230V DOCUMENT: 99010882 VERSION: A DATE: 14.10.2004 SHEET: 19 OF 20...
  • Page 30 28 45 44 41 45 48 22 45 41 35 49 21 29 37 44 PRODUCT: ColorWash 1200E AT TITLE: Base - 120V/230V version DOCUMENT: 99010882 VERSION: A DATE: 14.10.2004 SHEET: 20 OF 20...
