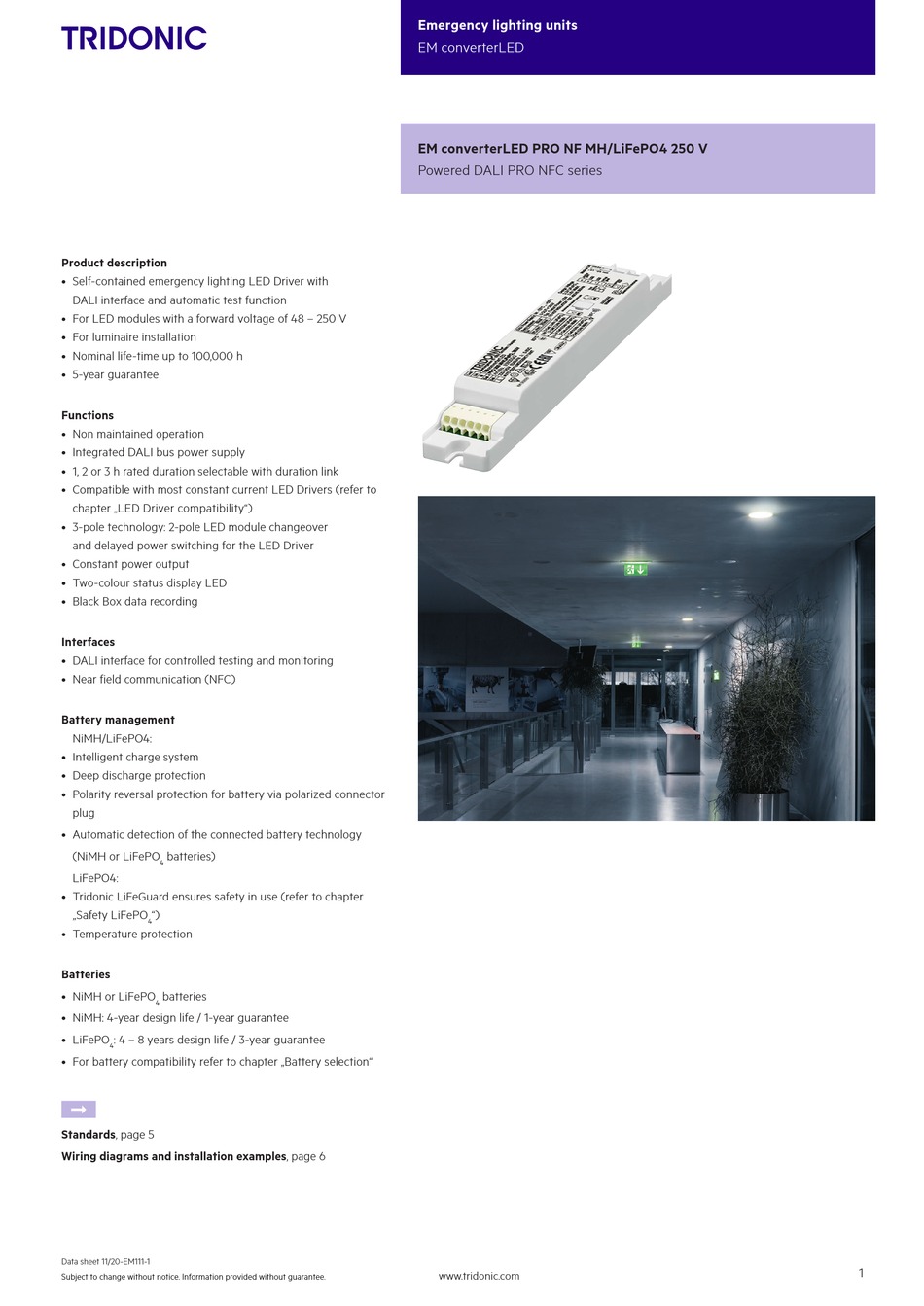

Product description

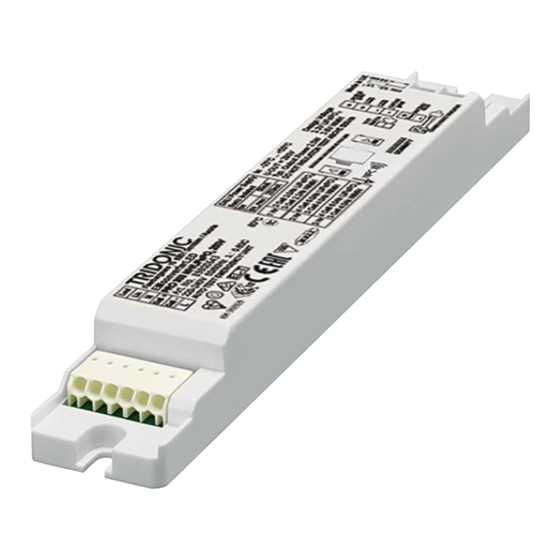

• Self-contained emergency lighting LED Driver with
DALI interface and automatic test function
• For LED modules with a forward voltage of 48 – 250 V
• For luminaire installation
• Nominal life-time up to 100,000 h
• 5-year guarantee
Functions
• Non maintained operation
• Integrated DALI bus power supply
• 1, 2 or 3 h rated duration selectable with duration link
• Compatible with most constant current LED Drivers (refer to
chapter „LED Driver compatibility")
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED Driver
• Constant power output
• Two-colour status display LED
• Black Box data recording
Interfaces
• DALI interface for controlled testing and monitoring
• Near field communication (NFC)
Battery management
NiMH/LiFePO4:
• Intelligent charge system
• Deep discharge protection
• Polarity reversal protection for battery via polarized connector
plug
• Automatic detection of the connected battery technology
(NiMH or LiFePO
batteries)
4
LiFePO4:
• Tridonic LiFeGuard ensures safety in use (refer to chapter
„Safety LiFePO
")
4
• Temperature protection
Batteries
• NiMH or LiFePO
batteries
4
• NiMH: 4-year design life / 1-year guarantee
• LiFePO
: 4 – 8 years design life / 3-year guarantee
4
• For battery compatibility refer to chapter „Battery selection"
È
Standards, page 5
Wiring diagrams and installation examples, page 6
Data sheet 11/20-EM111-1
Subject to change without notice. Information provided without guarantee.
Emergency lighting units
EM converterLED
EM converterLED PRO NF MH/LiFePO4 250 V
Powered DALI PRO NFC series
www.tridonic.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tridonic EM converterLED PRO NF MH/LiFePO4 250 V
Summary of Contents for Tridonic EM converterLED PRO NF MH/LiFePO4 250 V
- Page 1 • Polarity reversal protection for battery via polarized connector plug • Automatic detection of the connected battery technology (NiMH or LiFePO batteries) LiFePO4: • Tridonic LiFeGuard ensures safety in use (refer to chapter „Safety LiFePO “) • Temperature protection Batteries • NiMH or LiFePO batteries •...
- Page 2 Emergency lighting units EM converterLED EM converterLED PRO NF MH/LiFePO4 250 V Powered DALI PRO NFC series Technical data Rated supply voltage 220 – 240 V AC voltage range 198 – 264 V Mains frequency 50 / 60 Hz LED module forward voltage range 48 –...
-
Page 3: Product Description
LED EM bi-colour, 0.3 m CON 89800274 25 pc(s). 200 pc(s). 0.005 kg LED EM bi-colour, high brightness HO 0.3 m CON 89800276 25 pc(s). 200 pc(s). 0.005 kg Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 4 • 2-pole plug connection for batteries and 3-pole plug connection for LED Driver Ordering data Packaging, Packaging, Weight Type Article number carton per pc. CONNECTION CABLE NiMH 500mm 28002462 10 pc(s). 200 pc(s). 0.015 kg Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 5: Installation & Wiring
56,000 h EM converterLED PRO 305 65 °C 70 °C 75 °C 80 °C MH/LiFePO4 250V life-time > 100,000 h > 100,000 h 78,000 h 55,000 h Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 6 Neutral max. 150 W in operation – – One LED module is operated in emergency mode. LED Module All LED modules are operated in mains mode. – Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 7 When using an EM converterLED in combination with a NiMH battery, order the CONNECTION CABLE NiMH 500mm seperately. LiFePO : Direct connection LiFePO : Connection with extension cable EM converterLED EM converterLED Battery Battery Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 8: Mechanical Values
EM converterLED leads to the LED module is added to the length of the leads from the LED Driver to the EM converterLED module when considering the max. permitted lead length of the LED Driver. Keep the leads always as short as possible. Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee. -
Page 9: Electrical Values
When using a non-SELV LED Driver insulate the battery, LED, test switch and indicator LED in the luminaire according to the U-OUT rating of the LED Driver. Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 10 1,700 – 1,820 mA battery discharge current (tolerance) LED current at nominal battery voltage and min. battery discharge current LED current at nominal battery voltage and max. battery discharge current Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 11 Slow flashing red Battery failure antennas: test / Battery is defect or deep discharged/ (1 sec on – 1 sec off) www.tridonic.com/nfc-readers. Incorrect battery voltage Fast flashing red Charging failure Incorrect charging current NFC is complied with ISO/IEC 15963 standard.
- Page 12 After a mains reset the EM converterLED PRO exits the Rest Mode. Rest Mode and Inhibit Mode can both be disabled by sending the RE-LIGHT/ RESET INHIBIT command. Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 13: Battery Data
The battery will be charged below 0. 9 V. The EM converterLED will indicate a battery fault. The emergency lighting LED Driver will recharge the battery normally after running the test of 61347-2-7 CL 22.3 (abnormal operating conditions). Data sheet 11/20-EM111-1 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 14 3. 9 V. A discharge of the battery is still possible after the protection circuit was at +5 °C to +25 °C triggered to guarantee emergency operation. Only use Tridonic batteries. 8.6.3 Short-circuit protection Comply with UN 38.3 and IEC 62133 (safety testing) protected against over...
- Page 15 EM converterLED 8.6.4 Overtemperature protection 9.5 Additional information Additional technical information at www.tridonic.com → Technical Data The battery is protected against temporary thermal overheating. If the tempera- Guarantee conditions at www.tridonic.com → Services ture limit is exceeded the further charging of the battery is no longer possible.
