Product description
• Self-contained emergency lighting LED Driver with self-test
function
• Non maintained operation
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC
• For luminaire installation
• Nominal life-time up to 100,000 h
• 5-year guarantee
Functions
• 1, 2 or 3 h rated duration selectable with duration link
• Constant power output
Self-test:
• Weekly function test
• Yearly duration test
Driver compatibility
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED Driver
• For further information see chapter „LED Driver compatibility"
Battery management
• Intelligent charge system
• Deep discharge protection
• Polarity reversal protection for battery
Batteries
• NiCd or NiMH batteries
• 4-year design life
• 1-year guarantee
• For battery compatibility refer to chapter „Battery selection"
È
Standards, page 4
Wiring diagrams and installation examples, page 5
Data sheet 11/20-EM098-7
Subject to change without notice. Information provided without guarantee.
Emergency lighting units

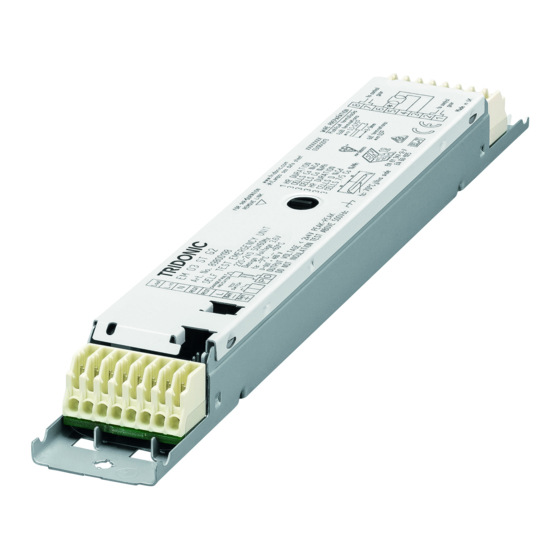

EM converterLED
EM converterLED ST NiCd/NiMH 50 V
SELFTEST series
www.tridonic.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SELFTEST Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tridonic SELFTEST Series

Summary of Contents for Tridonic SELFTEST Series

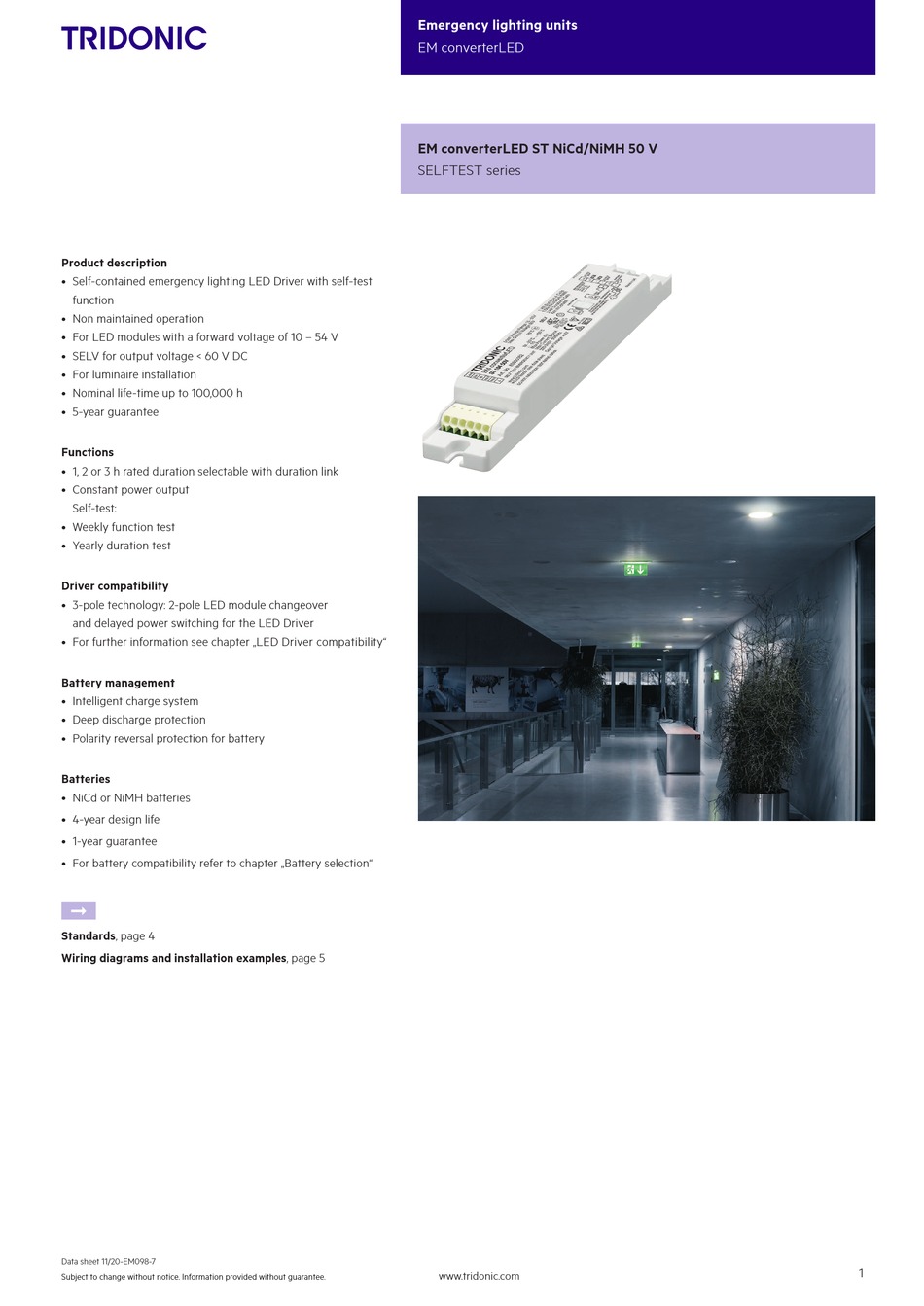

  • Page 1 Emergency lighting units EM converterLED EM converterLED ST NiCd/NiMH 50 V SELFTEST series Product description • Self-contained emergency lighting LED Driver with self-test function • Non maintained operation • For LED modules with a forward voltage of 10 – 54 V •...

  • Page 2: Specific Technical Data

    Emergency lighting units EM converterLED EM converterLED ST NiCd/NiMH 50 V SELFTEST series Technical data Rated supply voltage 220 – 240 V AC voltage range 198 – 264 V Mains frequency 50 / 60 Hz LED module forward voltage range 10 –...

  • Page 3: Product Description

    LED EM bi-colour, 0.3 m CON 89800274 25 pc(s). 200 pc(s). 0.005 kg LED EM bi-colour, high brightness HO 0.3 m CON 89800276 25 pc(s). 200 pc(s). 0.005 kg Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 4: Installation & Wiring

    If the measured tc temperature is approx. 5 K below tc max., ta tempera- ture should be checked and eventually critical components (e.g. ELCAP) measured. Detailed information on request. Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 5 Neutral max. 150 W in operation – – LED Module One LED module is operated in emergency mode. All LED modules are operated in mains mode. – Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 6 • Maximum lead length on the LED terminals is 3 m. For a good EMC performance keep the LED wiring as short as possible. • The secondary wires (LED module) should be routed in parallel to ensure good EMC performance. Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 7: Mechanical Values

    When using a non-SELV LED Driver insulate the battery, LED, test switch and indicator LED in the luminaire according to the U-OUT rating of the LED Driver. Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 8 800 – 860 mA battery discharge current (tolerance) LED current at nominal battery voltage and min. battery discharge current LED current at nominal battery voltage and max. battery discharge current Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 9 200 ms < T < 1 s • Execute function test as long as switch pressed: press > 1 s • Reset selftest timer (adjust local timing): press > 10 s Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 10 1,000 to 2,000 ms to the terminals marked as Rest to send the RE-LIGHT/ RESET INHIBIT command. Pulse/Mode Standby Emergency Rest 150 – 1,000 ms Inhibit Rest – 1,000 – 2,000 ms Cancel inhibit – Re-light Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 11: Battery Data

    The battery will be charged below 0. 9 V. The EM converterLED will indicate a battery fault. The emergency lighting LED Driver will recharge the battery normally after running the test of 61347-2-7 CL 22.3 (abnormal operating conditions). Data sheet 11/20-EM098-7 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 12 8.3 Additional information Additional technical information at www.tridonic.com → Technical Data Guarantee conditions at www.tridonic.com → Services Life-time declarations are informative and represent no warranty claim.
