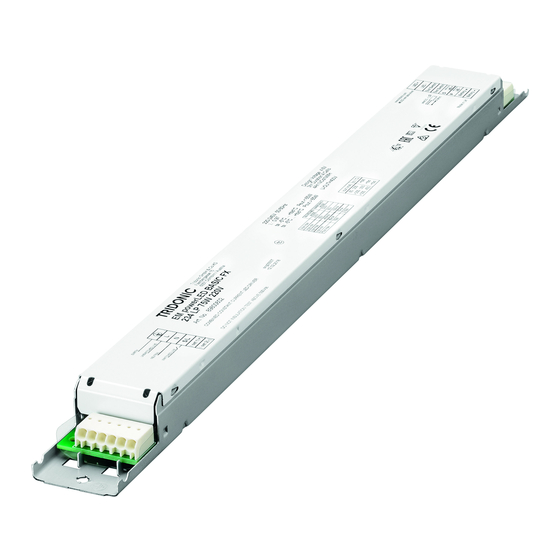

Product description
• Fixed output LED Driver for mains operation
• Emergency lighting LED Driver with manual test function
• For self-contained emergency lighting
• For LED modules with a forward voltage of 50 – 220 V
• For luminaire installation
• Low profile casing (21 x 30 mm)
• 5 years guarantee
Properties
• 6 – 75 W output power
• Constant current LED operation
• Adjustable output current between 80 and 400 mA via ready-
2mains Programmer or I-SELECT 2 plugs
• Integrated emergency lighting unit
• 1 or 3 hr rated duration
• Automatic shutdown of output if LED load is out of range
• Green charge status display LED
• Electronic multi-level charge system
• Polarity reversal protection for battery
• Deep discharge protection
• Short-circuit-proof battery connection
Batteries
• High-temperature cells
• NiCd or NiMH batteries
• D, Cs or LA cells
• 4-year design life
• 1-year guarantee
• For battery compatibility refer to table „Battery selection"
È
Standards, page 6
Wiring diagrams and installation examples, page 6
Data sheet 12/20-EM083-11
Subject to change without notice. Information provided without guarantee.
Emergency lighting units
EM powerLED
EM powerLED BASIC FX lp 75 W
Combined emergency lighting LED Driver
www.tridonic.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM powerLED BASIC FX lp 75 W and is the answer not in the manual?

Questions and answers

Summary of Contents for Tridonic EM powerLED BASIC FX lp 75 W

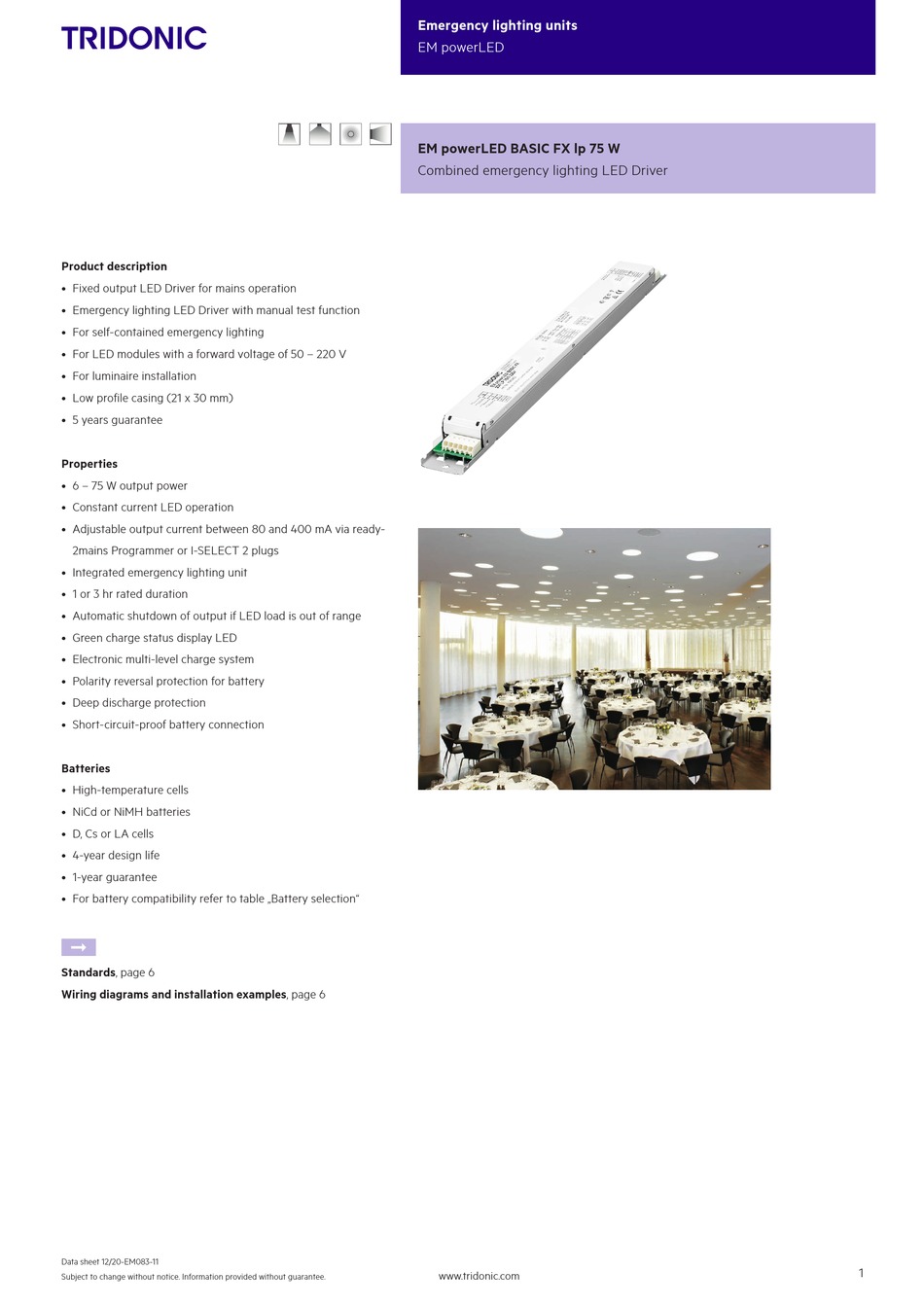

  • Page 1 Emergency lighting units EM powerLED EM powerLED BASIC FX lp 75 W Combined emergency lighting LED Driver Product description • Fixed output LED Driver for mains operation • Emergency lighting LED Driver with manual test function • For self-contained emergency lighting •...
  • Page 2: Technical Data

    Emergency lighting units EM powerLED EM powerLED BASIC FX lp 75 W Combined emergency lighting LED Driver Technical data Rated supply voltage 220 – 240 V AC voltage range 198 – 264 V Mains frequency 50 / 60 Hz side fixing feature 380 mA Typ.
  • Page 3: Specific Technical Data

    The table only lists a number of possible operating points but does not cover each single point. The output current can be set within the total value range in 1-mA-steps. Output current is mean value. Output voltage range defined in normal operation. Ambient temperature range ta defined in normal operation Not compatible with I-select (generation 1). Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 4: Product Description

    Article number carton per pc. LED EM green 89899605 25 pc(s). 200 pc(s). 0.011 kg LED EM green, ultra high brightness 89899756 25 pc(s). 200 pc(s). 0.012 kg Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 5 I-SELECT 2 PLUG 400MA BL 28001112 Blue 0400 mA 400 mA 12.50 kΩ 10 pc(s). 0.001 kg I-SELECT 2 PLUG MAX BL 28001099 Blue 0.00 kΩ 10 pc(s). 0.001 kg Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 6: Thermal Data

    Secondary switching of LEDs is not allowed and may cause damage to the LEDs. The hot plug-in of LEDs during normal operation may result in high current peaks. Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 7: Mechanical Data

    The length of LED leads must not be exceeded. The output current depends on the forward voltage and the tolerance of the LED modules. Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 8: Electrical Values

    • • Represents double or reinforced insulation Insulate the battery, LED, test switch and indicator LED in the luminaire according to the U-OUT rating of the LED Driver. Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 9 850 – 960 mA battery discharge current (tolerance) LED current at nominal battery voltage and min. battery discharge current LED current at nominal battery voltage and max. battery discharge current Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 10 Load [ ] 100 mA 250 mA 400 mA 100 % load corresponds to the max. output power (full load) according to the table on page 2. Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 11: Overload Protection

    If the forward voltage is out of range the unit switches to shut down mode. Resistors for the main output current values can be ordered from Tridonic After elimination of the short circuit a mains reset (SL off/on) is necessary.
  • Page 12: Battery Data

    105 mA 195 mA Charging current Fast recharge 105 mA 195 mA Trickle charge 70 mA 105 mA Discharge current 850 – 960 mA 850 – 960 mA Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 13 +45 °C Max. short term temperature (reduced life-time) 70 °C Max. number discharge cycles 4 cycles per year plus 4 cycles during comissioning Max. storage time 6 months Data sheet 12/20-EM083-11 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 14: Additional Information

    The devices have to be acclimatised to the specified temperature range (ta) before they can be operated. 9.4 Additional information Additional technical information at www.tridonic.com → Technical Data Guarantee conditions at www.tridonic.com → Services Life-time declarations are informative and represent no warranty claim.
