Product description
• Bridge for converting analogue signals into PLC for DC-String
dimming
• For connecting dimmable DC-String LMI LED Driver in 0... 1 0 V
control systems
• For a maximum of 20 DC-String LMI LED Driver
• On/off switching via DC-STR UNV FO Driver
• For the "group dimming" functionality by using
standard 0... 1 0 V dimmers
• Class 2 control device
• Dry and damp location
• Casing: polycarbonate, white
• 5-year guarantee
È
Wiring diagrams and installation examples, page 3
Data sheet 09/18-CO104-2
Subject to change without notice.
LED Drivers
DC-String

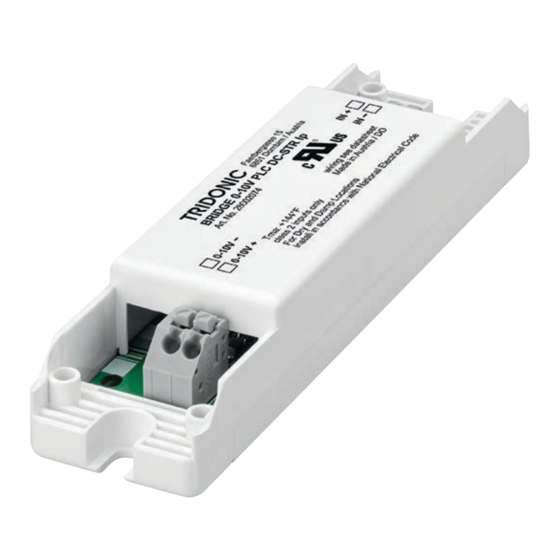

BRIDGE 0-10V PLC DC STR lp
Bridge to convert 0... 1 0 V into power line communication for DC-String
system
www.tridonic.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tridonic BRIDGE 0-10V PLC DC STR lp
Summary of Contents for Tridonic BRIDGE 0-10V PLC DC STR lp
- Page 1 LED Drivers DC-String BRIDGE 0-10V PLC DC STR lp Bridge to convert 0... 1 0 V into power line communication for DC-String system Product description • Bridge for converting analogue signals into PLC for DC-String dimming • For connecting dimmable DC-String LMI LED Driver in 0... 1 0 V control systems •...
- Page 2 Ambient temperature ta (at life-time 50,000 h) -25 ... +60 °C Max. casing temperature tc 70 °C Dimensions L x W x H 30 x 21 x 120 mm Only compatible with Tridonic‘s 48 V DC-String system. Ordering data Type Article number Packaging, carton Weight per pc.
- Page 3 3.5 Hot plug-in BRIDGE is suitable for hot plug-in. Devices will be switched off shortly for fadetime configuration at hot plug-in. Maximum number of LMI LED Drivers is limited by 20. Data sheet 09/18-CO104-2 www.tridonic.com Subject to change without notice.
- Page 4 Voltage range dimming 1 – 10 V Input voltage < 1 V off (stand-by) Additional technical information at www.tridonic.com → Technical Data Input voltage > 10 V max. dimming level Guarantee conditions at www.tridonic.com → Services Life-time declarations are informative and represent no warranty claim.
