Power Wiring with Jumper Removed
If there is a need to control separate heating and cooling systems, remove the jumper bridging Rc and Rh. Once removed, Rc powers outputs DUO1,
DO2, DO3, DUO6 and DUO7, while Rh powers DO4 and DO5.

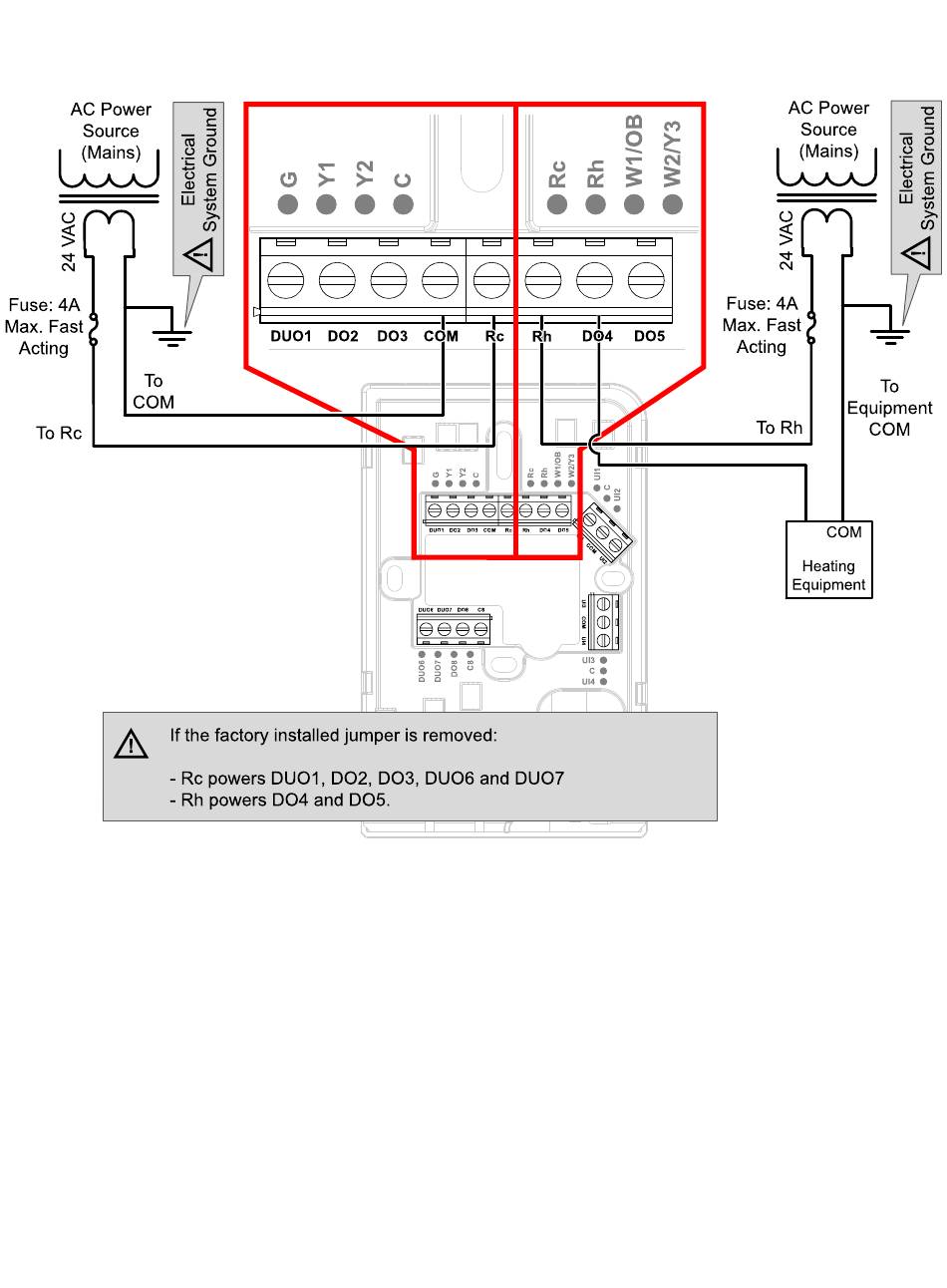

Figure 6:
Power wiring with jumper removed
