Installation and Operational Instructions for
®
®
EAS
-Compact
Please read these Operational Instructions carefully and follow them accordingly!
Ignoring these Instructions may lead to malfunctions or to clutch failure, resulting in damage to other parts.
Contents:
Page 1: - Contents
®
®
overload, Type 490. _ _ 4.2
- Clutch Illustrations
®
®
- Clutch Illustrations
®
®
- Clutch Illustrations
®
®
overload torsionally rigid, Type 496. _ _ 4.2
- Clutch Illustrations
Page 8: - Technical Data
Page 10: - Installation of the Output Elements
- Joining Both Clutch Parts EAS
Page 13: - Permitted Shaft Misalignments Types 494._ _4._ and 496._ _4.2
- Coupling Alignment Types 494._ _4._ and 496._ _4.2
Page 17: - Malfunctions / Breakdowns Type 494._ _4._ Size 4
Page 18: - Malfunctions / Breakdowns Type 494._ _4._ Size 4
Page 19: - Malfunctions / Breakdowns Type 494._ _4.2 Size 5
Page 20: - Malfunctions / Breakdowns Type 494._ _4.2 Size 5
Page 21: - Malfunctions / Breakdowns Type 496._ _4.2
25/01/2013 GC/NH/GH/SU
Page 1 of 21

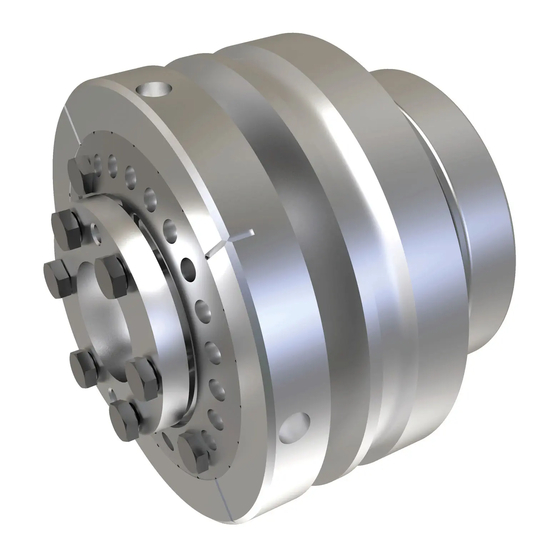

overload clutch,
®
®
®
®
-Compact
Type 494._ _4.2 Size 5
®
®
Type 496._ _4.2
Chr. Mayr GmbH + Co. KG
Eichenstraße 1
D-87665 Mauerstetten
Germany
Type 49_._ _4._ Sizes 4 and 5
(B.4.14.6.GB)
Tel.: +49 8341 804-0
Fax: +49 8341 804-421
www.mayr.com
E-Mail:
info@mayr.com
