Installation and Operational Instructions for
®
EAS -lastic clutches Type 437._ _ _.0
Please read these Operational Instructions carefully and follow them accordingly!
Ignoring these Instructions may lead to malfunctions or to clutch failure, resulting in damage to other parts.
Manufacturer's Declaration
This product is intended for installation in a machine or system, based on the machine directive 98/37/EC.
It is forbidden to start use of the product until the machine or system into which it should be built is operating in accordance with the EC
directives.
Safety Guidelines
These Installation and Operational Instructions (I + 0) are part of the clutch delivery.
Please keep them handy and near to the clutch at all times.
Danger!
This warning applies if:
the EAS
the relevant standards for safety and / or installation conditions are ignored.
User-implemented protective measures
Cover all moving parts to protect against seizure, dust or foreign body impact.
The clutch may not be put into operation without a limit switch unless mayr
otherwise.
To prevent injury or damage, only professionals and specialists should work on the devices, following the
relevant standards and directives. Please read the Installation and Operational Instructions carefully before
installation and initial operation of the device.
Warning:
Without a conformity inspection, this product is not suitable for use in areas where there is a high danger of explosion. This statement is
based on directive 94/9 EC (ATEX directive).
Safety and Guideline Signs
Danger!
Danger of injury to personnel and damage to
machines.
Parts List
® ® ® ®
(Only use mayr original parts)
Item Name
® 1)
1 EAS -clutch
1.1 Switching element
2 Claw element
2.1 Fixing screws
3 Rubber buffer
4
Pocket element
2)
5
Limit switch
1)
Has its own Installation and Operational
Instructions
2) Is not a standard part of the delivery.
23/05/2006 K/TK/GC/RJ
Page 1 of 3
®
-clutches are modified.
These Safety Regulations are user hints only and may not be complete!
Chr. Mayr GmbH + Co. KG
Eichenstraße 1
87665 Mauerstetten
Germany
®
has been contacted and has agreed
z
4 3 2 2.1 1

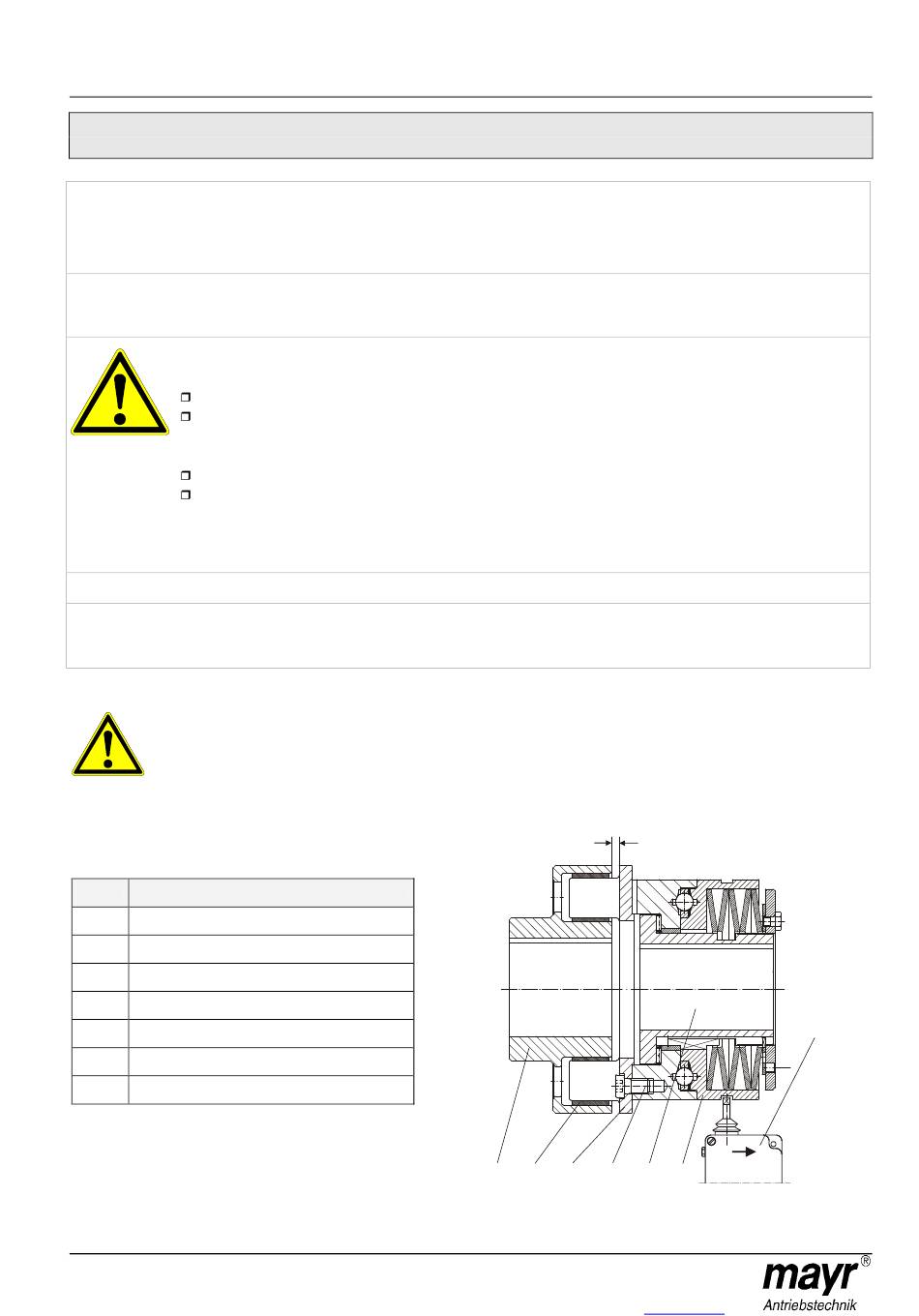

Fig. 1: Size 0-5 Type 437._ 00.0
Tel.: 08341 / 804-0
Fax: 08341 / 804-421
http://www.mayr.de
eMail: info@mayr.de
(B.4.11.GB)
5
Switching
1.1
direction
