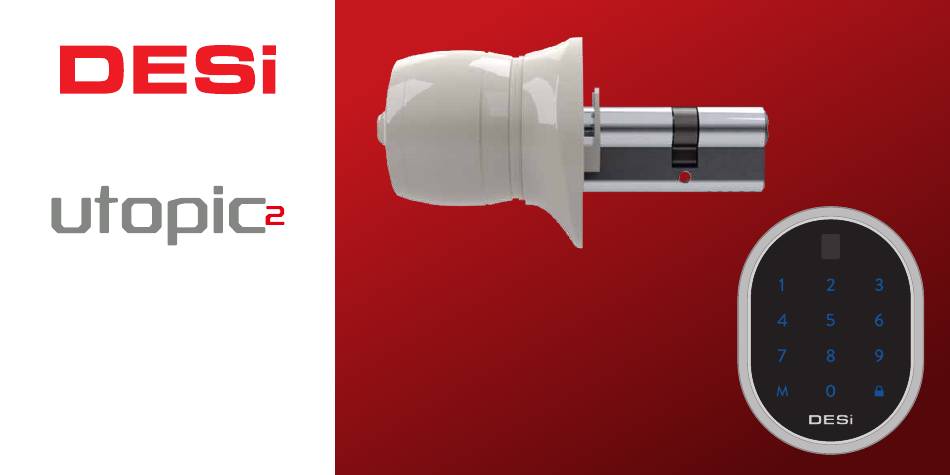

- Page 1 Wireless Motorized Cylinder with Wireless Keypad USER MANUAL UKC 60 / UKBC 60 Images on this manual are for referance only.
- Page 2 We would like to thank you for choosing this patented product. We hope you to enjoy it. DESi Alarm and Security System Inc. 1. GENERAL INFORMATIONS and WARNINGS - For emergancy conditions, we recommend you to put the keys to an accessible place (like car, bag etc.) - If there is any problem with door or locking mechanism, first of all, those problems need to be solved.
- Page 3 5x 1,5 V AA size Alkaline or Lithium batteries. 1.2. Box Content (may vary according to model number) According to tests done in DESi labratories, battery life of 1x Wireless Motorized Cylinder (with keys) the device is measured as follows: 1x Wireless Keypad 2,5 years standby or 10.000 operations (locking or...
- Page 4 Handle 2. PARTS OF WIRELESS MOTORIZED CYLINDER and INSTALLATION Handle Screw Cylinder Metal Extending Parts (used if needed) The hole Hex Screw for hex key DEMOUNTING OF MOTOR AND CYLINDER - Open “handle screw” and remove the handle by pulling. - Remove the batteries.
- Page 5 Touch Buttons Display EXTENDING INSIDE PART 26 10 OF THE CYLINDER (if needed) Menu If the door thickness is not Button suitable to the cylinder of the device, inside part of the (Back Cover) cylinder may be extended up 26 10 to 6 mm by 2 mm steps.
- Page 6 2.1. Installation of Motorized Cylinder This is the easiest installation. It is suitable for all kind of doors. 1.STEP 2. STEP That’s Remove Install existing motorized cylinder. cylinder and tighten the screw In some security doors, even if you remove cylinder screw, you cannot remove cylinder due to cramped installation of cylinder defender.
- Page 7 3. ADMINISTRATION ACTIONS / SETTINGS FOR KEYPAD Two different 5 digit passwords may be defined to the keypad; 1 master, 1 user. Both of the passwords can be use to unlock and open. For settings, the master password need to be entered. Default master password is “12345". User password is not set.
- Page 8 3.3. Enrolling Mobile Device (for UKBC 80 only) Search “Desi Utopic” on stores to download and install mobile application. After installation, run the app, choose desired language and define a password. You can disable/enable password protection or change password later.
- Page 9 3.4. Clearing All Mobile Devices (for UKBC 80 only) - Wake the keypad up by putting your palm to the touch keys and than touch to “M” button. “A” appears on the display. - Enter 5 digit master password. After display animation, touch to “M” button again. “b” appears on the display. - Touch to “4"...
- Page 10 4. SETTINGS FOR MOTORIZED KNOB 4.1. Enrolling Wireless Controllers to the Motorized Knob - Wake the keypad up by putting your palm to the touch keys and than touch to “M” button. “A” appears on the display. - Enter 5 digit master password. After display animation, touch to “6” button. The knob will give a long (5 sec) and a short warning tone one after the other.
- Page 11 4.2. Deleting All Controllers - Wake the keypad up by putting your palm to the touch keys and than touch to “M” button. “A” appears on the display. - Enter 5 digit master password. After display animation, touch to “7” button. “d” will be displayed. - To confirm, touch to lock button.
- Page 12 4.5. Reporting The Number of Enrolled Controllers - Wake the keypad up by putting your palm to the touch keys and than touch to “M” button. “A” appears on the display. - Enter 5 digit master password. After display animation, touch to “8” button. The knob reports number of enrolled controllers as warning signals.
- Page 13 4.8. Adjusting Semi-Automatic Working - Wake the keypad up by putting your palm to the touch keys and than touch to “M” button. “A” appears on the display. - Enter 5 digit master password. After display animation, touch to “5” button. “O” or “C” will be displayed. - Toggle between “O”...
- Page 14 To shift the motorized cylinder to night mode: - Close the door and turn the knob through locking way. The motorized cylinder will lock the door one turn. - Turn the knob again through locking way. It will lock all the turns. In this way, the motorized cylinder will shift to Night Mode.
-
Page 15: Maintenance
6. MAINTENANCE You can clean the surfaces with soft fabric. Do not use water or corrosive chemicals. Do not touch to electronic parts of the device with a conducting metal or sharp object. 6.1. Replacing Batteries of Keypad Untighten the bottom screw and detach the keypad from base. Change the batteries, place the keypad and tighten it. Use 1,5 V AAA size high quality alkaline or lithium batteries only. - Page 16 There is a problem related with connection between motor and cylinder. Call your dealer and ask for service. IF KEYPAD IS NOT CONTROLLING THE MOTORIZED CYLINDER The motorized cylinder maybe in night mode. (see 5.2) www.utopic.com.tr Desi Alarm and Security Systems Inc. Topkapı Maltepe Cd. Anadolu Sk. N:1 Bayrampaşa- İstanbul / TURKEY www.desi.com.tr...
