DESi Utopic Series User Manual

Wireless auto-rotating motorized cylinder with wireless fingerprint reader

Advertisement

Quick Links

Wireless Auto-Rotating
Motorized Cylinder with
Wireless Fingerprint Reader
USER
MANUAL

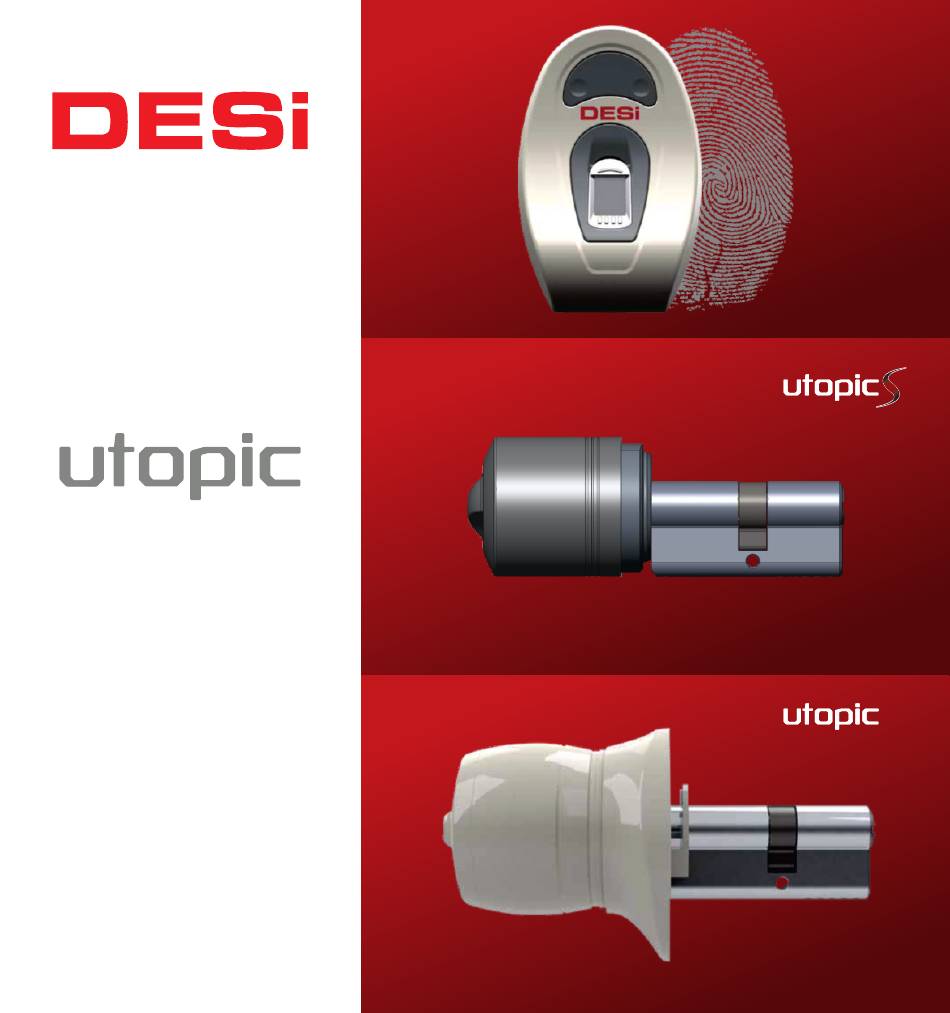

UFC 60 / UFC 80
UFC 80
2
2 2
UFC 60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Utopic Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DESi Utopic Series

  • Page 1 UFC 80 Wireless Auto-Rotating Motorized Cylinder with Wireless Fingerprint Reader UFC 60 USER MANUAL UFC 60 / UFC 80...
  • Page 2: Table Of Contents

    Table of Content ............................. Warnings ..............................Wireless Fingerprint Reader / Remote Controller ................Wireless Motorized Cylinder ......................... 1. Installation ............................1.1. Motorized Cylinder ........................... 1.2. Fingerprint Reader ........................... 1.2.1. First Method (from Inside) ......................1.2.2. Second Method (from Outside) ....................2.
  • Page 3: Warnings

    WARNINGS - Put the key of the lock to somewhere (car, bag etc.) which you can reach easily, to use if there is a deformation on your finger or if there is a problem with the device. - Door's mechanical parts and locking mechanism should be working properly.
  • Page 4: Wireless Fingerprint Reader / Remote Controller

    WIRELESS FINGERPRINT READER Display Touch Button Touch Button Fingerprint Wake Up Reader Button Screw REMOTE CONTROLLER (Optional) Full-Turn Locking Unlocking 1-Turn Locking...
  • Page 5: Wireless Motorized Cylinder

    WIRELESS MOTORIZED CYLINDER Cylinder Knob Knob Screw 1. INSTALLATION 1.1. Motorized Cylinder Utopic cylinders have the same installation process of the ordinary cylinder. Remove Install That’s existing utopic all ! cylinder cylinder tighten screw Adjusting Cylinder Length of Utopic S Utopic S’s cylinder length is 66 mm and its inner part can Set Screw be extended by 12 mm.
  • Page 6: Fingerprint Reader

    1.2. Fingerprint Reader First of all, unscrew the set screw at the bottom of reader with a 19 mm (3/4") hex key and seperate metal part and plastic part. After that, remove the battery, if it is already placed. Use one of the methods below: 1.2.1.
  • Page 7: Enrolling First (Master) Fingerprint

    2. ENROLLING FIRST (MASTER) FINGERPRINT Fingerprint reader comes without any fingerprint in its memory. The first 3 fingerprints are accepted as master. Administrative activities like enrolling or deleting fingerprint can be done by master fingerprints only. Master fingerprints need to be chosen carefully. Don’t enroll a child’s finger or any finger which is deformed (or can be deformed easily) as a master finger.
  • Page 8: Deleting Fingerprint (Dl)

    3.3. DELETING FINGERPRINT (DL) - Enter to administration menu. - Touch to “button #2" till “DL” appears and touch to “button #1" when “DL” is on display. ”01" will be shown. - Touch to “button #1" till you see the fingerprint id you want to delete and touch to “button #2"...
  • Page 9: Reporting Total Number Of Enrolled Fingers (Uc)

    3.7. REPORTING TOTAL NUMBER OF ENROLLED FINGERS (UC) - Enter to administration menu. - Touch to “button #2" till “UC” appears and touch to “button #1" when “UC” is on display. Total number of enrolled fingerprints will be displayed. 3.8. ADJUSTING BUZZER SOUND (BU) - Enter to administration menu.
  • Page 10: Usage

    4. USAGE 4.1. Unlocking and Opening The Door Touch to “wake up” and put an enrolled finger to the reader. Fingerprint id will be displayed and it will unlock and open the door. If the finger is not known or recognized, “NO” will be displayed.
  • Page 11: Troubleshooting

    - Open knob screw by rotating it counter-clock wise and remove knob (pull outward.) - Uninstall old batteries and install new batteries. Watch the polarities! - Put knob back and tighten knob screw. NOTE: Never use new batteries and old batteries together. 6.
  • Page 12 Manufacturer Topkapı Maltepe Cd. No: 15 Zeytinburnu 34010 İstanbul /TURKEY T. +90212 501 72 72 F. +90212 576 64 77 www.utopic.com.tr www.desi.com.tr...
