Summary of Contents for Ambirad Tornado 600

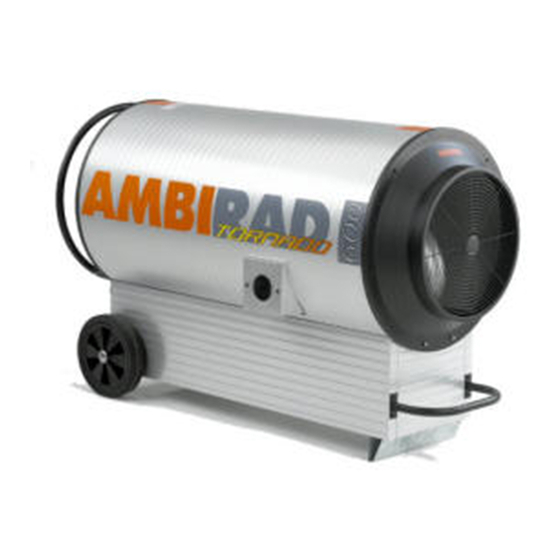

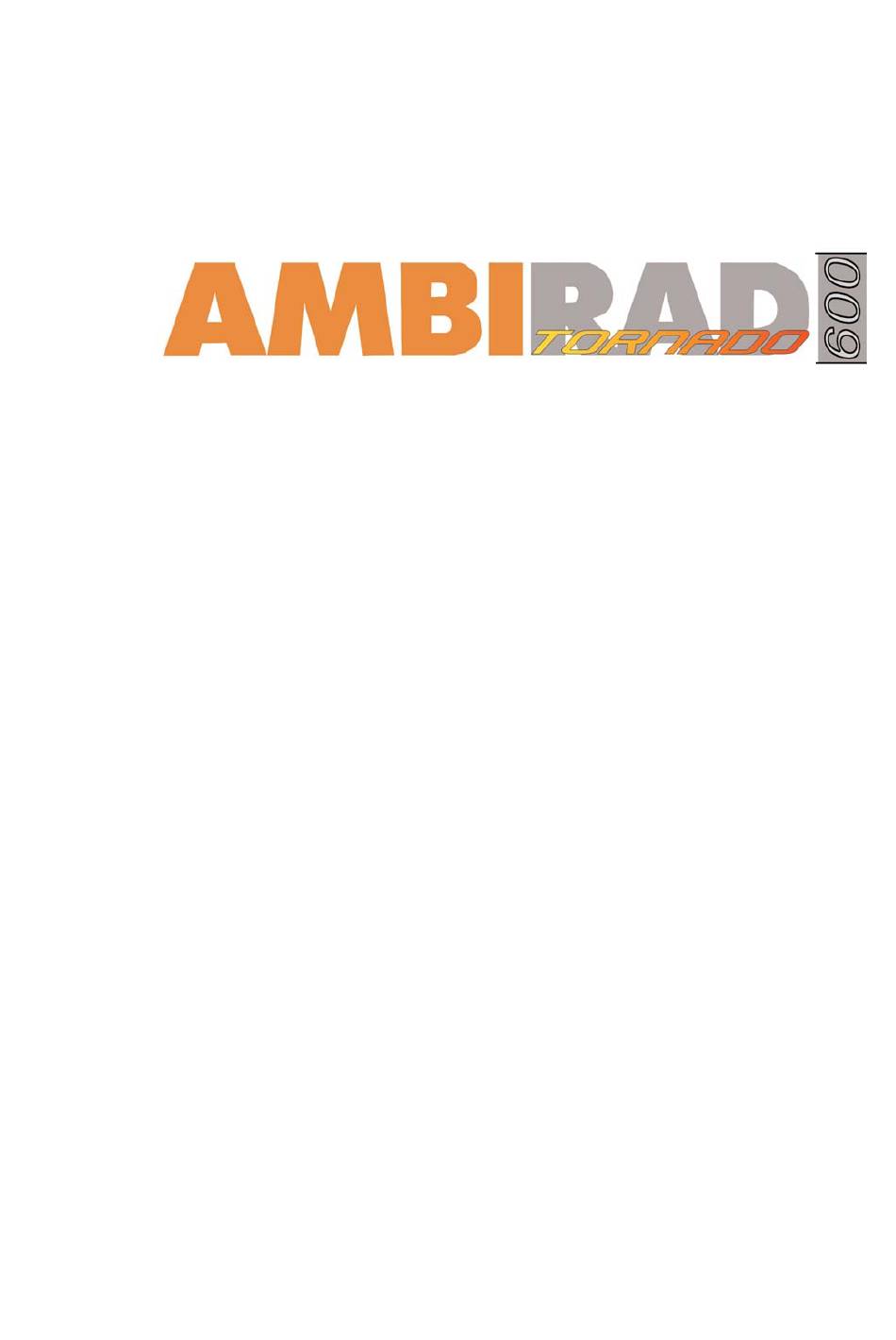

- Page 1 MOBILE RADIANT HEATERS Operation, maintenance and servicing manual Wolfe Design Ltd...
- Page 2 MOBILE RADIANT HEATER Index Health & safety details Technical details Moving the product Operating instructions Cleaning & maintenance Servicing instructions Fault finding Ducted options Spare parts...
- Page 3 Keep cylinders upright at all times during use, transporting and 1 Health & safety details when stored. Important Liquid gas can cause severe freeze burns so avoid skin contact by Read these instructions before use. wearing gloves when making connections or handling the This appliance must be installed in accordance with such cylinder.
-
Page 4: Moving The Product
MOBILE RADIANT HEATER Plug the supply lead into the connector on the rear of the product 3 Moving the product and put the rocker switch next to the connector inlet to the ‘ON’ Figure 1 Wheeling position. Step 2 Figure 2 Standing for storage Uncoil the hose from around the rear ring. - Page 5 Thermostat Control Remote thermostat - set the rocker switch to the remote stat position. (See Step 4). Plug the remote stat lead into the remote The temperature of the building can be controlled using either the stat socket. A remote thermostat kit is available from Ambi-Rad local or optional remote thermostat.
-
Page 6: Cleaning And Maintenance
MOBILE RADIANT HEATER Step 2 5 Cleaning & maintenance The hose should be checked regularly for its integrity, if any damage is found the hose must be replaced. See Technical details for hose details. Ensure that the air intakes and flue outlet on the sides of the product are clean and free from any blockage. - Page 7 Axial fan & heat exchanger Burner maintenance Step 1 Axial fan Step 1 Remove the 4 nuts securing the axial fan to the rear spinning assembly. Remove the screws fixing the rear spinning to the case assembly Check that the fan spins freely without any sign of being out of and the gas hose.
- Page 8 MOBILE RADIANT HEATER Step 3 Slide the burner assembly away from the firing tube to reveal the burner assembly. Inspect the burner electrode assembly condition taking care when reassembling to ensure that the leads to the assembly are fitted the same way as on removal. If the electrode assembly is in good order check the spark electrode gap.
- Page 9 Step 7 To replace the electronic sequence controller, transformer, thermostat and pressure switch Step 1 To remove the injector with the burner head removed, unscrew Access to these components is via the hinged lid. Remove the lid the injector from its carrier using a spanner on the hexagon securing screws.
- Page 10 MOBILE RADIANT HEATER Figure 1 Vacuum switch connections Figure 2 Wiring diagram...
-
Page 11: Fault Finding
7 Fault finding Symptoms Possible causes Remedy Burner will not start Incorrect voltage selected Red ‘mains on’ does not illuminate. Overheat thermostat tripped. Check outlet and inlets are not obstructed. Check fan speed. If problem persists replace thermostat. Red light illuminates. External controls, thermostats, time switch etc. - Page 12 MOBILE RADIANT HEATER 8 Ducted options Ducted air Flue The products of combustion can be taken away from the room where the product is being used by the use of a flue duct. A flue pipe capable of withstanding 175˚C, 108mm diameter, and maximum length of 10m shall be used.
-
Page 13: Spare Parts
9 Spare parts Photograph Photograph Part Number Description Description Part Number Ignition controller S-TOR-600-450 Igniter assembly S-TOR-600-390 Valve twin sol. step S-TOR-600-430 Burner head mesh S-TOR-600-380 reg 220/240V Amber neon S-TOR-600-500 Jet carrier S-TOR-600-400 (Burner ON) Red neon S-TOR-600-510 Combustion fan S-TOR-600-420 (Mains ON) Injector 4.6mm... - Page 14 MOBILE RADIANT HEATER 9 Spare parts (Cont) Photograph Photograph Part Number Description Description Part Number O clip double ear S-CLI-HOS-010 Harness - BCH mini S-TOR-600-460 Overheat S-TOR-600-520 Vacuum switch S-TOR-600-440 thermostat Remote thermostat S-TOR-600-580 S-TOR-600-640 Capacitor socket Remote thermostat S-TOR-600-590 Spanner S-TOR-600-670 switch...
- Page 15 Moss Side Industrial Estate Fens Pool Avenue Leyland Brierley Hill Lancs PR26 7QS West Midlands DY5 1QA Telephone +44 (0)1772 456191 Telephone +44 (0)1384 489700 Facsimile +44 (0)1772 622464 Facsimile +44 (0)1384 489707 Model Ref: HEA-TOR-PRO-600 Website: www.wolfedesigns.co.uk Website: www.ambirad.co.uk...
