Laars FT Series User Manual

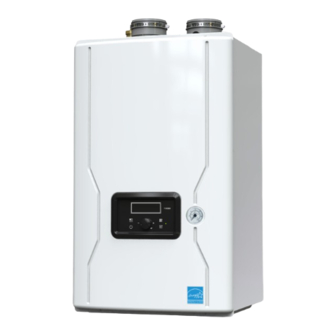

Wall-mounted, modulating gas, condensing, heating only, boiler
Hide thumbs
Also See for FT Series:
- Installation and operation instructions manual (100 pages) ,
- Instructions manual (32 pages) ,
- User manual (13 pages)
Table of Contents
Advertisement
Quick Links
User's Manual
FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician,
qualified in hot water boiler and heater installation and maintenance. Improper installation and/or operation
could create carbon monoxide gas in flue gases which could cause serious injury, property damage, or
death. Improper installation and/or operation will void the warranty.
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
nearby phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency, or gas
supplier.
User's Manual for
Wall-Mounted, Modulating
Gas, Condensing, Heating Only, Boiler
Model FTHW
WARNING
100,000 BTU/hr
140,000 BTU/hr
199,000 BTU/hr
•
Natural Gas (NG) - Factory Configuration
•
Propane Gas (LP) - Field-Convertible
AVERTISSEMENT
Assurez-vous de bien suivres les instructions
données dans cette notice pour réduire au
minimum le risque d'incendie ou d'explosion
ou pour éviter tout dommage matériel, toute
blessure ou la mort.
Ne pas entreposer ni utiliser d'essence ni
d'autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareils.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones dansle bâtiment où vous êtes.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le sservice des incendies.
L'installation et l'entretien doivent être assurés par
un installateur ou un service d'entretien qualifié ou
par le fournisseur de gaz.
Document 1484A
Advertisement
Table of Contents
Related Manuals for Laars FT Series
Summary of Contents for Laars FT Series
- Page 1 User’s Manual Document 1484A User’s Manual for Wall-Mounted, Modulating Gas, Condensing, Heating Only, Boiler Model FTHW 100,000 BTU/hr 140,000 BTU/hr 199,000 BTU/hr • Natural Gas (NG) - Factory Configuration • Propane Gas (LP) - Field-Convertible FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician, qualified in hot water boiler and heater installation and maintenance.
- Page 2 Page 2 CONTENTS 1. Familiarizing yourself to the wall mounted FT Series Boiler ..2-3 2. Caring For Your FT Series Boiler ...........4 3. Start Up and Shut Down...............4 4. Control Setup and Operation ............5-10 MODEL NUMBER Familiarizing yourself to...
- Page 3 FTHW120/140 User’s Manual - The FT Series Wall Mounted, Boiler Page 3 Shown is the FT Series Heating Only 140 MBH. All sizes are very similar in component layout.
-
Page 4: Shut Down And Restart
2.3 In the Event of a Power Failure 2.1 General Care The FT Series boiler can not be operated during Keep the area around the FT Series boiler clean an electrical power outage. If there is an extended... -
Page 5: Section 5 Control Display And Operation
Page 55 The FT Series Heating Only, Boiler 55page User’s Manual - The FT Series Wall Mounted, Boiler Page 5 SECTION 5 Control Display and Operation Control Dial and Buttons 4. The Control Display and Operation Status Light (constant green... - Page 6 Page 6 Page 56 4. The Control Display and Operation LCD Overview (continued) Symbol Name Description Service Reminder mode Service Reminder mode indication Outside Temperature Mode Outside Temp setting indication Anti-freeze mode Anti-freeze mode indication Storage mode Storage mode indication Information mode Information mode indication Communication state...
-
Page 7: Operating Mode
User’s Manual - The FT Series Wall Mounted, Boiler Page 7 Page 57 The FT Series Heating Only, Boiler Operating Mode 57page Operating Mode After the Power is turned on, and/or the Control Display is turned on , the Control Display will go through a ‘Start Up’... -
Page 8: Setting The Clock
Page 8 57page Page 58 Setting the Clock The P-950EH Control Display does NOT have a daily timer or programmable thermostat. Setting the Clock Press and hold the ‘Clock button’ for about 5 seconds. Set the ‘Year’ by turning the dial . - Page 9 57page User’s Manual - The FT Series Wall Mounted, Boiler Page 9 Page 59 The FT Series Heating Only, Boiler CH Set Point Change Mode CH Set point Change Mode To change CH Set point, press the C button. The CH Icon and current CH Set point will fl ash.
-
Page 10: Status Display Mode
Dial E to save and to exit the Status Information Menu. To go back to the Operation Screen Press button B. NOTE: For Cascading Installations, please refer to document 1349 ‘Cascading the FT Series Boiler’, available online. Digital Display Description Status Display Parameter... - Page 11 User’s Manual - The FT Series Wall Mounted, Boiler Page 11 Notes:...
- Page 12 User’s Manual - The FT Series Heating Only, Boiler Notes: Dimensions and specifications subject to change without notice in accordance with our policy of continuous product improvement. 800.900.9276 • Fax 800.559.1583 Customer Service and Product Support: Industrial Way, Rochester, NH, USA 03867...
