Task Force Tips MASTERSTREAM Series Instructions For Installation, Safe Operation And Maintenance page 18
Nozzle
Hide thumbs
Also See for MASTERSTREAM Series:
Table of Contents
Advertisement
SHAFT
SHAFT
©Copyright Task Force Tips, Inc. 1999 - 2011
LUBE
POPPET
CONTROL
SPRING
LUBE

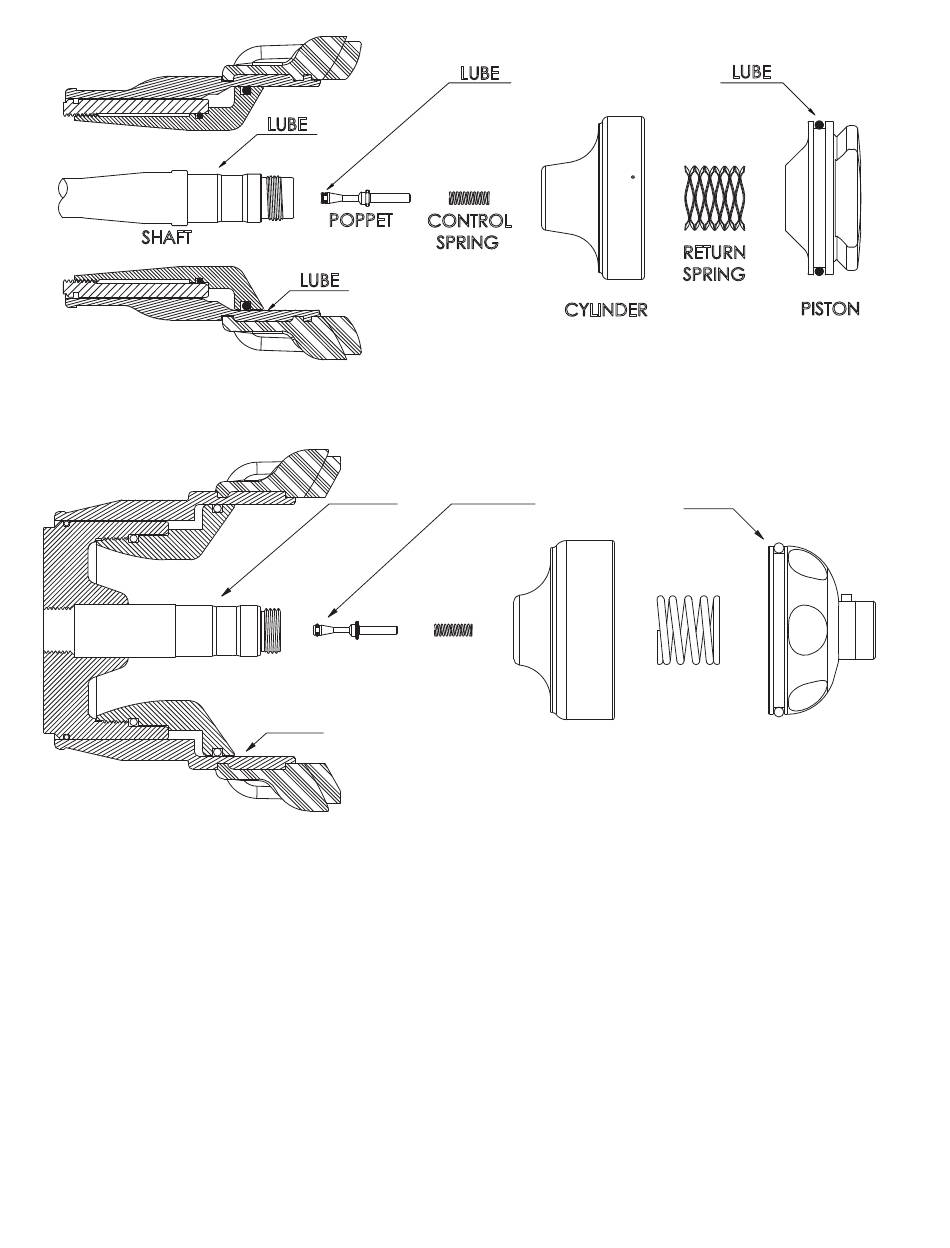

FIG 5B - Masterstream 1250 and 1500 Front End Parts
LUBE
CONTROL
POPPET
SPRING
LUBE
FIG 5C - Masterstream 2000 Nozzle Front End Parts
LUBE
CYLINDER
LUBE
CYLINDER
18
LUBE
RETURN
SPRING
PISTON
LUBE
RETURN
SPRING
PISTON
LIM-030 April 29, 2011 Rev13
