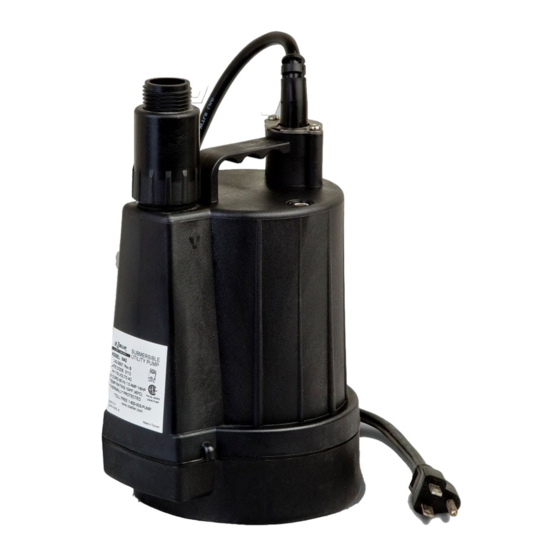

Zoeller LM44 Installation Instructions

Notice to Installer: Instructions must remain with installation.
Product information presented
here re fl ects con di tions at time
of publication. Consult factory
re gard ing dis crep an cies or
in con sis ten cies.
PREINSTALLATION CHECKLIST - ALL IN STAL LA TIONS
1. Inspect your pump. Occasionally, products are dam aged during shipment. If the unit is damaged, contact your deal er before
using. DO NOT remove the test plug in the cover.
2. Carefully read the literature provided to fa mil iar ize your self with specifi c details regarding in stal la tion and use. These materials
should be retained for future reference.
SEE BELOW FOR LIST OF WARNINGS
1. Make sure there is a prop er ly in stalled ground fault cir cuit inter-
rupter (GFCI) pro tect ed cir cuit avail able. All pumps are fur nished
with pro vi sions for proper ground ing to help pro tect you against
the pos si bil i ty of elec tri cal shock.
2. Make certain that the ground fault re cep ta cle is with in the reach
of the pump's pow er sup ply cord. DO NOT USE AN EX TEN SION
CORD. Ex ten sion cords that are too long or too light do not
deliver suf fi cient volt age to the pump mo tor. But, more im por tant,
they could present a safety haz ard if the in su la tion were to be-
come dam aged or the con nec tion ends were to fall into water.
3. Make sure the pump elec tri cal sup ply cir cuit is equipped with
fuses or cir cuit break ers of prop er ca pac i ty. A sep a rate branch
cir cuit is rec om mend ed, sized ac cord ing the Na tional Elec tri cal
Code for the cur rent shown on the pump name plate.
4. TESTING FOR GROUND. As a safe ty mea sure, each elec tri cal
outlet should be checked for ground using an Under writ ers
Labo ra tory List ed cir cuit an a lyz er which will in di cate if the power,
neu tral and ground wires are cor rect ly con nected to your out let. If
they are not, call a qual i fi ed li censed electrician.
5. Installation and checking of elec tri cal cir cuits and hard ware
should only be per formed by a qual i fi ed li censed electrician.
6. FOR YOUR PROTECTION, AL WAYS DIS CON NECT PUMP
FROM ITS POWER SOURCE BE FORE HAN DLING.
7. These pumps are supplied with a 3-prong ground ed plug to help
protect you against the pos si bil i ty of elec tri cal shock. DO NOT
UN DER ANY CIR CUM STANC ES RE MOVE THE GROUND
PIN. The 3-prong plug must be in sert ed in a mating 3-prong
fault inter rupter re cep ta cle. If the in stal la tion does not have such
a re cep ta cle, it must be changed to the proper type, wired, and
ground ed in ac cor dance with the Na tion al Elec tri cal Code and all
ap pli ca ble local codes and ordinances.
8. Risk of electric shock. This pump has not been tested for use in
swimming pool or marine areas.
9. According to the state of California (Prop 65), this product con-
tains chemicals known to the state of California to cause cancer
and birth defects or other reproductive harm.
DO NOT USE FOR PUMPING OILS, GASOLINE OR ANY PETROLEUM BY-PRODUCTS.
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
INSTALLATION IN STRUC TIONS
MODEL: LM44
© Copyright 2007 Zoeller Co. All rights reserved.
SEE BELOW FOR LIST OF CAUTIONS
1. Check to be sure your power source is ca pa ble of han dling the
voltage requirements of the motor, as indicated on the pump
name plate.
2. These pumps are not de signed or in tend ed to be used to handle
sewage or effl uent.
3. This pump has been evaluated for use with WATER only.
4. Maximum continuous operating water tem per a ture for stan dard
mod el pumps must not exceed 104°F (40°C).
5. These pumps are not designed or intended to be used as a
primary or backup sump pump.
Note: Pumps with the "CSA" mark are tested to CSA Standard
C22.2 No. 108.
REFER TO WARRANTY ON PAGE 2.

PERFORMANCE

Your pump is designed to effectively pump all clear storm and drain
waters. Although it will usually pass small particles suspended in
water; grass, heavy mud, sand or pea gravel can clog the pump
and reduce pump performance. This can usually be cleaned out by
backfl ushing with a garden hose through the discharge. The normal
performance that can be expected is as follows:
GALLONS PER HOUR AT
DISCHARGE HEIGHT ABOVE
HP
PUMPING LEVEL
5 Ft. 10 Ft.
1/4 1800 1320
SECTION: 6.10.014
FM2427
0207
Supersedes
New
visit our web site:
www.zoeller.com
SHUT-OFF
HEAD
15 Ft.
720 20 Ft.
P/N 022508
