L I F T P L A T E
The Lift Plate rests on the bottom of the shaker box
to help level the cones for even filling.
The Lift Plate uses (4) Riser Bolts to adjust for 84
mm, 98 mm, and 109 mm tray sizes. The Lift Plate is
set for 109 mm by default.
Please ensure the correct Riser Bolts are
installed prior to use.
A D J U S T I N G T H E L I F T P L A T E
Remove the (4) flathead screws with a 5/32
Allen wrench and remove the Lift Plate
completely from the shaker box.
Install the Riser Bolts (4) onto the fixed riser
bolts on the bottom of the shaker box. The
84 mm 'B' Riser Bolts are longer, whereas
the 98 mm 'A' Riser Bolts are shorter.
Align and re-install the Lift Plate, securing in
place with the (4) flathead screws using a
5/32 Allen wrench.

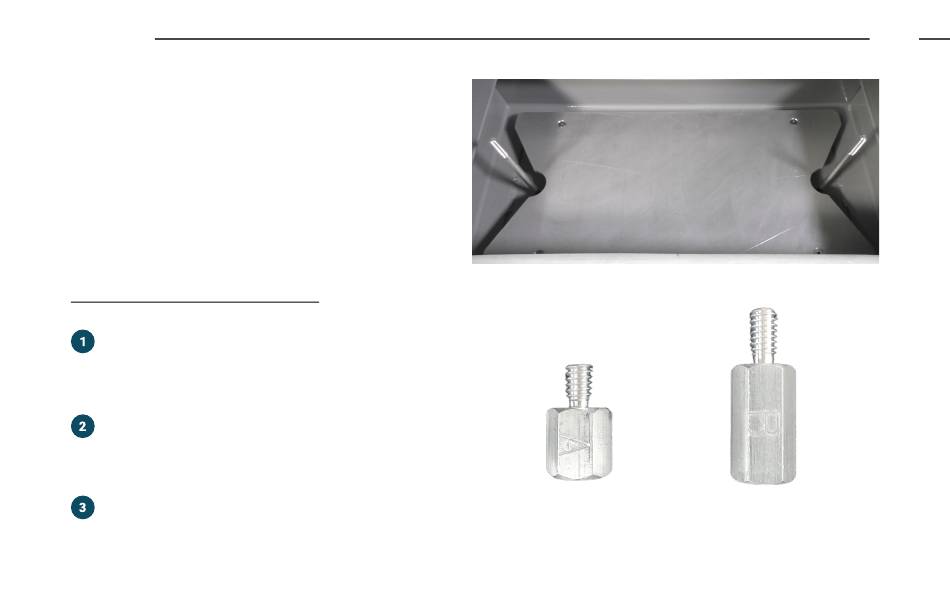

' A ' R I S E R B O L T S
Used for 98 mm cones
' B ' R I S E R B O L T S
Used for 84 mm cones
