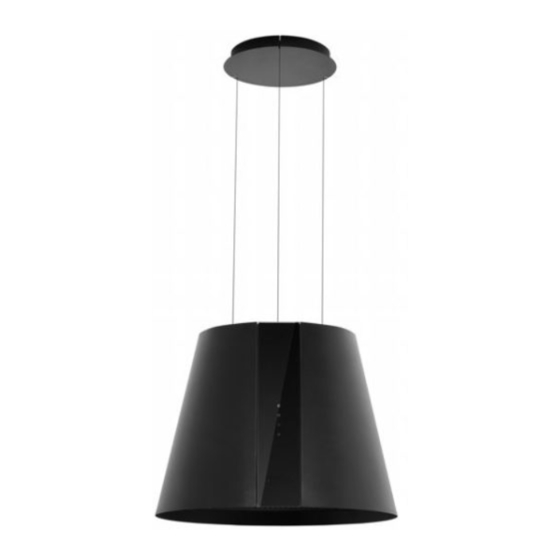

TABLE OF CONTENTS SECTION PAGE 1. INPUT 2. TECHNICAL DRAWINGS 3. WARNING AND SAFETY PRECAUTIONS 3.1 LETHAL RISK, DANGER AND POISONING 4. USAGE WITH AND WITHOUT CARBON FILTER 5. CLEANING OF ACTIVATED FILTER PAD 6. CLEANING AND MAINTENANCE 11-12 7. APPLIANCE POSITION 7.1 INSTALLATION AND UNPACKAGING 7.2 RECOMMENDATIONS FOR ENERGY SAVING 8.
ÜST 1. Input INPUT This guideline and the safety data includes all necessary informa- tion for a safe mounting as well as a safe use without defects. Please read all of this guideline and safety data before using the device. Keep the guideline in an appropriate place.
WARNING AND SAFETY PRECAUTIONS 3. Warning and safety precautions WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAU- This appliance can be used by children of 8 years and older, TIONS people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers.
Page 5
3. Warning and safety precautions (cont) WARNING AND SAFETY PRECAUTIONS If your product's periodic cleaning is not made in a timely manner, it could pose risk of fire. De-energize the appliance before any maintenance operations. (Plug off the appliance or turn off the main switch.) When electric cooker hood and devices fed with energies other than electricity operate simultaneously, the negative pressure in the room must not exceed 4 Pa ( 4 X 10 bar ).
WARNING AND SAFETY PRECAUTIONS 3. Warning and safety precautions (cont) LETHAL RISK, DANGER OF POISONING 3.1 LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for chil- dren. Never allow children to play with packaging materials.
Page 7
WARNING AND SAFETY PRECAUTIONS 3. Warning and safety precautions (cont) LETHAL RISK, DANGER OF POISONING LETHAL RISK, DANGER OF POISONING WARNING! Fire danger! – The oil residue in the oil filter may catch fire.Clean the oil filter at least once every 3 months.Never operate the device without the oil filter.
Page 8
3. Warning and safety precautions (cont) WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING LETHAL RISK, DANGER OF POISONING DANGER! Danger of physical injury! – During the installation, there is a danger of physical injury due to the sharp edges. Use protective gloves throughout the installation process of the appliance.
Page 9
3. Warning and safety precautions (cont) WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING LETHAL RISK, DANGER OF POISONING NOTICE! If the feeder cable is damaged, it must be replaced by its manufacturer or its authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situa- tion.
USAGE WITH AND WITHOUT CARBON FILTER 4. Usage with and without carbon filter USAGE WITH AND WITHOUT CARBON FILTER You can use this appliance in exhaust air mode and ventilated air mode. Exhaust air mode The absorbed air is cleaned by the grease filters, and is discharged through a piping system.Fig.
5. Cleaning of activated carbon filter pad Cleaning of Activated Carbon Filter Pad Placing the active carbon filter Removing the metal oil filters ( Ä “Placing the active carbon filter” on page 13). Active carbon filter is placed on the rear side of the metal oil filter Push it to the side to remove it.(Fig.
Page 12
6. Cleaning and maintenance (cont) CLEANING AND PREVENTIVE MAINTENANCE Cleaning the scale filter 6.1 Cleaning the scale filter Open the metal cover of the hood (Fig. 7/1). Open the lock of the metal oil filter (Fig. 7/2) and ensure that it will not fall.
APPLIANCE POSITION Recommendations for Energy Saving 7. Appliance position APPLIANCE POSITION Recommendations for energy saving Fig. 8 After completing the installation of hood, the minimum distance must be 70 cm between the product and any electric cooker; and 85 cm between it and any gas ranges or cookers burning other fuels (Fig.
ASSEMBLY OF PRODUCT Installation Diagram and Components 10. Assembly of product ASSEMBLY OF PRODUCT 10.1 Installation Diagram and Components Ceiling 8 x plastic dowel, Ø 10 mm Ceiling Hanging Plate 8x 5.5x60 Wall Mount Screw Fig. 11 Drill the surface where product will be installed from the points A, B, C, D with Ø10 mm drill (Fig.
Page 16
ASSEMBLY OF PRODUCT Installation Diagram and Components 10. Assembly of product (cont) Let the product hanger wires (2) through hanger plate (3). As this is done, the feeder cable passage area (5) should be on the right side when the appliance is viewed from the front (Fig.
How to use 5 Spd Dig Touch Control Product 11. Use of product USE OF PRODUCT 11.1 How to use 5 Spd Dig Touch Control Product Fig. 14: 5 Spd Dig Button Press this button to turn on the product.Fig. 14 Press this button to decrease the motor speed.Fig.
REMOTE CONTROL 12. Remote Control REMOTE CONTROL 1- Motor On/Off 2- Motor Speed Increase 3- Motor Speed Decrease 4- Lighting On/Off Remote control is sold together with the product optionally. The product you bought may not have remote control option. Fig.
