CyberData DX80 Installation Quick Reference page 2

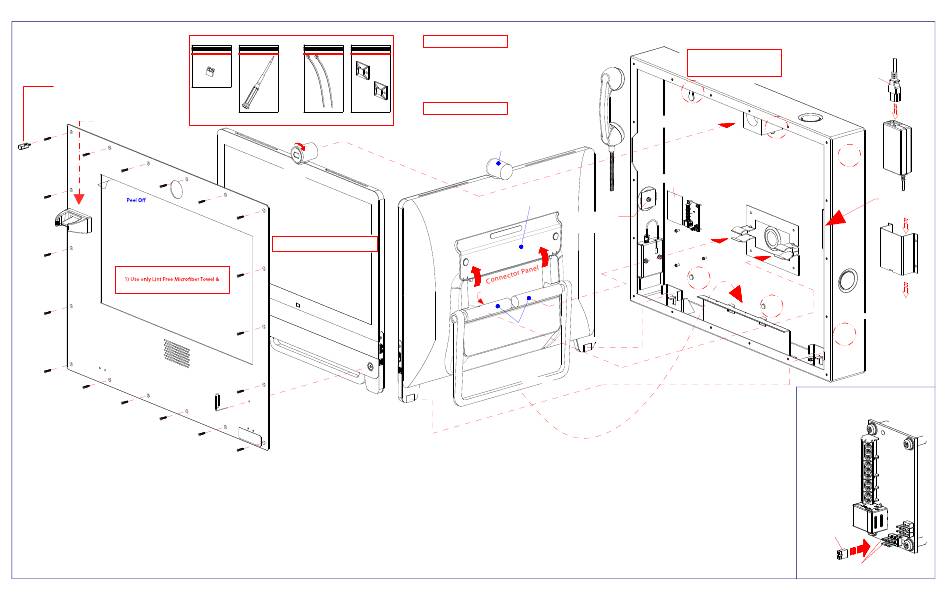

Install the DX80 Phone to Enclosure
Use Provided Security Torx
Driver Bit to Fasten Screws
to Backbox
Tool Required:
Electric Hand Drill or
Powered Screwdriver
See Hookswitch to
USB to Analog Audio Module Diagram
for Details Connections
*
Protective Film
from Both Sides
Before Close the Faceplate
Plexiglass Cleaning Instruction:
Plexiglass Cleaner to Wipe Surface Clean
FACEPLATE
ASSEMBLY
Use a Paper Clip Through Hole
to Access Power Button
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
Accessory Kits in Ziploc Type Bag
Jumper Shunt
1.5" Square
Wire Tie Mounting
6" Wire Tie (2x) Base (2x)
#00 size Phillips Screw Driver
Use provided cable management kit
to bundle up cables
Turn to Open Lens Cover
on DX80 Phone
Screen Cleaning Instruction:
Use Clean Damp Cloth to Wipe Surface Clean
931352A
Phone Mounting Instruction:
1) Lift Connector Cover Up
2) Plug in All Neccessary Cables,
Cables Must be Placed Behind Strain Relief Bar
3) Place Foot Stand Behind Plate,
Microphones on to Stands.
5) Place Strain Relief Bar on Top of CLAMPs
Sightly Push Downward to Engage Locking
To Remove Phone from Box:
1) Lift Phone Up in Slow Motion then Remove
All Cables from Connector Panel.
Camera
Connector Cover
Behind
Front
Strain Relief Bar
Foot Stand
Microphone
Quick Reference Quick Reference
Tool Required to Remove Knockouts (KO):
1) Hammer
2) Screwdriver or Nose Plier
Knockouts (KO) & Keyhole Fit:
Up to 1/4" Square Neck Carriage Bolt
1/4" Self-Tapping Screw
or 10 Millimeter Machine Screw
KO
Camera
BACKBOX Holder
ASSEMBLY
Connections
Label
To Remove Nut
Use 11/32" or 9mm
Open Wrench or Box Socket
CLAMP
KO
Stand
Plate
Microphone
931352A
IEC Power Cord
The Other End
Through Desire
Conduit Hole Exit
to Power Source
KO
KO
Place Phone
Power Supply
inside Holder
CLAMP
Plug Power Plug
KO
in to Power Jack
on the Connector Panel
KO
Stand
Install a Shunt on JP2 to
Enable Auto Answer Mode
Shunt
JP2
