Rev A | 12-29-2020
Setup Guide
TR3 Rake

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR3 Rake and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ABI Attachments TR3 Rake

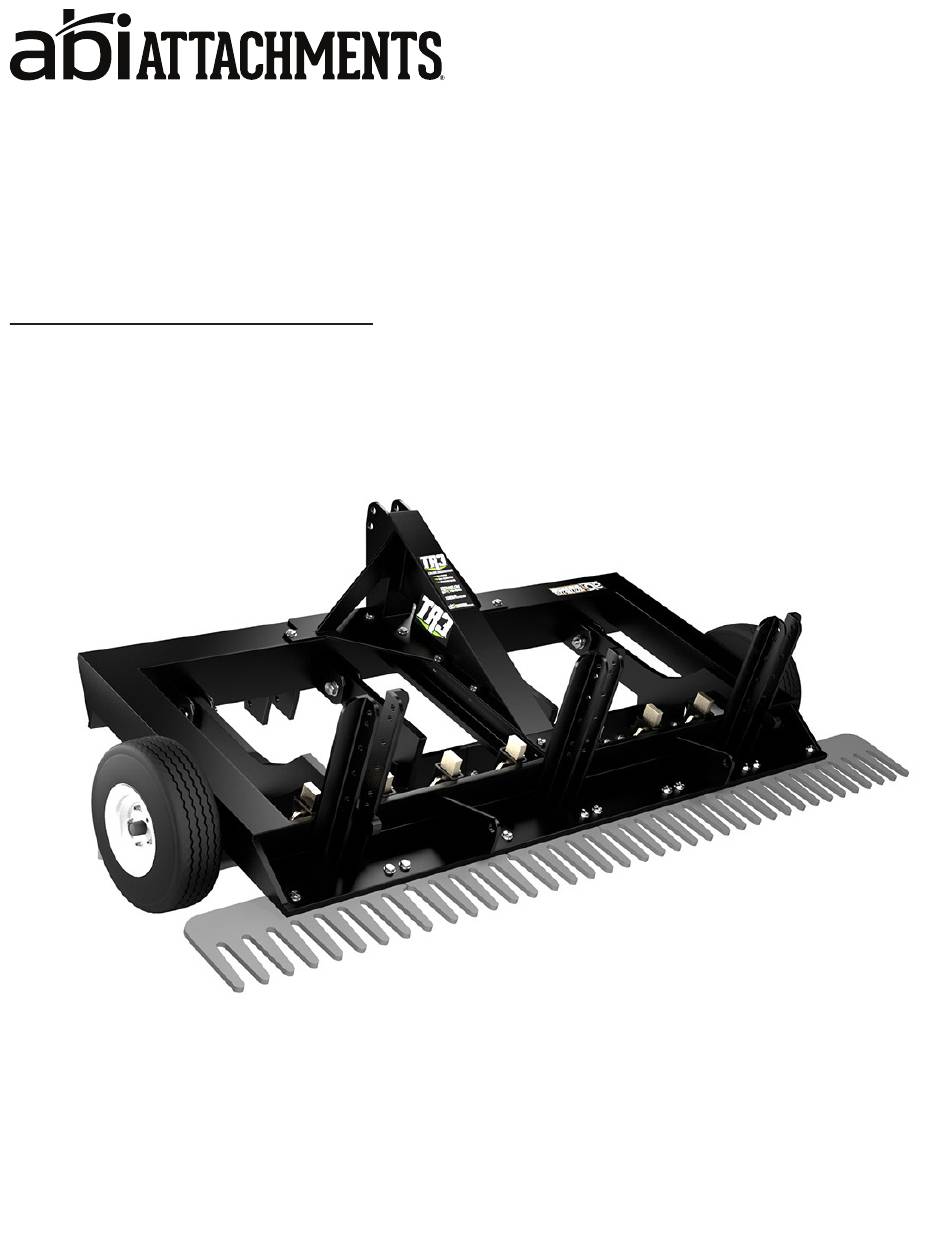

  • Page 1 Rev A | 12-29-2020 Setup Guide TR3 Rake...
  • Page 2: Welcome To The Family

    The information provided in this manual was current at the time of printing. Variations may be present as ABI Attachments continues to improve and upgrade the TR3 for future use. ABI Attachments, Inc. reserves the right to implement engineering and design changes to the TR3 as may be necessary without prior notification.
  • Page 3: Safety Precautions

    Specifications PART # TR35.5 TR36.5 TR37.5 TR38.5 TR310 Width 5.5' 6.5' 7.5' 8.5' Weight 616 lbs. 774 lbs. 920 lbs. 1,105 lbs. 1,230 lbs. # of Scarifiers Profile Ready Hitch CAT 0 & 1 1 OR 2 Min. H.P. 23 H.P. 27 H.P.
  • Page 4: Operation Safety

    Operation Safety • The use of this equipment is subject to certain hazards which cannot be prevented by mechanical means or product design. All operators of this equipment must read and under stand this manual, paying particular attention to safety and operating instructions, prior to using.
  • Page 5: California Proposition

    Safety WARNING! The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it. In addition to design and configuration of equipment, hazard control, and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of equipment.
  • Page 6 • Lower implement to the ground • Replace parts on this implement and follow all shutdown procedures with genuine ABI Attachments parts before leaving the operator’s seat to only. perform maintenance. • Do not alter this implement in a way •...
  • Page 7 USE SEAT BELT AND ROPS result. • ABI Attachments recommends AVOID UNDERGROUND UTILITIES the use of a CAB or roll-over • protective structures (ROPS) and Dig Safe, Call 811 (USA). KEEP RIDERS OFF MACHINERY seat belt in almost all tow vehicles.
  • Page 8 Components Foam Filled Stabilizing Wheel 3-Point Connection 3/4" Hardened Steel Finish Rake Auto Leveling Blade Visit: www.abisupport.com...
  • Page 9 Adjustable Scarifiers Bolt On Scarifier Tips Email: support@abiattachments.com Call Toll Free: 877-788-7253...
  • Page 10: Initial Setup

    Initial Setup Step 1: Step 2: Attach the tractor to the lower arms indicated by arrow #1 Make sure that the Scarifiers are pinned in the first hole or in the picture. There are two connecting holes on the TR3 above on top of the Scarifier Tube for the setup process.
  • Page 11 Step 4: Setting Scarifiers For Use Make sure the Stabilizing wheels are mounted in the middle Before setting the Scarifier’s for use in an Arena, check hole on the tire mounted bracket. This can be adjusted later the level of footing throughout the Arena. If the footing if needed.
  • Page 12 Stabilizing Wheel Maintenance If the leveling blade is carrying too much material. The stabilizing wheels on the TR3 should be greased every 3 months. The stabilizing wheels should also be • Adjust Top Link out to lift the Leveling Blade up more. greased before and after any period of storage.
  • Page 13 Attaching & Using The TR3 Rail Buster Attachment & Use Profiler Attachment • To attach the Rail Buster to the TR3 remove one of the stabilizing wheels on the TR3 and insert the Rail Buster in place of the stabilizing wheel. NOTE: Before using the TR3 and “Profiler”...
  • Page 14 Step 2: Checking The Profile Blade For With the TR3 in base position (covered above in TR3 setup, with Scarifiers lifted out of play) and the Profile blade lifted Leveling & Depth up so that is out of play; adjust the TR3 so that the Finish Rake attached to the TR3 is roughly ¾”...
  • Page 15 Attaching & Using The TR3 The ratcheting top link bracket may need to be extended to allow the bracket to be secured to the TR3. Use the Rolling Basket center handle on the ratcheting top link to extend out the top link until the bracket is able to be secured the to center top mast on the TR3.
  • Page 16 Contact Information Customer Support ABI Attachments, Inc Email: support@abiattachments.com 520 S. Byrkit Ave. Phone: 877-788-7253 Mishawaka, IN 46544 Website: www.abisupport.com To order parts or to speak to one of ABI’s Customer Service Representatives contact us Monday to Friday 9am to 5pm EST.
