WIRING DIAGRAM TO CONNECT SWITCHES
5.2

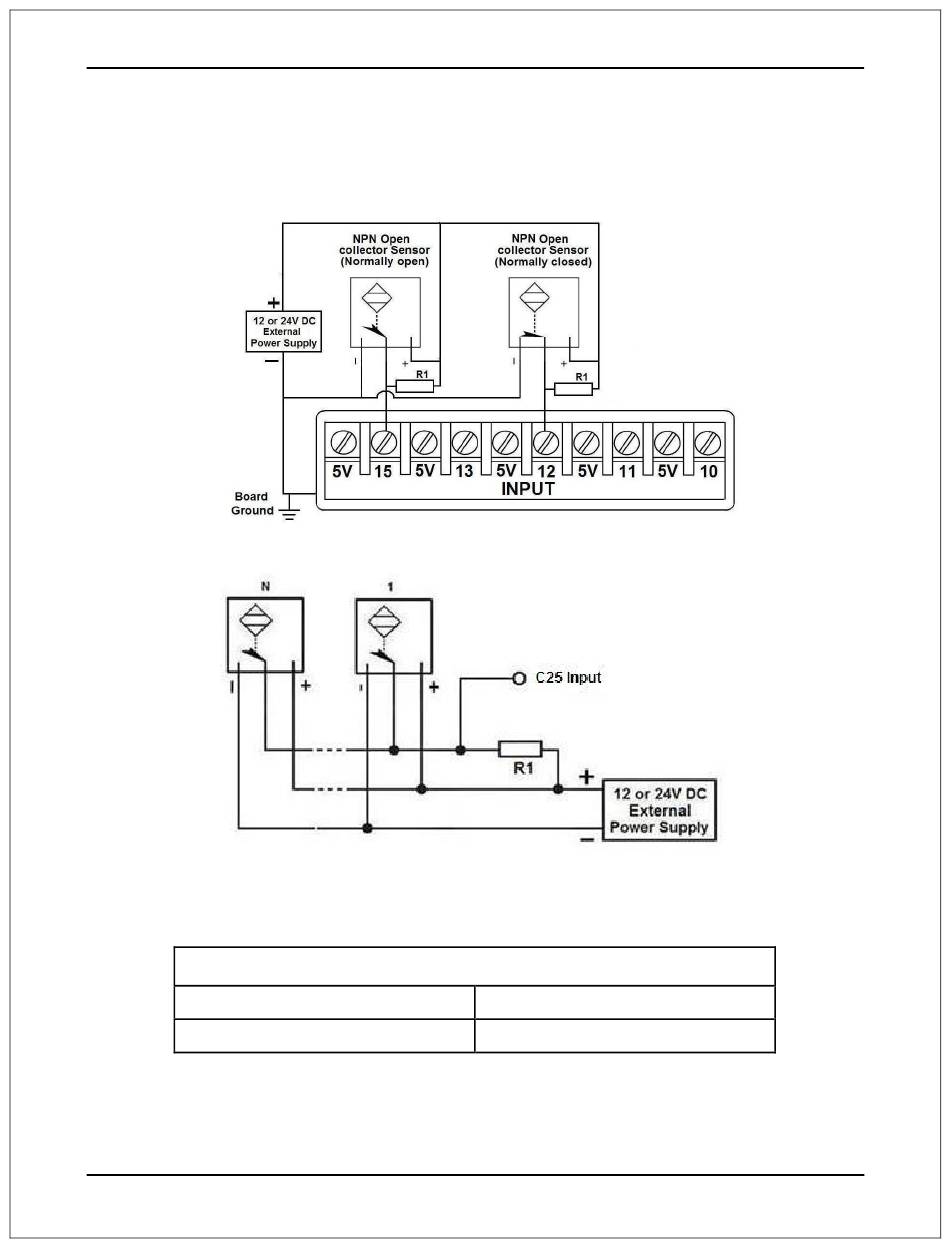

Connecting NPN sensors (For any input)
Wiring diagram to connect NPN open collector proximity sensors
WIRING DIAGRAM TO CONNECT IN PARALLEL NPN OPEN COLLECTOR
PROXIMITY SENSORS
Connecting NPN open collector proximity sensor with the C25
R1 Value (12V)
R1 Value (24V)
Aprox. 10KΩ
Aprox. 25KΩ
User's Manual
Page 4
