2.3
WaveGuide processing unit
The RS485 connectors labeled as Sensor 1, Sensor 2 and Sensor 3 should not be used.
The connector panel of the WaveGuide processing unit includes the following functional
connectors:
• COM1: Serial port for RS-232 data output.
• COM2: Serial port for RS-232 data output.
• USB: For connecting a USB data storage.
• LAN ports: Ethernet access to the processing unit.
• Input DC: For supplying the processing unit with 24V to 48V power.
• Sensor 1, 2 and 3: Not in use.

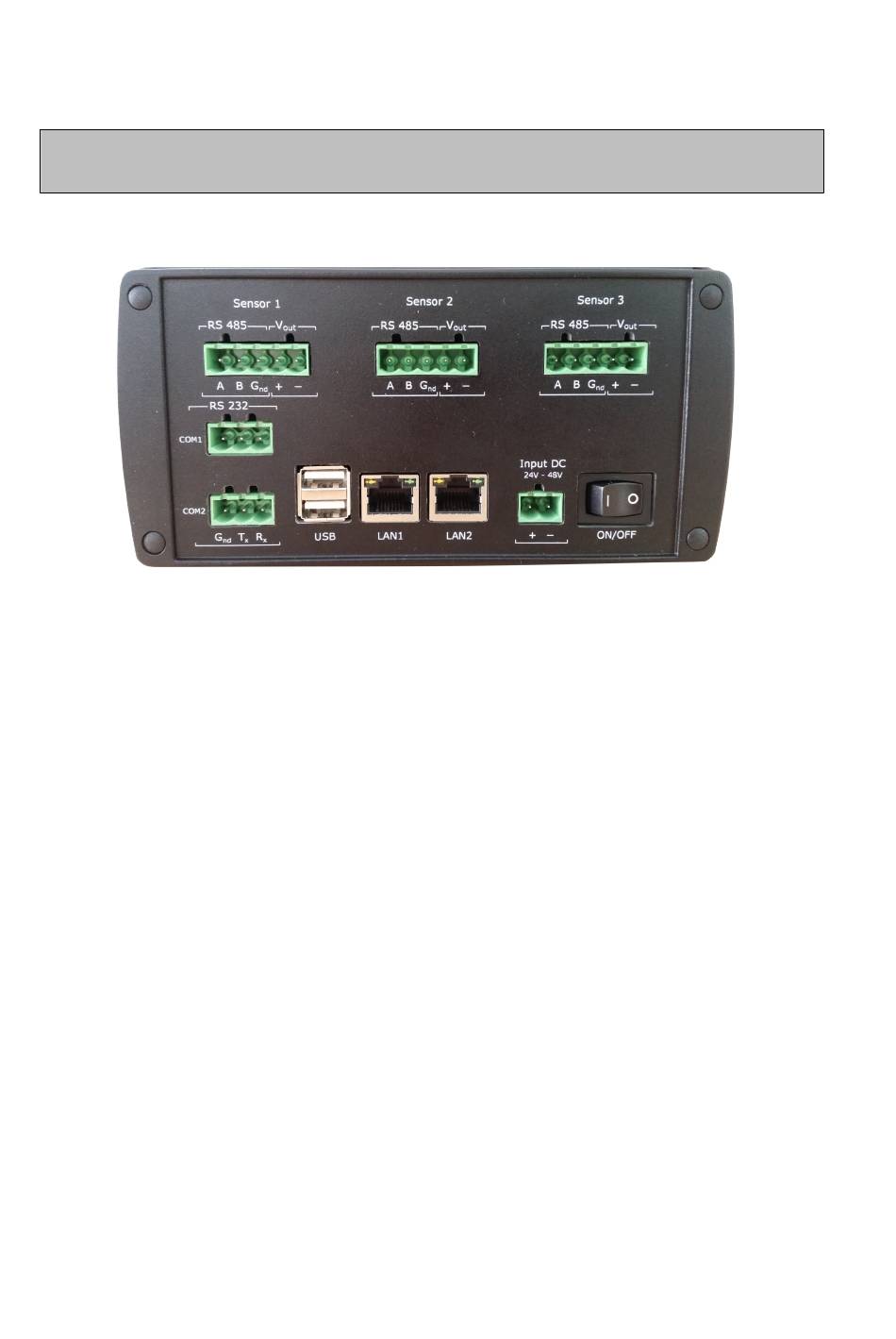

Figure 2.3: Connector panel on the WaveGuide processing unit.
Note
14
