Parrot MULTICAN Manual page 9

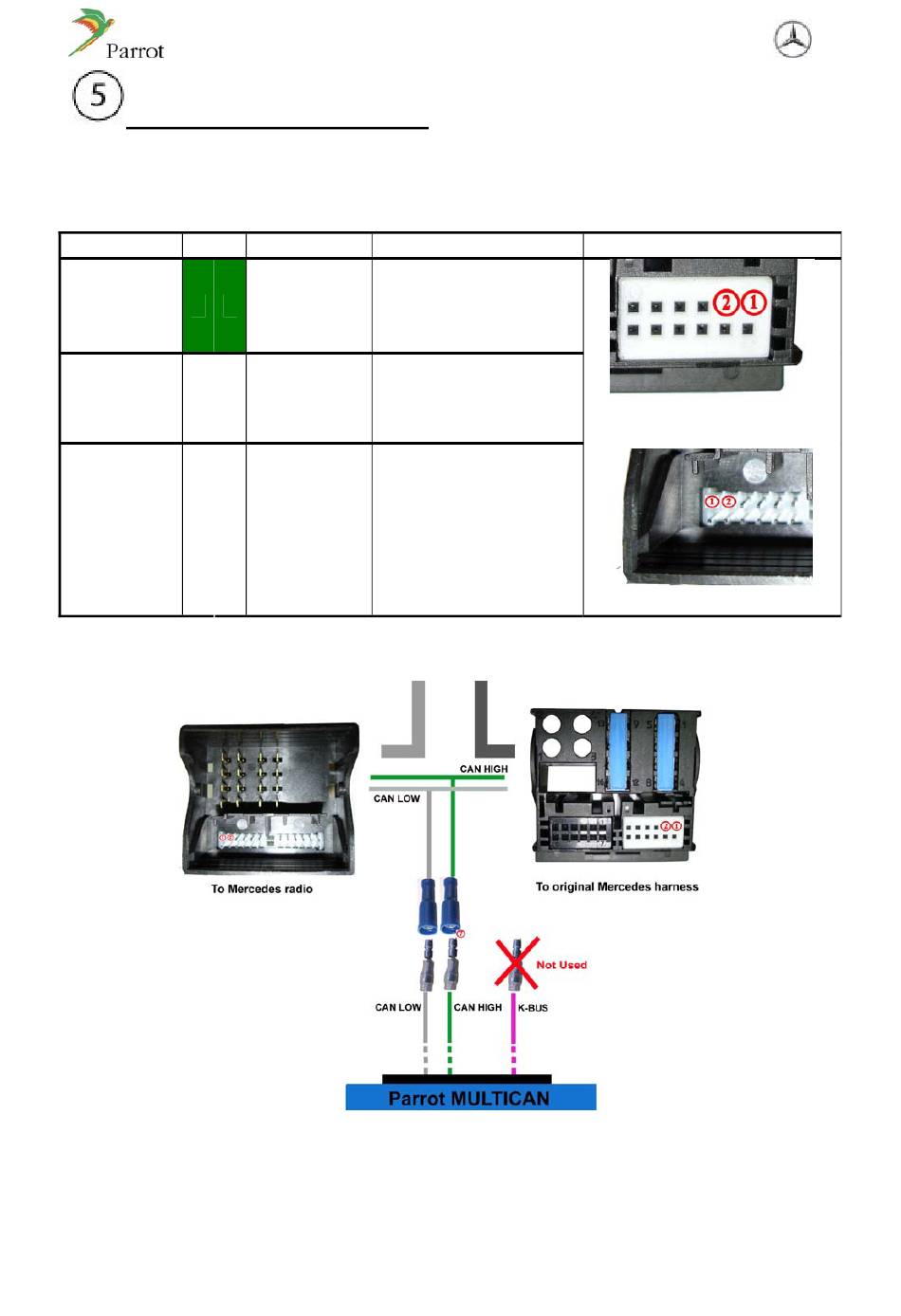

CAN Configuration Mercedes
The wires corresponding to the CAN protocol must be connected correctly to your car stereo's CAN
information. It is important to follow the wiring diagram for your vehicle. We would advise our
customers to have the interface fitted by a professional.
N°
2
1
Not used
Connect the white wire corresponding to CAN Low to pin 1.
Connect the green wire corresponding to CAN High to pin 2.
Color Description
Green CAN High
White CAN Low
Violet K-BUS
Fakra male connexion
Fakra female connexion
