Congratulations on the purchase of a new ColorDMD display. The ColorDMD
will enhance your pinball machine by introducing color to the dot matrix
display graphics produced by the game.
Be sure to turn OFF the power to the pinball machine before
!
installing the ColorDMD display.

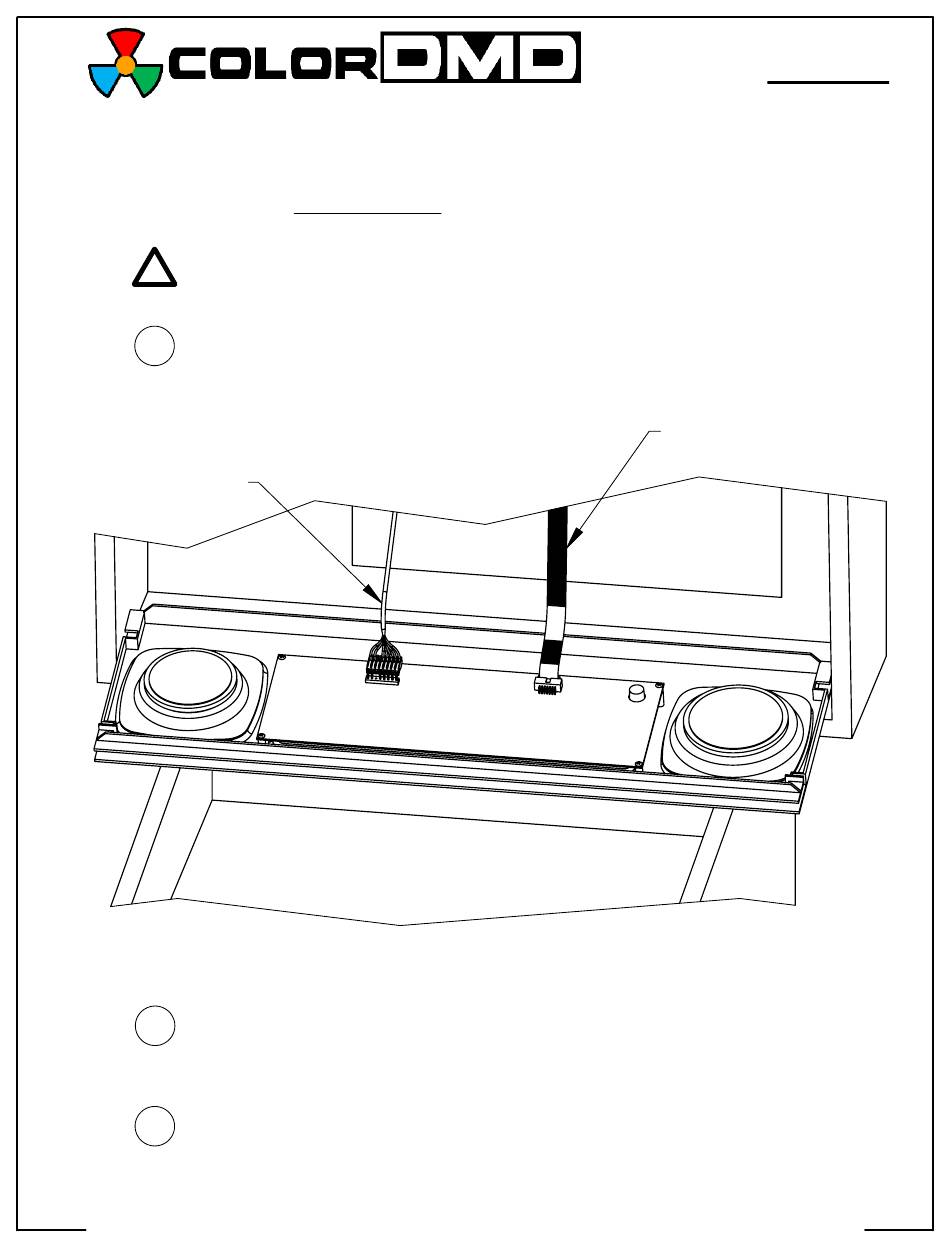

Carefully remove the translite from the backbox and then lower
1
the speaker panel to the position shown in Fig. A to gain access
STEP
to the backbox.
8-Pin DMD Power Cable
(Remove entire cable
from the game)
Disconnect the DMD power and ribbon cables from the DMD.
2
Unplug the DMD power cable from the high-voltage A/V board
STEP
J-604 (see Fig. E), and remove this cable from the backbox.
Remove and save all four DMD mounting screws. Remove the
3
STEP
original DMD from the game and store it in a safe place.
ALL RIGHTS RESERVED - US PATENT 8,773,452 B2 - COPYRIGHT 2016 - COLORDMD DISPLAYS LLC
Tools Required : Phillips Screwdriver
Figure A
Installation Instructions
for WPC95 - CHROMA
14-Pin DMD Ribbon Cable
(Unplug cable from DMD
and leave other end
connected to game)
