ColorDMD CHROMA eDP S.A.M. Installation Instructions

Congratulations on the purchase of a new ColorDMD display. The ColorDMD
will enhance your pinball machine by introducing color to the dot matrix
display graphics produced by the game.

Tools Required :

Be sure to turn OFF the power to the pinball machine before
!
installing the ColorDMD display.
Carefully remove the translite from the backbox and then lower
1
the speaker panel to the position shown in Fig. A to gain access
STEP
to the backbox.
Disconnect the DMD power and ribbon cables from the DMD
2
(see Fig. A). Completely remove the DMD Power Cable from
STEP
the game by unplugging the other end in the backbox.
Remove the eight DMD assembly mounting screws. Remove
3
the original DMD assembly from the game and store it
STEP
in a safe place.
If pinball machine has a transparent colored plastic film attached
to the wooden speaker panel, carefully remove and store it with
4
STEP
original DMD. If the DMD lens on the pinball machine is not clear,
a clear lens (sold separately) must be installed.
ALL RIGHTS RESERVED - US PATENT 8,773,452 B2 - COPYRIGHT 2016 - COLORDMD DISPLAYS LLC
1/4" Nut Driver
•
Phillips Screwdriver
•
Plasma Type DMD Power Cable
LED Type DMD Power Cable
LED or Plasma DMD Assembly
DMD Ground Cables
(Location may vary)

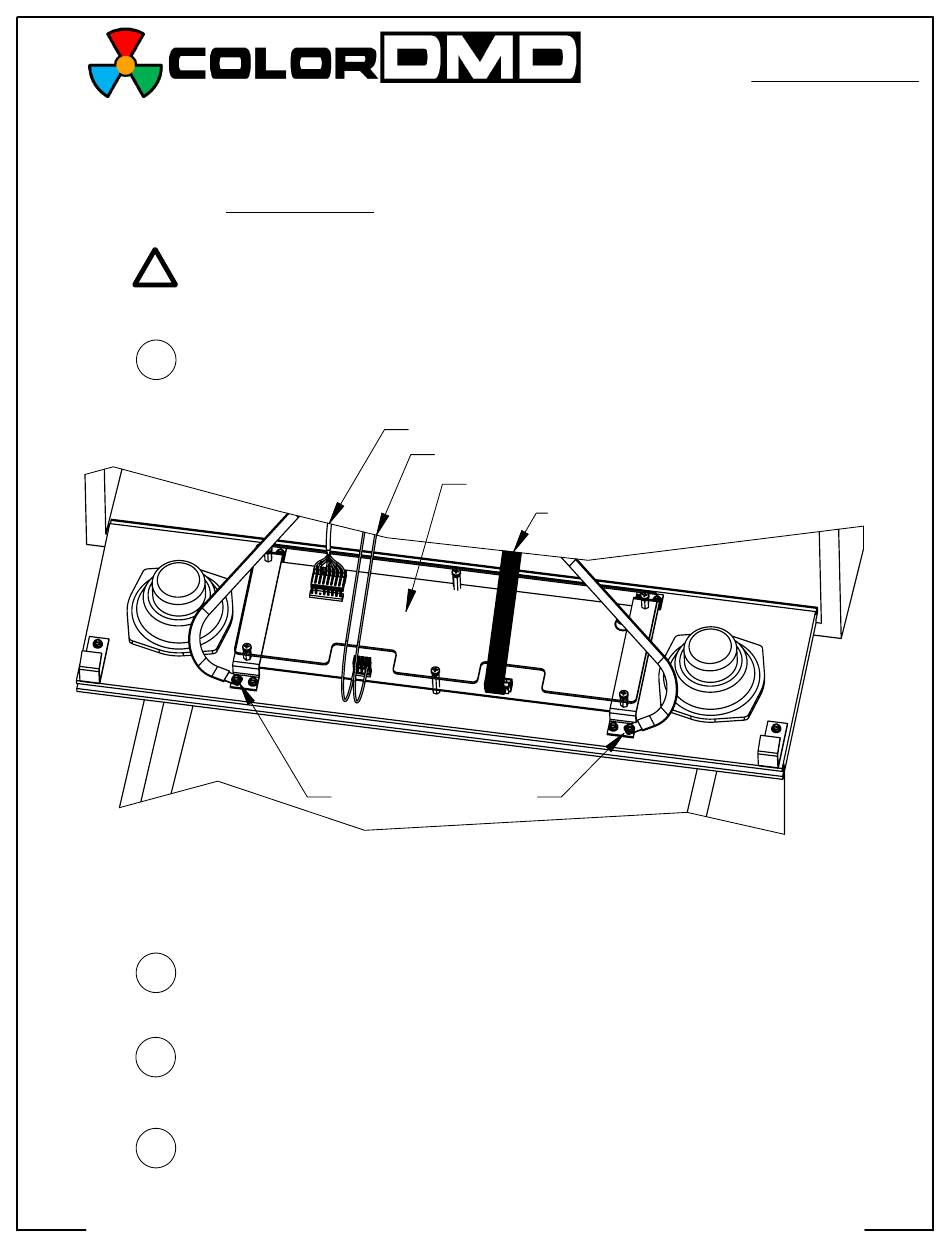

Figure A
Installation Instructions
for S.A.M. - CHROMA eDP
}
Game will have only one
DMD power cable depending
upon type of DMD installed
(LED or Plasma).
14-Pin DMD Ribbon Cable
