ColorDMD White Star Installation Instructions

Congratulations on the purchase of a new ColorDMD display. The ColorDMD
will enhance your pinball machine by introducing color to the dot matrix
display graphics produced by the game.

Tools Required :

Be sure to turn OFF the power to the pinball machine before
!
installing the ColorDMD display.
Carefully remove the translite from the backbox and then lower
1
the speaker panel to the position shown in Fig. A to gain access
STEP
to the backbox.
5v Power Cable (J-3)
Plasma DMD Assembly
DMD Power Cable
Disconnect the DMD power cable from the DMD and and secure it
2
aside (it is not used for the ColorDMD). Also disconnect the 5v power
STEP
cable at J-3 on Display Controller Board.
Disconnect both ribbon cables from J1 and J2 on the Display Controller
3
Board. Remove the Display Controller Board from the metal
STEP
bracket on the DMD assembly.
Remove the eight DMD assembly mounting screws. Remove
4
the original DMD assembly from the game and store it in
STEP
a safe place.
ALL RIGHTS RESERVED - US PATENT 8,773,452 B2 - COPYRIGHT 2014 - COLORDMD DISPLAYS LLC
1/4" Nut Driver
•
Phillips Screwdriver
•
14-Pin DMD Ribbon Cable (J-2)
DMD Ground Cables
(Location may vary)

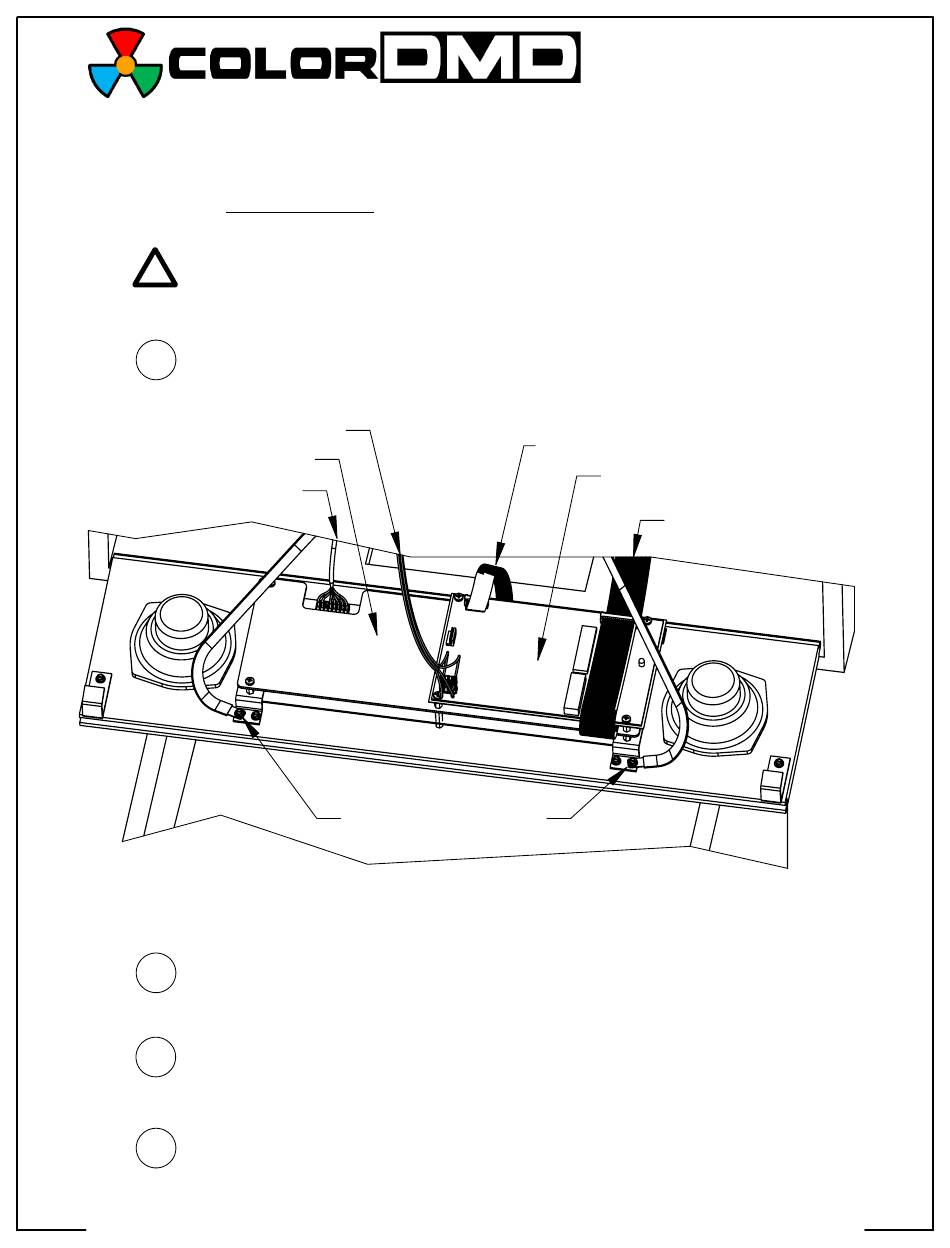

Figure A
Installation Instructions
for White Star
Display Controller Board
(Required for ColorDMD)
26-Pin Ribbon Cable (J-1)
