ColorDMD WPC Installation Instructions

Congratutions on the purchase of a new ColorDMD display. The ColorDMD
will enhance your pinball machine by introducing color to the dot matrix
display graphics produced by the game.
Tools Required :
Be sure to turn OFF the power to the pinball machine before
!
installing the ColorDMD display.
Carefully remove the translite from the backbox and then lower
1
the speaker panel to the position shown in Fig. A to gain access
STEP
to the backbox.
8-Pin DMD Power Cable
(Remove entire cable
from the game)
Ground Lug
Disconnect the DMD power and ribbon cables from the DMD.
2
Unplug the DMD power cable from the high-voltage A/V board
STEP
J-604 (see Fig. E), and remove this cable from the backbox.
Remove and save all of the DMD mounting hardware. Remove
3
STEP
the original DMD from the game and store it in a safe place.
If pinball machine has a lamp board mounted to the speaker
4
panel, disconnect cable and remove the lamp board (see Fig. A).
STEP
Store lamp board and mounting hardware in a safe place.
ALL RIGHTS RESERVED - PATENT PENDING - COPYRIGHT 2012 - COLORDMD DISPLAYS LLC
Phillips Screwdriver
•
5/16" nut driver
•
1/4" nut driver (if game has a lamp board
•
mounted to the speaker panel)
Cable connected to lamp
board mounted to speaker
panel. Not all games use this.
Unplug cable and remove
lamp board if present.

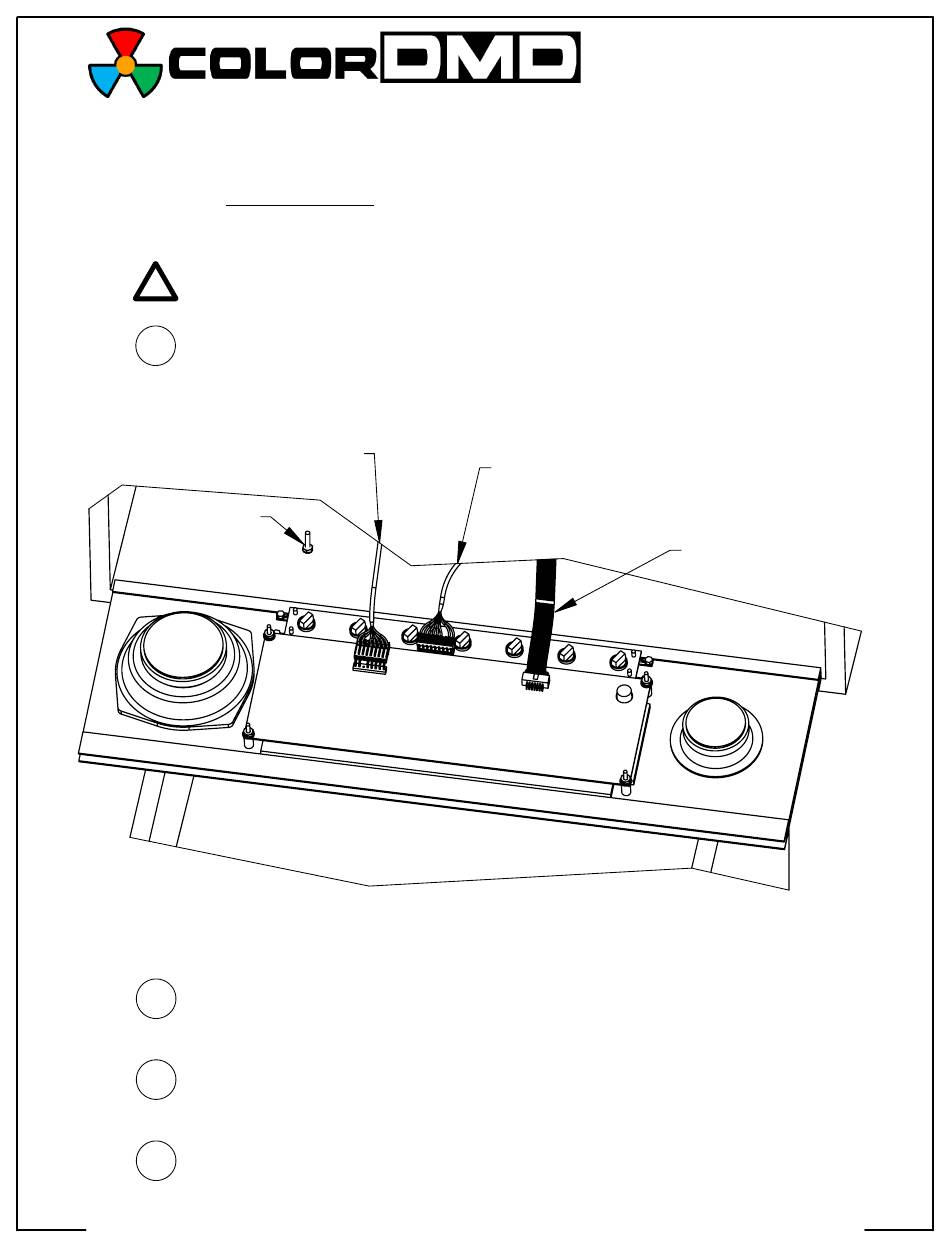

Figure A
Installation Instructions
for WPC
14-Pin DMD Ribbon Cable
(Unplug cable from DMD
and leave other end
connected to game)
