Congratutions on the purchase of a new ColorDMD display. The ColorDMD
will enhance your pinball machine by introducing color to the dot matrix
display graphics produced by the game.
Be sure to turn OFF the power to the pinball machine before
!
installing the ColorDMD display.
Carefully remove the translite from the backbox and then lower
1
the speaker panel to the position shown in Fig. A to gain access
STEP
to the backbox.
8-Pin DMD Power Cable
(Remove entire cable
from the game)
Disconnect the DMD power and ribbon cables from the DMD.
2
Unplug the DMD power cable from the high-voltage A/V board
STEP
J-604 (see Fig. E), and remove this cable from the backbox.
Remove and save all four DMD mounting screws. Remove the
3
STEP
original DMD from the game and store it in a safe place.
ALL RIGHTS RESERVED - PATENT PENDING - COPYRIGHT 2012 - COLORDMD DISPLAYS LLC
Tools Required : Phillips screwdriver
•

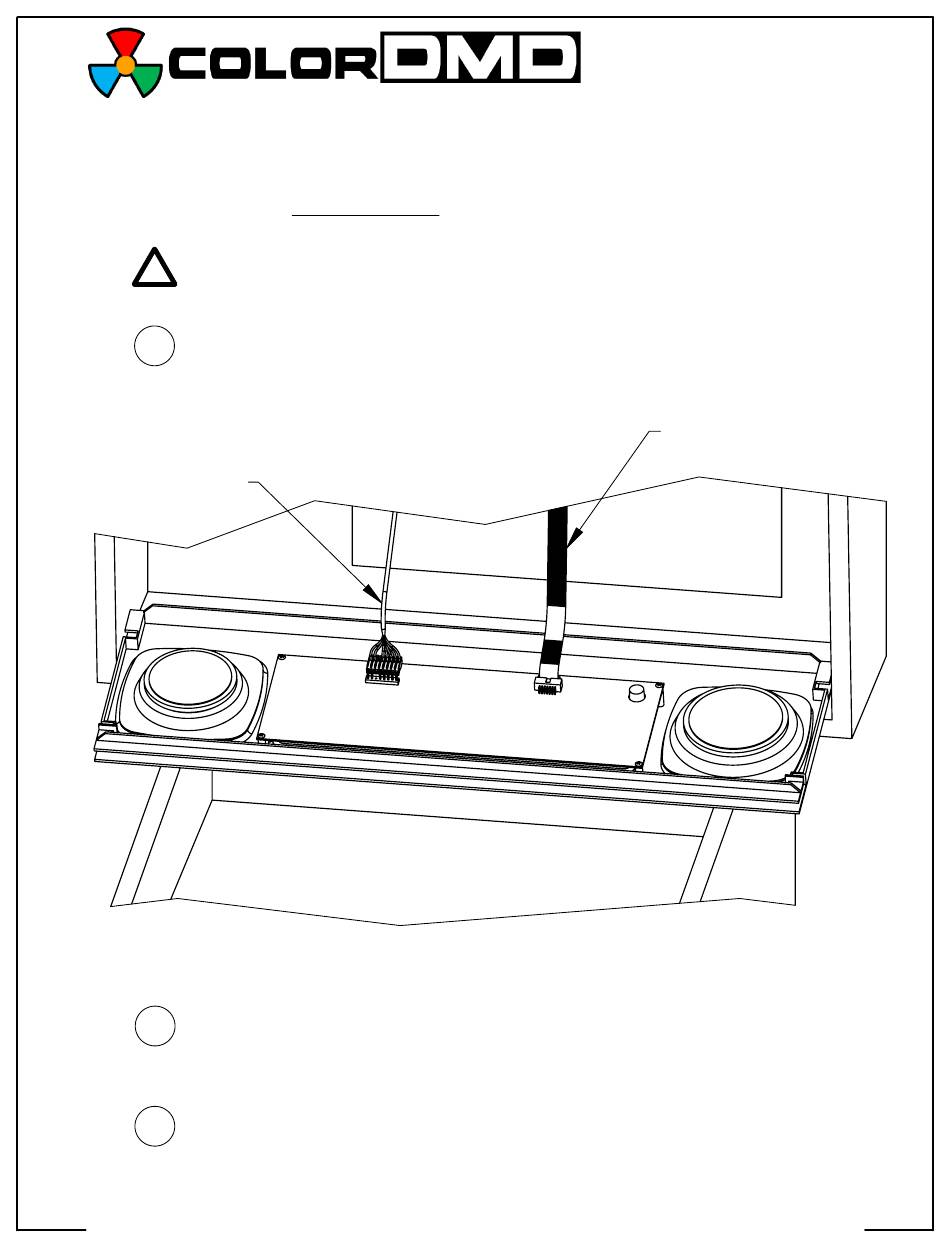

Figure A
WPC95 Installation
Instructions
14-Pin DMD Ribbon Cable
(Unplug cable from DMD
and leave other end
connected to game)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPC95 and is the answer not in the manual?

Questions and answers

Related Manuals for ColorDMD WPC95

Summary of Contents for ColorDMD WPC95

  • Page 1 J-604 (see Fig. E), and remove this cable from the backbox. Remove and save all four DMD mounting screws. Remove the STEP original DMD from the game and store it in a safe place. ALL RIGHTS RESERVED - PATENT PENDING - COPYRIGHT 2012 - COLORDMD DISPLAYS LLC...
  • Page 2 Remove the protective film from the front side of the new STEP ColorDMD display. Position the ColorDMD face down in the orientation shown in Fig. B on the speaker panel and align the four WPC95 mounting STEP holes (see Fig. C). Figure B...
  • Page 3 ColorDMD Figure D Plug the other end of the new ColorDMD Power Cable (see Fig. D) into J-138 on the WPC95 Power Driver Board (see Fig. E). If an STEP existing cable is currently plugged into J-138, disconnect it before...
  • Page 4 ColorDMD Menu button (See Fig. F) to access the STEP ColorDMD on-screen menu to customize the display settings. For additional information regarding display settings please visit our website at www.colordmd.com . ALL RIGHTS RESERVED - PATENT PENDING - COPYRIGHT 2012 - COLORDMD DISPLAYS LLC...
