ColorDMD CHROMA eDP WPC Installation Instructions

Congratulations on the purchase of a new ColorDMD display. The ColorDMD
will enhance your pinball machine by introducing color to the dot matrix
display graphics produced by the game.
Tools Required :
Be sure to turn OFF the power to the pinball machine before
!
installing the ColorDMD display.
Carefully remove the translite from the backbox and then lower
1
the speaker panel to the position shown in Fig. A to gain access
STEP
to the backbox.
8-Pin DMD Power Cable
(Remove entire cable
from the game)
Ground Lug
Disconnect the DMD power and ribbon cables from the DMD.
2
Unplug the DMD power cable from the high-voltage A/V board
STEP
J-604 (see Fig. E), and remove this cable from the backbox.
Remove and save all of the DMD mounting hardware. Remove
3
STEP
the original DMD from the game and store it in a safe place.
If pinball machine has a lamp board mounted to the speaker panel
4
(see Fig. A), it can remain in place. Use alternate ColorDMD
STEP
mounting holes shown in Fig. C. Ensure lamp board PCB does not
contact ColorDMD metal bracket.
ALL RIGHTS RESERVED - US PATENT 8,773,452 B2 - COPYRIGHT 2016 - COLORDMD DISPLAYS LLC
Phillips Screwdriver
•
5/16" nut driver
•
1/4" nut driver (if game has a lamp board
•
mounted to the speaker panel)
Cable connected to lamp
board mounted to speaker
panel. Lamp boards are not
present on most games.

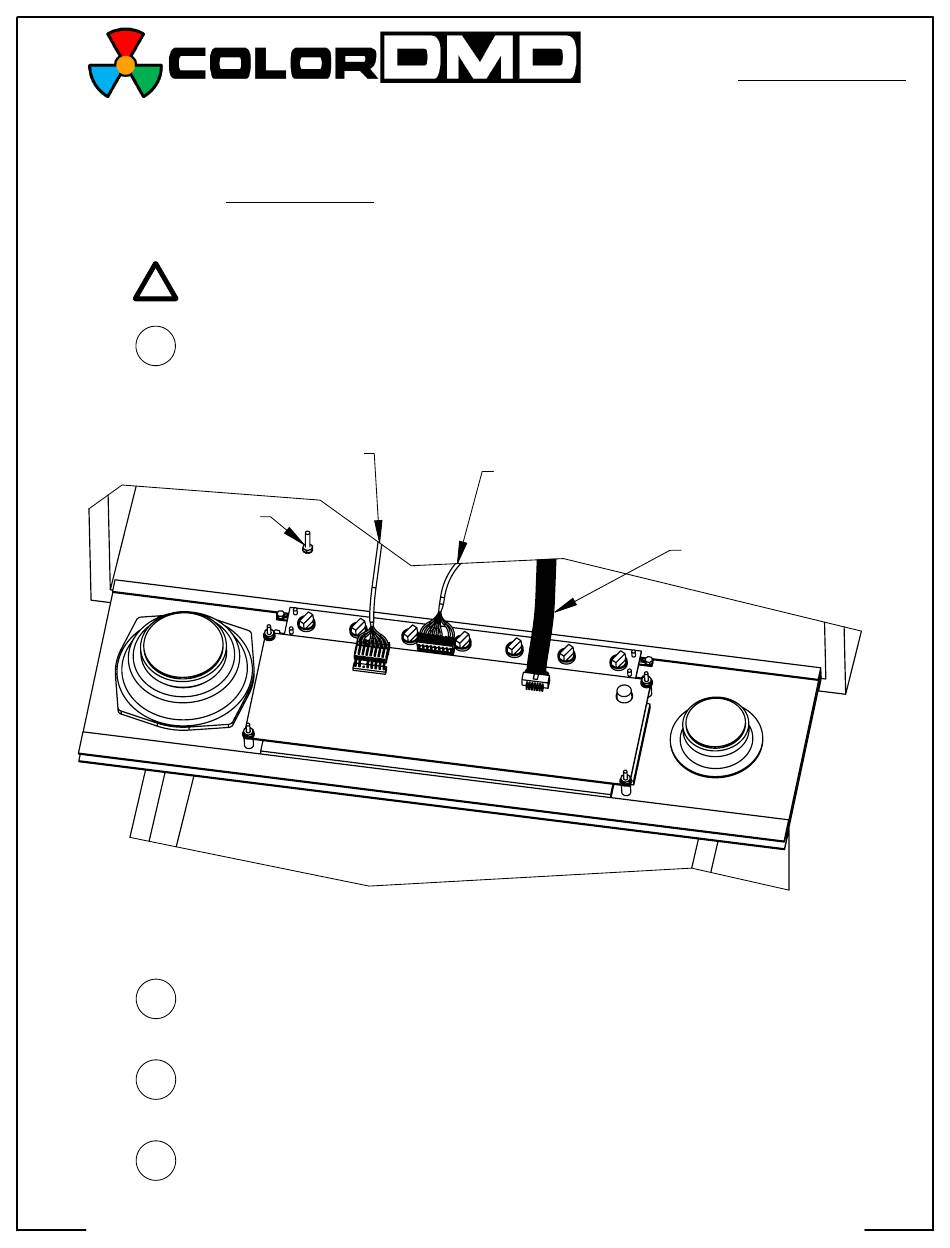

Figure A
Installation Instructions
for WPC - CHROMA eDP
14-Pin DMD Ribbon Cable
(Unplug cable from DMD
and leave other end
connected to game)
