ColorDMD Gottlieb CHROMA LCD Installation Instructions

Congratulations on the purchase of a new ColorDMD display. The ColorDMD
will enhance your pinball machine by introducing color to the dot matrix
display graphics produced by the game.
Tools Required :
Be sure to turn OFF the power to the pinball machine before
!
installing the ColorDMD display.
Carefully remove the translite from the backbox and then lower
1
the speaker panel to the position shown in Fig. A to gain access
STEP
to the backbox.
Disconnect the DMD power and ribbon cables from the DMD
2
(see Fig. A). Secure the DMD Power Cable in a position and
STEP
location that will prevent it from contacting any electronics.
Remove and save all of the original DMD mounting hardware.
3
Remove the original DMD assembly from the game and
STEP
store it in a safe place.
If pinball machine has a transparent colored plastic film attached
to the wooden speaker panel, carefully remove and store it with
4
STEP
original DMD. If the speaker panel plastic has red translucent paint
covering the viewable DMD area, it must be removed.
ALL RIGHTS RESERVED - US PATENT 8,773,452 B2 - COPYRIGHT 2021 - COLORDMD DISPLAYS LLC
5/16" Nut Driver
•
3/8" Nut Driver
•
Phillips Screwdriver
•
8-pin DMD Power Cable
(Unplug from the DMD and
prevent the connector from
contacting any electronics)

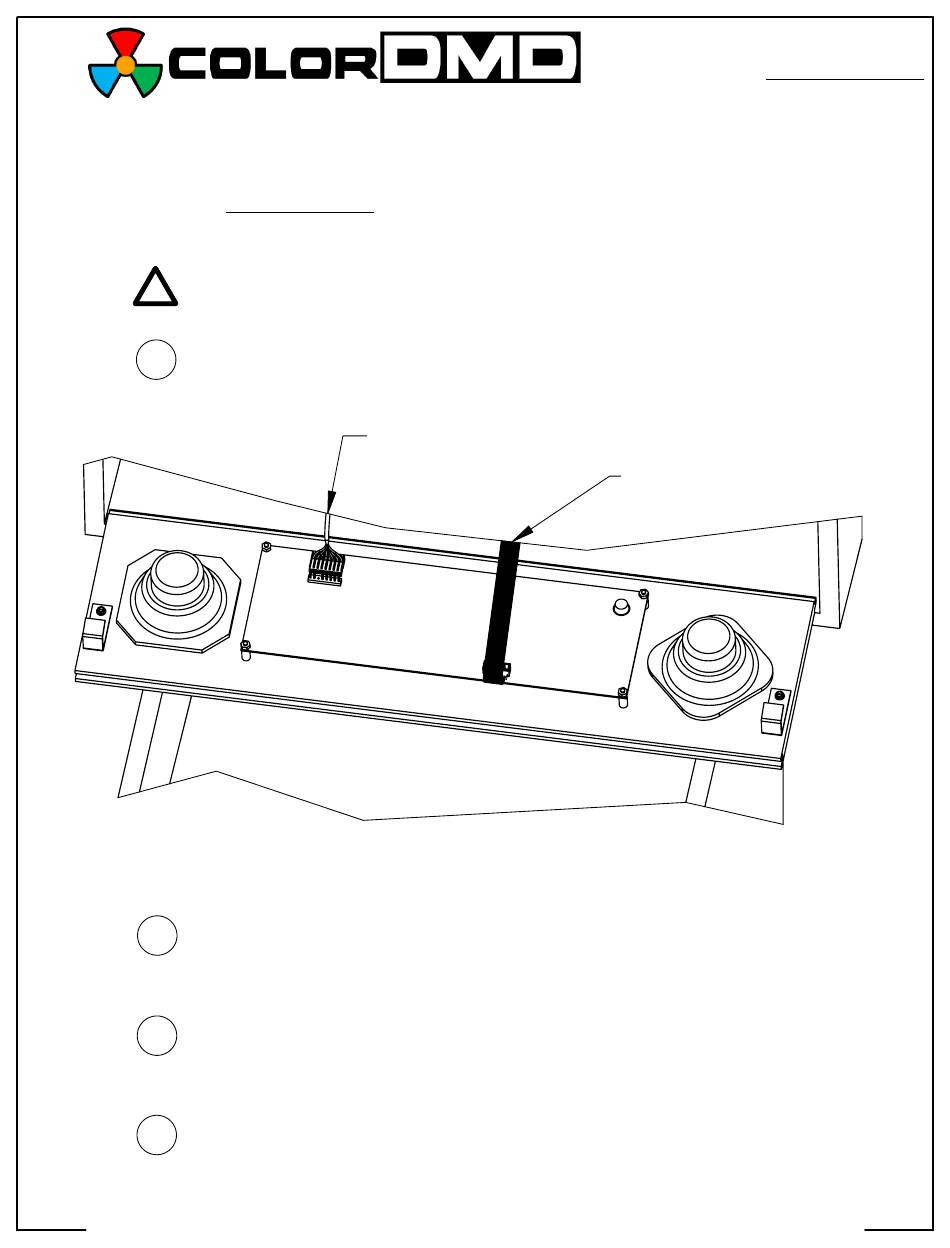

Figure A
Installation Instructions
for Gottlieb - CHROMA LCD
®
14-Pin DMD Ribbon Cable
(Unplug from DMD and leave
other end connected to game)
