4 ASSEMBLY, INSTALLATION & CONNECTIONS
4.11 Stage 1 - Vessel Assembly:

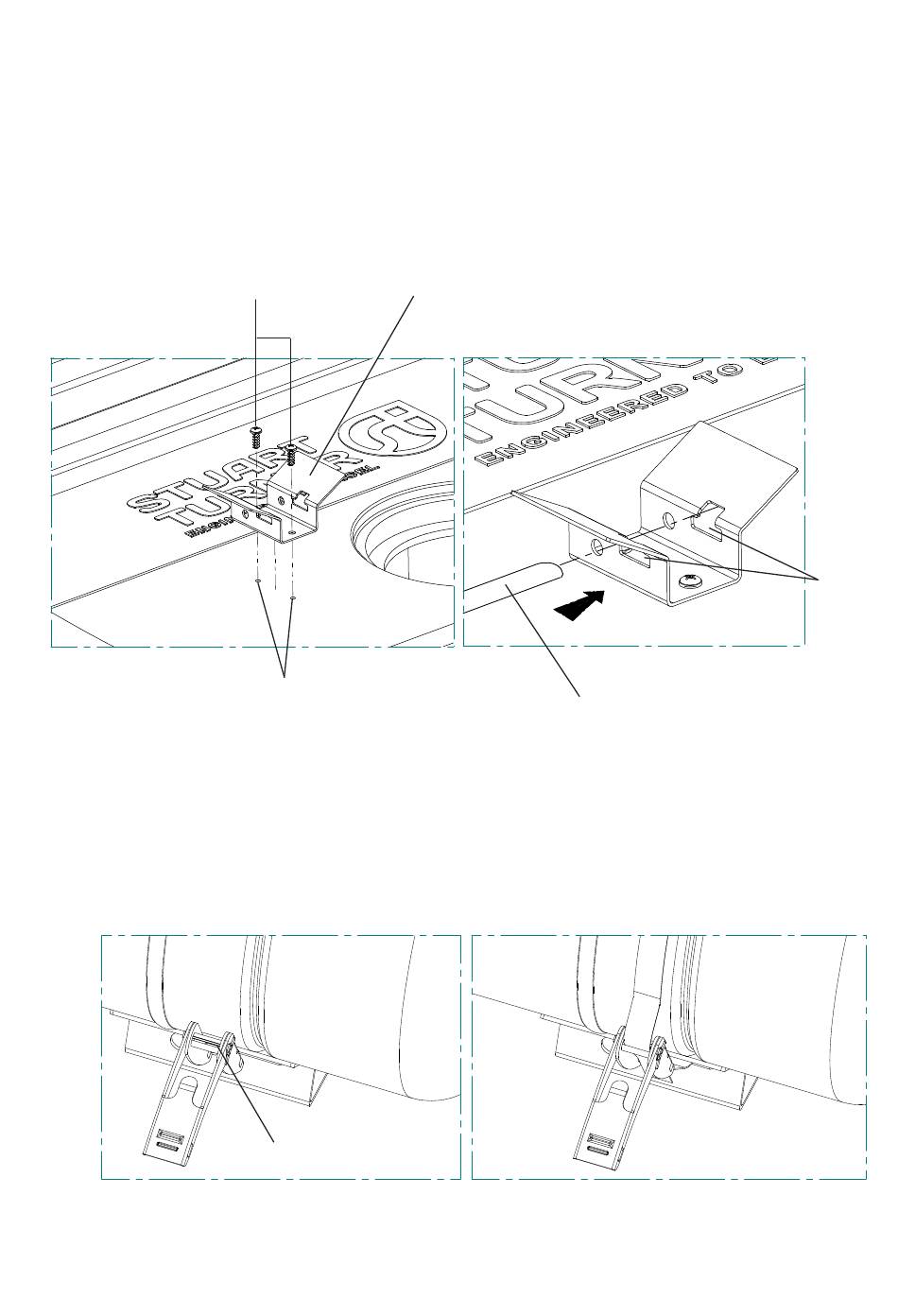

Step 1
Secure mounting bracket to tank using factory drilled holes with supplied
6 mm screws. Do not drill additional holes into the tank (Fig. 4).
Step 2
Feed the strap through the slots in the bracket and place the pressure
vessel on the bracket (Fig. 5).
Fig. 4
Step 3
Wrap the strap around the vessel and feed through the slot in the wratchet
pin. If the slot is not positioned correctly to feed the strap through, operate
the wratchet to rotate the pin (Figs 6 & 7).
Mounting screws
Factory drilled holes
Slot in ratchet pin
Fig. 6
Mounting bracket
Strap
- 10 -
Fig. 5
Fig. 7
Strap
holes
Cont ...
