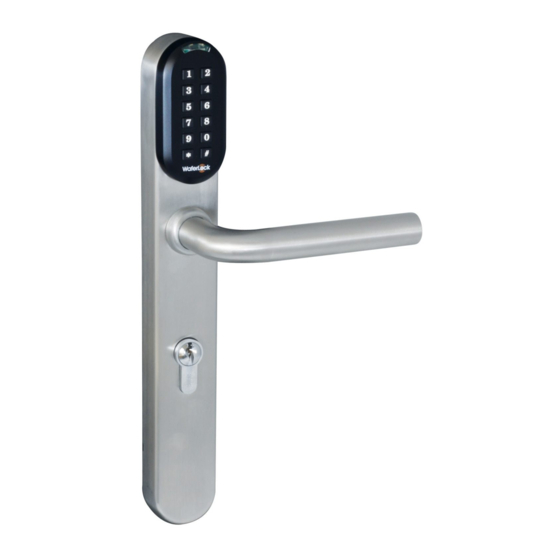

WEL-7103 Duo Electronic Lock User Manual
Specification:
Main Feature:
2 in 1 lock: access the lock by user code or user card
•
Transponder: Mifare Classic and any ISO 14443A card.
•
Transponder Reading distance: up to 3cm
•
Backlit LED keypad when in low light environment
•
Acoustic warning beeping sound when battery power is low.
•
Total maximum user code & user card: 250 users
•
User Code length: 4~6 digits
•
Default Master Code: 123456
•
◦ Maximum Master code length: 4~6 digits
Supports external power supply kit by USB
•
Adjustable opening mode:
•
◦ Standard + Single Mode (open 6 seconds then close)
◦ Standard + Toggle Mode (one time to open, one time to lock)
◦ Toggle + Single Mode (switch between always open, always close)
◦ Toggle + Dual Mode (user card then user code, switch between always
open, always close)
Technical Specification:
Battery Life: Standby 3 years or operation 50,000 times
•
Battery spec: 3pcs 1.5V, AAA
•
IP 54
•
Key-override on escutcheon
•
Available distance: 70mm, 72mm, 85mm, 92mm
•
Operation temperature: -20ºC~70ºC
•
CE Certified
•
2011. Nov 3
Advertisement
Related Manuals for Waferlock WEL-7103
Summary of Contents for Waferlock WEL-7103
- Page 1 WEL-7103 Duo Electronic Lock User Manual Specification: Main Feature: 2 in 1 lock: access the lock by user code or user card • Transponder: Mifare Classic and any ISO 14443A card. • Transponder Reading distance: up to 3cm • Backlit LED keypad when in low light environment •...
- Page 2 WEL-7103 Duo Electronic Lock User Manual Warning 1. If an invalid user code has been entered to the lock more than 3 times, the anti-theft function will be initiated for one minute. During this period the keypad will not be able to be used.
- Page 3 WEL-7103 Duo Electronic Lock User Manual Add new user 1. Press * 1 # 1. If the lock is learned with 250 users already, beep 2 times, flash 2 times red LED, then standby. 2. Enter Master Code, then press # 1.
- Page 4 WEL-7103 Duo Electronic Lock User Manual Delete single existing user 1. Press * 2 # 2. Enter current Master Code, then press # 1. Master correct: beep 1 time 2. Master incorrect: beep 2 times, flash 2 times red LED, then standby.
- Page 5 WEL-7103 Duo Electronic Lock User Manual Set the door as Toggle Mode 1. Press * 4 # 2. Enter current Master Code, then press # 1. Master correct: beep 1 time, flash 1 time green LED. 2. Master incorrect: beep 2 times, flash 2 times red LED, then standby.
- Page 6 WEL-7103 Duo Electronic Lock User Manual Combination of lock modes Standard Toggle Single This is a manufacturer When lock is in Toggle + default setting. When the Single mode, the lock will lock is in Standard + Single switch between “always mode, the lock will open open”...
- Page 7 WEL-7103 Duo Electronic Lock User Manual During entering user code, if a user card approached the reader, the lock will • interrupt then react to the user card first. Low Power Warning If the lock battery is low, no matter after used by user card or entered user •...
- Page 8 WEL-7103 Duo Electronic Lock User Manual Serial No. / Name list Serial No. User Name Remark 2011. Nov 3...
- Page 9 WEL-7103 Duo Electronic Lock User Manual 2011. Nov 3...
- Page 10 WEL-7103 Duo Electronic Lock User Manual 2011. Nov 3...
- Page 11 WEL-7103 Duo Electronic Lock User Manual 2011. Nov 3...
- Page 12 WEL-7103 Duo Electronic Lock User Manual 2011. Nov 3...
- Page 13 WEL-7103 Duo Electronic Lock User Manual 2011. Nov 3...
- Page 14 WEL-7103 Duo Electronic Lock User Manual 2011. Nov 3...
- Page 15 WEL-7103 Duo Electronic Lock User Manual 2011. Nov 3...
