BSSBM 1
SOUNDBAR MOUNT
DESIGNED FOR
Sonos Beam
™
INSTRUCTION MANUAL

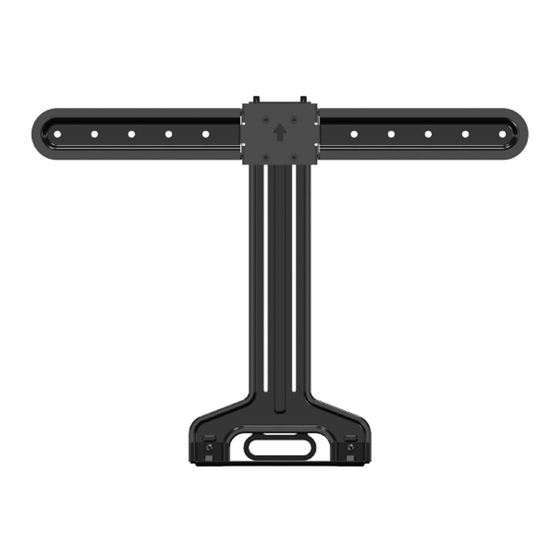

This mount is designed
to support Sonos
Beam
®
soundbar and works with
SANUS and other TV
.
mount brands
If you have any questions along the way, our US-based
™
WE'RE HERE TO HELP
install experts are standing by to help.
US:
800-359-5520
Call us at:
US:
SANUS.com/chatSP
Or, chat at::
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sanus BSSBM1
Summary of Contents for Sanus BSSBM1
- Page 1 This mount is designed to support Sonos Beam ™ ® soundbar and works with SANUS and other TV mount brands WE’RE HERE TO HELP If you have any questions along the way, our US-based install experts are standing by to help. 800-359-5520 Call us at: SANUS.com/chatSP...
- Page 2 Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, DO NOT return the damaged item to your dealer; contact Sanus (see back page). Never use damaged parts! NOTE: Not all hardware included in this kit will be used.
- Page 3 DIMENSIONS IN. [MM] TV INTERFACE 23.62in 600mm 7.88in 200mm SPEAKER INTERFACE TOP VIEW - TV MOUNTED 2.27in 57.7mm 14.76in 375mm 1.77in 45mm 1.75in 1.75in 44.5mm 44.5mm 6.00in 152.4mm 4.89in 4.71in 124.2mm 119.5mm FULLY ASSEMBLED MOUNT TOP VIEW SIDE VIEW 26.39in 670.3mm 2.76in 70.2mm...
- Page 4 ATTACH SOUNDBAR MOUNT TO YOUR TV DO NOT ATTACH MOUNT TO TOP OF TELEVISION. If reusing Spacer Top of TV If reusing Spacer...
- Page 5 DO NOT OVERTIGHTEN COULD DAMAGE MONITOR OR HARDWARE Screw Washer Washer Bracket Bracket Spacer Select Screws Screw Washer Washer Spacer Spacer Bracket Bracket TV MOUNT Spacer TV MOUNT...
- Page 6 ATTACH YOUR SOUNDBAR TO THE MOUNT Raise soundbar bracket up to adjust. TIP: Leave 1/2” to 1” (2 cm - 3 cm) gap for microphone or button use.
- Page 7 UPWARD ADJUSTMENT Raise soundbar bracket up to adjust. DOWNWARD ADJUSTMENT IMPORTANT: CAUTION! Support the soundbar FIRST PUSH UP on the bottom as you pull on the release handle and of soundbar bracket BEFORE lower the soundbar bracket. unlocking the mount...
- Page 8 Legrand assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document. ©2020 Legrand AV Technologies. All rights reserved. Sanus is a division of Legrand. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
