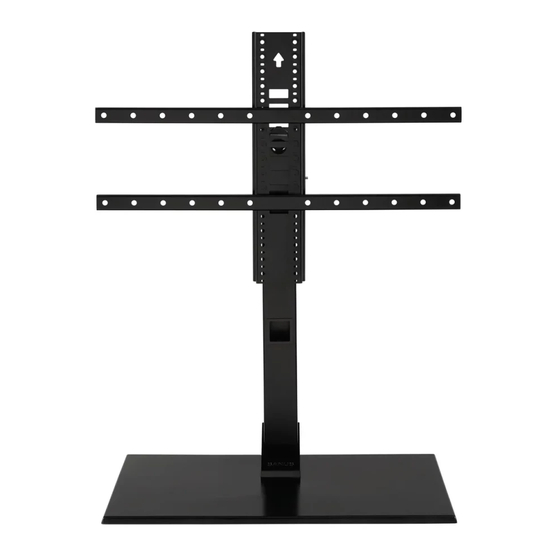

BSTV2
Swivel TV Base
INSTRUCTION MANUAL
Texto en español, página 16
WE'RE HERE TO HELP
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/3088
Our install experts are
standing by to help.
Call us at:
US: +1 (800) 359-5520
Chat at:
SANUS.com/chatSP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSTV2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanus BSTV2

  • Page 1 BSTV2 Swivel TV Base INSTRUCTION MANUAL Texto en español, página 16 WE’RE HERE TO HELP Want to watch a video that Our install experts are shows how easy this DIY standing by to help. project will be? Call us at:...
  • Page 2: Important Safety Instructions

    If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service. TV Weight Limit Tools If your TV (plus accessories) Needed (including accessories) weighs MORE, this mount is NOT compatible. 125 lbs. DO NOT EXCEED Visit SANUS.com or call (56.6 kg) customer service to find a Level Screwdriver compatible mount.
  • Page 3 Dimensions TV INTERFACE MAX VESA 23.62in 600mm 15.75in 400mm MAX VESA MIN VESA 3.94in 100mm MIN VESA 3.94in 100mm HEIGHT ADJUSTMENT TOP VIEW - SWIVEL SIDE VIEW - EXTENDED 22.28in 566mm 8X 0.98in 25mm 5.37in 7.87in HEIGHT 136.5mm 200mm ADJUST TOTAL 35.57in HEIGHT...
  • Page 4 Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
  • Page 5 STEP 1 STEP 2 STEPS 2 and 3 Post M5 x 6mm Lock Screw Vertical Height Adjustment Bracket 1/4-20 x 3/8 in. Base Screw Hex Key 10-32 x 1/2 in. Bracket Screw 5/32 in. Base...
  • Page 6 STEP 1 Attach TV Brackets to TV 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length NOTE: If your TV included inset Test the three TV screw diameters (M6, or M8) For flat-back TVs, Spacers supplied for: spacers or adapters, in the threaded inserts on the back of your TV to use them UNDER the ●...
  • Page 7 1.3 Attach Horizontal Brackets : Flat Position your TV brackets over your TV hole pattern - making sure the brackets are centered. Secure TV brackets using your selection for screw/washer ( Back) or screw/washer/spacer ( : Round Back / Extra Space). CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step.
  • Page 8 1.4 Attach Vertical Bracket Make sure the vertical height adjustment bracket is CENTERED on the TV and secure using interface screws IMPORTANT: Ensure all brackets are securely fastened before moving on to the next step.
  • Page 9 STEP 2 Attach Post to Base...
  • Page 10 STEP 3 Attach TV to Post Determine the height from the base that you would like your TV to hang. Examples Highest Position Lowest Position Lowest TV Position Highest TV Position...
  • Page 11 Hang the TV/bracket assembly (at your desired height) onto the post NOTE: Leave enough space under your TV, for any accessories that you may want to place on the shelf.
  • Page 12 Secure the TV/bracket assembly to post with two lock screws IMPORTANT: Keep the base clear while installing TV. IMPORTANT: Ensure TV/bracket assembly is securely fastened to post before moving on to the next step.
  • Page 13: Cable Management

    Cable Management...
  • Page 14 Adjustments LEVEL TILT IMPORTANT: DO NOT force the screw beyond its limit.
  • Page 15 To Remove Your TV SWIVEL...
  • Page 16: Instrucciones De Seguridad Importantes

    INSTRUCCIONES DE SEGURIDAD IMPORTANTES: ESPAÑOL – LEA TODO ESTE MANUAL ANTES DE UTILIZAR ESTE PRODUCTO – GUARDE ESTAS INSTRUCCIONES PRECAUCIÓN: Evite posibles lesiones personales y daños materiales. PRECAUCIÓN: El fabricante no se responsabiliza por ningún daño o lesión resultante del montaje incorrecto o del uso indebido. ADVERTENCIA Si se supera el peso máximo admitido, el usuario podría sufrir lesiones o podría dañarse el equipo.
  • Page 17: Herramientas Necesarias

    Si su TV (incluidos los accesorios) pesa MÁS, (incluidos los accesorios) esta montura NO es compatible. 56,6 kg Visite SANUS.com o póngase en contacto con el NO EXCEDAS (125 lbs.) Servicio de Atención al Cliente para encontrar una montura compatible.
  • Page 18 PASO 1 Colocar la placa de sujeción en el televisor página 6 1,1 Seleccione el diámetro de los tornillos para el televisor Enrosque manualmente los tornillos en los encastres roscados del dorso del televisor a fin de determinar qué diámetro de tornillos (M6 o M8) utilizar. 1,2 Seleccione la longitud de los tornillos del televisor Si su televisor tiene la parte trasera plana Y desea que esté...
  • Page 19 PASO 2 Fijar el poste a la base página 9 PASO 3 Fijar el poste al televisor página 10 Determine la posición del soporte vertical de ajuste de altura 2. Determine a qué altura de la base desea colgar su televisor. NOTA: deje espacio suficiente para los accesorios que posiblemente desee colocar en el estante.
  • Page 20 Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document. ©2022 Legrand AV Inc. All rights reserved. Sanus is a brand of Legrand. SANUS and the SANUS logo are registered trademarks of Legrand. 6901-603079 00 Legrand AV Inc.
