- Page 1 EmbedAir1000 HARDWARE MANUAL DTUS073 rev A2 – April 22, 2021...
- Page 2 ACKSYS ® will in no case be held responsible for any errors that may be contained in this document, nor for any damage, no matter how substantial, occasioned by the provision, operation or use of the equipment.
-
Page 3: Table Of Contents
Page 3 / 26 TABLE OF CONTENTS INTRODUCTION ............................. 4 MECHANICAL DIMENSIONS ........................6 BOTTOM VIEW ............................6 FRONT VIEW ............................7 LEDS AND BUTTON ............................8 LEDS................................8 SIGNALS RELOCATION ........................8 RESET ..............................10 EVALUATION BOARD ..........................10 WIRING CONNECTORS .......................... -
Page 4: Iintroduction

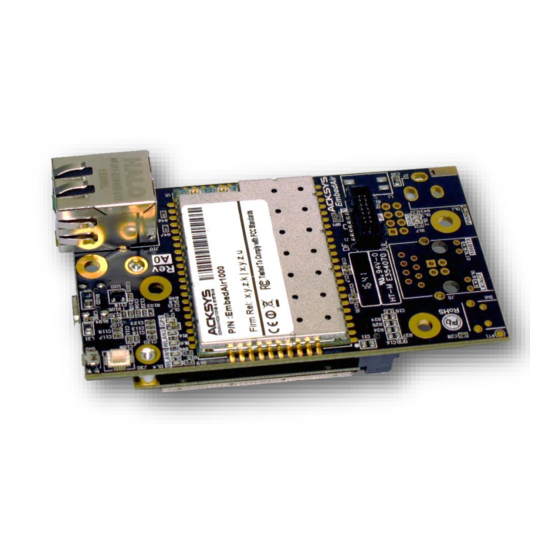

Page 4 / 26 INTRODUCTION This hardware documentation applies to the following products: ➢ EmbedAir1000/R2 (Dual WiFi & RJ version) ➢ EmbedAir1000/R7 (WiFi, 4G & RJ version) ➢ EmbedAir1000/T2 (Dual WiFi & TTL version) ➢ EmbedAir1000/T7 (WiFi, 4G & TTL version) Together with the "WaveOS User Guide (ref DTUS070)", it covers product installation,... - Page 5 Information in this document is subject to change without notice and does not represent a commitment on the part of ACKSYS. ACKSYS provides this document “as is”, without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose.
-
Page 6: Mechanical Dimensions
Page 6 / 26 MECHANICAL DIMENSIONS Bottom view All dimensions in mm ± 0.2 Mounting holes (3 x Ø3.2mm) isolated from GND and connected to RJ45 shielding For /R7 and /T7 version, the hole in is replaced by a M3 female standoff DTUS073 rev A2 –... -
Page 7: Front View
Page 7 / 26 Front view All dimensions in mm ± 0.2 For all versions SIMs & standoff for /R7 and /T7 versions SIM1 SIM2 DTUS073 rev A2 – April 22, 2021... -
Page 8: Leds And Button
Page 8 / 26 LEDS AND BUTTON Leds The leds are directly available on the EmbedAir1000: WLAN1 State WLAN1 Activity WLAN2 or WLAN2 Activity Cellular State GNSS State Ethernet Speed Power Diag Ethernet Link/Activity Signals relocation All the leds and button are also made available to the host motherboard via the P- GEN (J3) &... - Page 9 Page 9 / 26 III.2.2 Diag GREEN when product is OK and initialized during initialization (~ 40 seconds) Flashing when firmware in flash is not valid OFF or RED for more than 2min: Hardware/Software failure III.2.3 WLAN (1/2) State Fixed GREEN when radio is associated Flashing GREEN when unassociated...
-
Page 10: Reset
Page 10 / 26 III.2.7 GNSS State OFF when GNSS is disabled Fixed GREEN when position is established (3 satellites are viewed at least) Flashing GREEN when position is being searched (less than 3 satellites are viewed) Reset The Reset button allows you to re-start the product or reconfigure it to default factory settings (see "WaveOS User Guide - DTUS070"... -
Page 11: Vwiring Connectors
Page 11 / 26 WIRING CONNECTORS Pinout for /R2 and /T2 versions Top view Bottom view DTUS073 rev A2 – April 22, 2021... - Page 12 Page 12 / 26 Pinout for /R7 and /T7 versions Top view Bottom view DTUS073 rev A2 – April 22, 2021...
-
Page 13: P-Gen (J3)
Page 13 / 26 P-GEN (J3) HE10/HE13/HE14/Strip Male Header 2.54mm pitch, 2x4 pins - Compatible with HE10/HE13/HE14 Female Receptacle (ex: SAMTEC Series BCS, BSW, ESQ, ESW...) (ex: ANTELEC Series APC104, FT2...) Max current Max current In / Out Function Voltage for /R2 &... -
Page 14: P-Usr (J4)
(ex: SAMTEC Series BCS, BSW, ESQ, ESW...) (ex: ANTELEC Series APC104, FT2...) - This connector is not needed for common use of the EmbedAir1000. It only provides some additional functions. I²C and UART1&2 should be only used with ACKSYS authorization. Their incorrect use could irremediably corrupt the product and void all pertaining guaranty. -
Page 15: Rj Connector (J10)
Micro-USB CONNECTOR (J20) Micro-USB 2.0 Type B Connector This connector gives the possibility of electrically powering the module (instead of using P-GEN connector), or connecting a USB device (under ACKSYS authorization for control and driver). Warning : It is necessary to power the module from a USB source with a minimum current of 2.4A. -
Page 16: P-Eth-1G (J11)
BCS, BSW, ESQ, ESW and ANTELEC Series APC104, FT2…) This connector gives directly raw signals from the Ethernet PHY component, without insulation. The PHY used on the EmbedAir1000 is 88E1512 from Marvell. These signals can be used to relocate a RJ45 Plug far away in your system. The signals should be correctly insulated, routed with wires of equal lengths and with 100 ohms differential impedance, especially with long distance. - Page 17 Page 17 / 26 Example 2 : with transformer included in RJ DTUS073 rev A2 – April 22, 2021...
-
Page 18: Antenna Connector
Page 18 / 26 ANTENNA CONNECTOR For all versions : 2 x U.FL male connectors, from Hirose, for WiFi 1 (WLAN1) Antenna connector #1 : Antenna 1 (RF chain 1) Antenna connector #2 : Antenna 2 (RF chain 2) For /R2 & /T2 versions : 3 x U.FL male connectors, from Hirose, for WiFi 2 (WLAN2) Antenna connector #1 : Antenna 1 (RF chain 1) Antenna connector #2 : Antenna 2 (RF chain 2) -
Page 19: P-Adm (J1)
MOUNTING OF THE DEVICE Standard mounting Plug the EmbedAir1000 at a height of 12mm minimum from your motherboard, with the previously indicated connectors. On /R7 and /T7 versions, one of the holes is already mounted with a 12mm M3 female standoff (see II.1 chapter). -
Page 20: Default Configuration
- Auto-crossing - Wi-Fi 1: Disabled - Mode: Access Point - Wi-Fi: 802.11n, HT20, 5GHz band - Channel: 36 - SSID: acksys (broadcast) - Security: disabled - Wi-Fi 2: Disabled - Mode: Access Point - Wi-Fi: 802.11ac, HT20, 5GHz band... -
Page 21: Viii Technical Characteristics
Page 21 / 26 VIII TECHNICAL CHARACTERISTICS Mechanical characteristics EmbedAir1000/R2 & /R7 (RJ versions) L x l x h = 92.6 x 50.8 x 27.2 mm L x l x h = 3.62 x 1.97 x 1.06 in Dimensions (w/o antennas) EmbedAir1000/T2 &... - Page 22 Number of ports 10 BASE T, 100 BASE Tx or 1000 BASE T automatic Type of ports negotiation (HDX/FDX,10/100 Mbps), auto MDI/MDI-X RJ45 for EmbedAir1000/R2 and /R7 Connector "Free use" for EmbedAir1000/T2 and /T7 DTUS073 rev A2 – April 22, 2021...
- Page 23 Page 23 / 26 Wi-Fi 1 interface Support for IEEE 802.11a/h, 802.11b, 802.11g and Radio modes 802.11n. Chipset Qualcomm QCA95xx 802.11n : up to 300 Mbps 802.11a/h : 6 to 54 Mbps Data rates 802.11b : 1 to 11 Mbps 802.11g : 1 to 54 Mbps Frequency band for 5 GHz;...
- Page 24 Page 24 / 26 Wi-Fi 2 interface Support for IEEE 802.11a/h, 802.11b, 802.11g, Radio modes 802.11n and 802.11ac. Chipset Qualcomm QCA98xx 802.11ac : up to 1300Mbps 802.11n : up to 450 Mbps Data rates 802.11a/h : 6 to 54 Mbps 802.11b : 1 to 11 Mbps 802.11g : 1 to 54 Mbps Frequency band for...
- Page 25 Page 25 / 26 Cellular interface Category Chipset Qualcomm LTE: LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL) UMTS: DC-HSDPA: Max 42Mbps (DL) Data rates HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) GSM: EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL) GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
- Page 26 Page 26 / 26 €! a3(1)(a) : EN 62311, EN 60950-1 a3(1)(b) : ETSI EN 301 489-1, ETSI EN 301 489-17 a3(2) : ETSI EN 300 328, ETSI EN 301 893 CE Warning : Additional testing must be done to establish a DoC according to the RED directive (old R&TTE) of your whole product (Enclosure, carrier board with the EmbedAir module and its power supply, RF cables and antennas).
