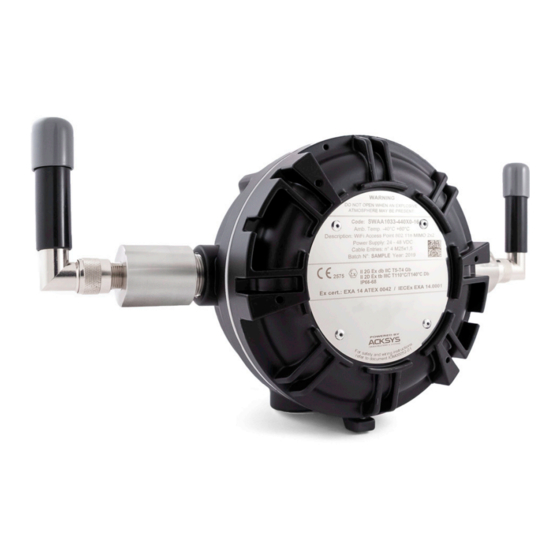

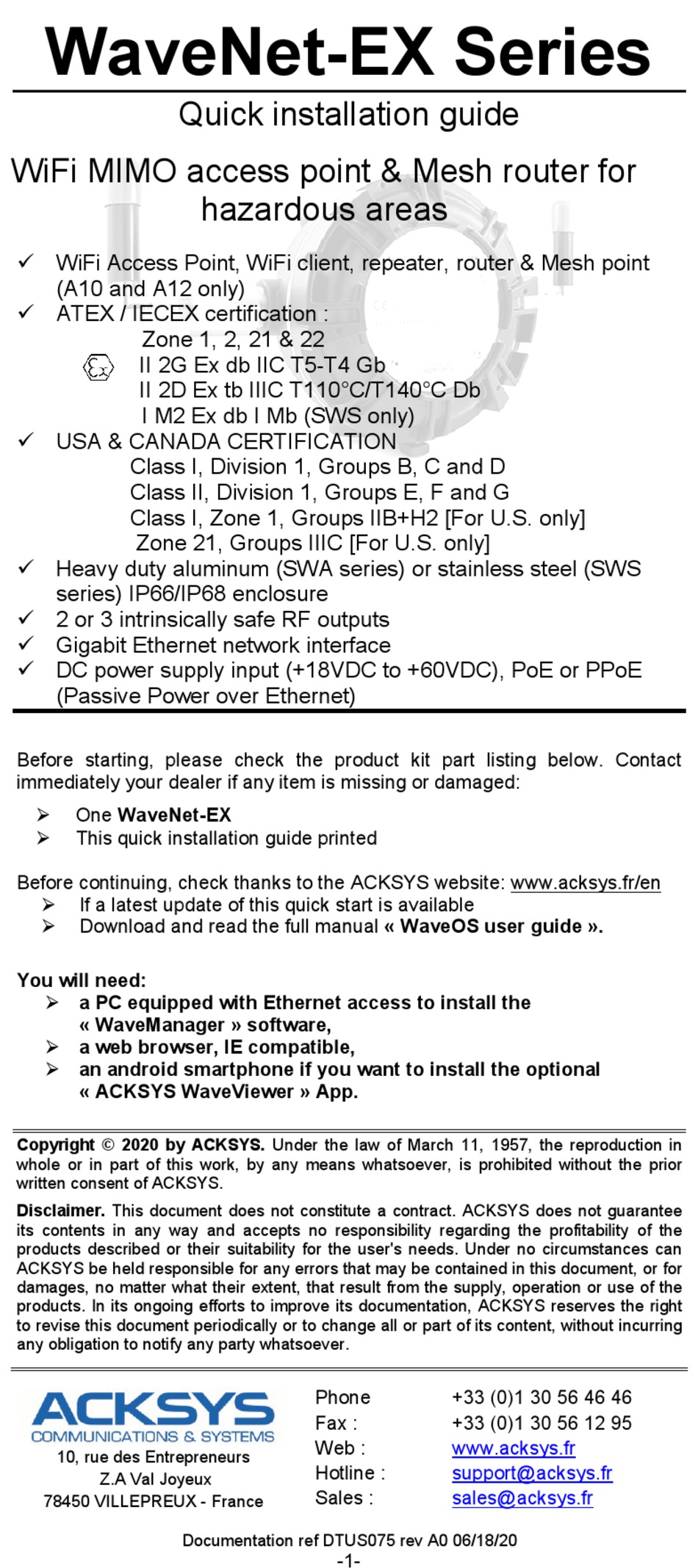

Acksys WaveNet-EX Series Quick Installation Manual

WaveNet-EX Series
WiFi MIMO access point & Mesh router for
 WiFi Access Point, WiFi client, repeater, router & Mesh point
(A10 and A12 only)
 ATEX / IECEX certification :
Zone 1, 2, 21 & 22
II 2G Ex db IIC T5-T4 Gb
II 2D Ex tb IIIC T110°C/T140°C Db
I M2 Ex db I Mb (SWS only)
 USA & CANADA CERTIFICATION
Class I, Division 1, Groups B, C and D
Class II, Division 1, Groups E, F and G
Class I, Zone 1, Groups IIB+H2 [For U.S. only]
Zone 21, Groups IIIC [For U.S. only]
 Heavy duty aluminum (SWA series) or stainless steel (SWS
series) IP66/IP68 enclosure
 2 or 3 intrinsically safe RF outputs
 Gigabit Ethernet network interface
 DC power supply input (+18VDC to +60VDC), PoE or PPoE
(Passive Power over Ethernet)
Before starting, please check the product kit part listing below. Contact
immediately your dealer if any item is missing or damaged:
One WaveNet-EX

This quick installation guide printed

Before continuing, check thanks to the ACKSYS website: www.acksys.fr/en
If a latest update of this quick start is available

Download and read the full manual « WaveOS user guide ».

You will need:
 a PC equipped with Ethernet access to install the
« WaveManager » software,
 a web browser, IE compatible,
 an android smartphone if you want to install the optional
« ACKSYS WaveViewer » App.
Copyright © 2020 by ACKSYS. Under the law of March 11, 1957, the reproduction in
whole or in part of this work, by any means whatsoever, is prohibited without the prior
written consent of ACKSYS.
Disclaimer. This document does not constitute a contract. ACKSYS does not guarantee
its contents in any way and accepts no responsibility regarding the profitability of the
products described or their suitability for the user's needs. Under no circumstances can
ACKSYS be held responsible for any errors that may be contained in this document, or for
damages, no matter what their extent, that result from the supply, operation or use of the
products. In its ongoing efforts to improve its documentation, ACKSYS reserves the right
to revise this document periodically or to change all or part of its content, without incurring
any obligation to notify any party whatsoever.
10, rue des Entrepreneurs
Z.A Val Joyeux
78450 VILLEPREUX - France
Quick installation guide
hazardous areas
Documentation ref DTUS075 rev A0 06/18/20
Phone
Fax :
Web :
Hotline :
Sales :
-1-
