Acksys SWA Series Manual

Wavenet-ex manual annex
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DESCRIPTION ........................................................................................................................................................................................1
POWER SUPPLY ....................................................................................................................................................................................1
TEMPERATURE RANGE .........................................................................................................................................................................1
WIRING .................................................................................................................................................................................................2
DEVICE CONFIGURATION .....................................................................................................................................................................3
TROUBLESHOOTING AND LED DEFINITION ..........................................................................................................................................7
RF INFORMATION .................................................................................................................................................................................7
MAXIMUM PERMITTED RF THRESHOLD POWER (Pth) ......................................................................................................................10
MAXIMUM JOULES CALCULATION IN CASE OF COAX CABLE INSTALLATION .....................................................................................10

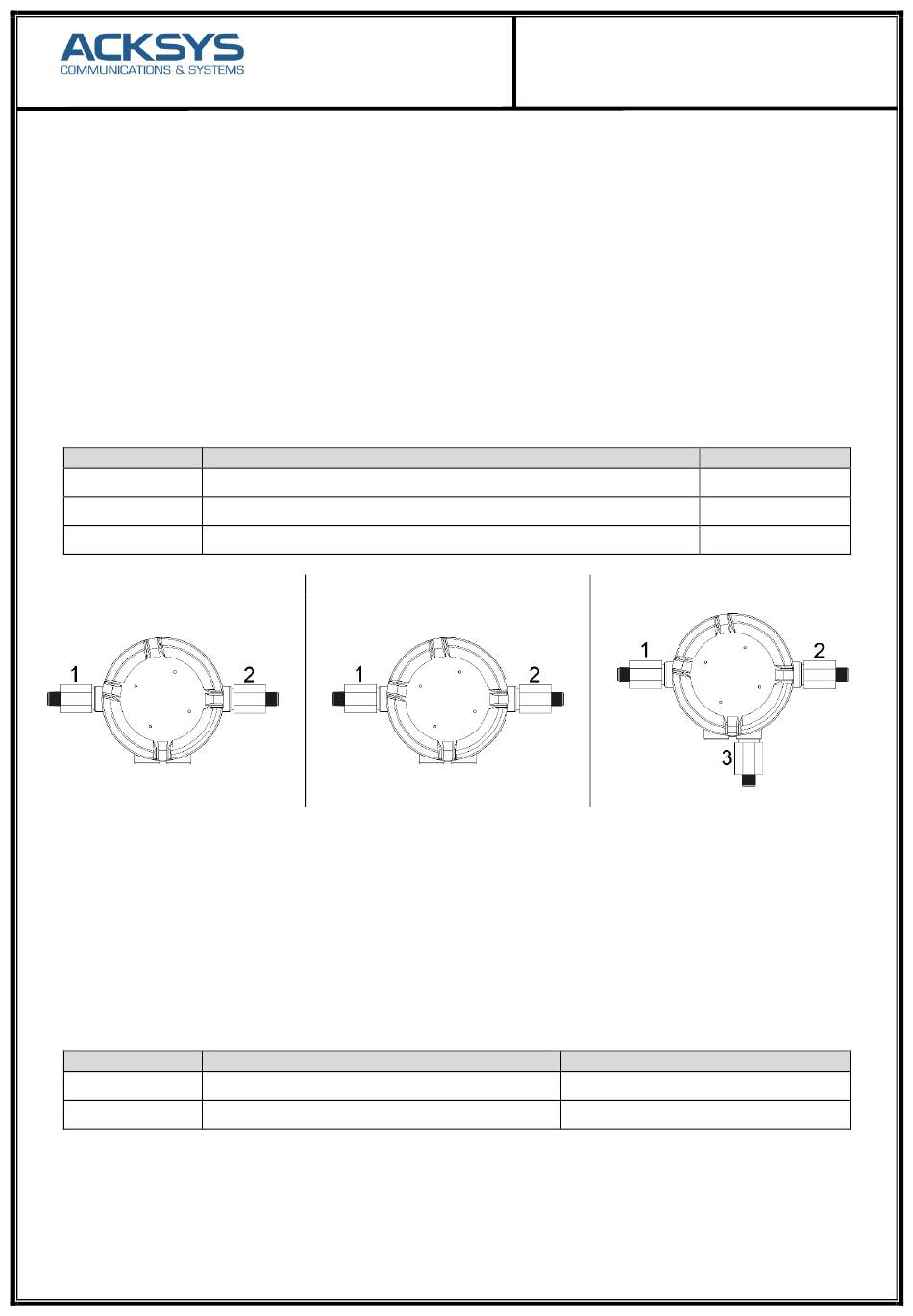

DESCRIPTION

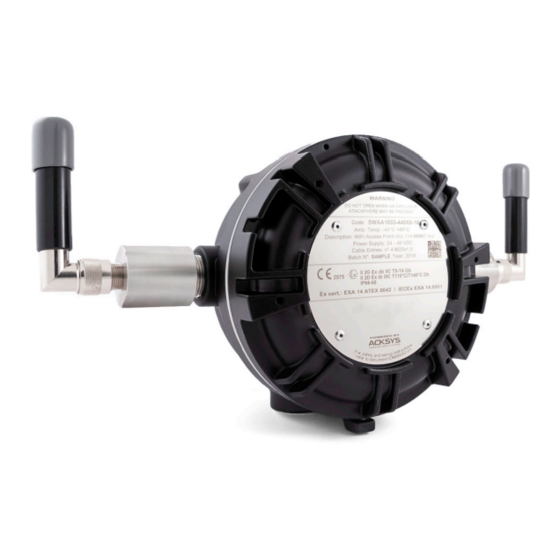

The SWA & SWS A series is a WiFi access point equipped with 1 Ethernet port and up to 3 WiFi ports as follows:
Device version
A10
A11
A12
A10
POWER SUPPLY
Screw terminals = Supply voltage: 18 ~ 60 VDC
RJ45 connector = PPoE @ 24 VDC or PoE @ 48 VDC *
Max Power Consumption 8W
* PPoE = Passive Power over Ethernet (operating voltage 24VDC), PoE = Power over Ethernet (operating voltage 48VDC)
TEMPERATURE RANGE
Device version
SWA
SWS
WARNING : The unit can be reach a surface temperature of 70°C, use cable and cable glands / conduit Ex certified suitable for
this temperature
10, rue des Entrepreneurs
78450 Villepreux - France
www.acksys.fr
Model
WiFi Access point 802.11n MIMO 2x2
WiFi Access point 802.11ac MIMO 2x2
WiFi Access point 802.11n MIMO 2x2 plus 802.11ac (1 stream)
Model
Aluminium enclosure
Stainless steel enclosure
WaveNet-EX manual Annex
A11
WiFi Port
n° 2
n° 2
n° 3
A12
Ambient temperature range
min -40°C - max +60°C
min -40°C - max +50°C
Annex to IOM00052-01 SW_A1x_rev00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acksys SWA Series

Summary of Contents for Acksys SWA Series

  • Page 1: Table Of Contents

    10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr DESCRIPTION ......................................1 POWER SUPPLY ....................................1 TEMPERATURE RANGE ..................................1 WIRING .........................................2 DEVICE CONFIGURATION ..................................3 TROUBLESHOOTING AND LED DEFINITION ............................7 RF INFORMATION ....................................7 MAXIMUM PERMITTED RF THRESHOLD POWER (Pth) ........................10 MAXIMUM JOULES CALCULATION IN CASE OF COAX CABLE INSTALLATION ..................10...

  • Page 2: Description

    10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr WIRING Label Description RJ45 LAN connector (PPoE @24VDC or PoE @ 48VDC)* Label Description Power supply - (18 ~ 60 VDC) Power supply + (18 ~ 60 VDC)

  • Page 3: Device Configuration

    Verify that the IP address factory setting is compatible with your network, if the IP address is not suitable for your network use Windows application WaveManager (available on web site www.acksys.fr). After the WaveManager installation run the application, select the EmbedAir1000 device then click to “Setup”: now you can configure the IP address or you can activate the DHCP client.
  • Page 4 10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr Step 2 Using your web browser open the WEB interface (IP address: 192.168.1.253) and select the “SETUP” tab: For setup page is required User name and password and for factory setup the user name is root and no password is required (these data can be changed under “TOOLS”...
  • Page 5 10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr You can select radio interface to set up its WiFi parameters (you can also change IP configuration and services). In function of device version the WiFi Interface available are:...
  • Page 6 10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr WiFi Interface 2 WiFi Access point 802.11ac only (antenna 1 MIMO 2x2 and 2) WiFi Interface 1 WiFi Access point 802.11n MIMO (antenna 1 & 2) 2x2 plus 802.11ac (1 stream)

  • Page 7: Troubleshooting And Led Definition

    The operating mode: 802.11 mode, radio channel (take care about local legislation), SSID  WiFi security parameters (WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, SSID broadcast or not) For more details consult Acksys WaveOS User Guide. TROUBLESHOOTING AND LED DEFINITION None of the LED indicators turn ON ...
  • Page 8 10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr 18 dBm @ 150 Mbps (MCS 7) 802.11n HT20 5GHz band 18 dBm @ 7.2 Mbps (MCS 0) 15 dBm @ 72.2 Mbps (MCS 7) 802.11n HT40 5GHz band...
  • Page 9 10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr 802.11b 2.4GHz band 20 dBm @ 1 Mbps 20 dBm @ 11 Mbps 802.11g 2.4GHz band 21 dBm @ 6 Mbps 18 dBm @ 54 Mbps 802.11a 5GHz band 20 dBm @ 6 Mbps 15 dBm @ 54 Mbps 802.11n HT20 2.4GHz band...

  • Page 10: Maximum Permitted Rf Threshold Power (Pth)

    10, rue des Entrepreneurs WaveNet-EX manual Annex 78450 Villepreux - France www.acksys.fr MAXIMUM PERMITTED RF THRESHOLD POWER (Pth) The RF threshold power (Pth), sometimes called the effective isotropic radiated power (EIRP), as defined in IEC /EN 60079-0, is the product of the effective output power of the transmitter multiplied by the antenna gain. The maximum threshold powers for each equipment group as defined by Table 4 in IEC/EN 60079-0 are provided below.

This manual is also suitable for:

Sws a seriesA10A11A12
