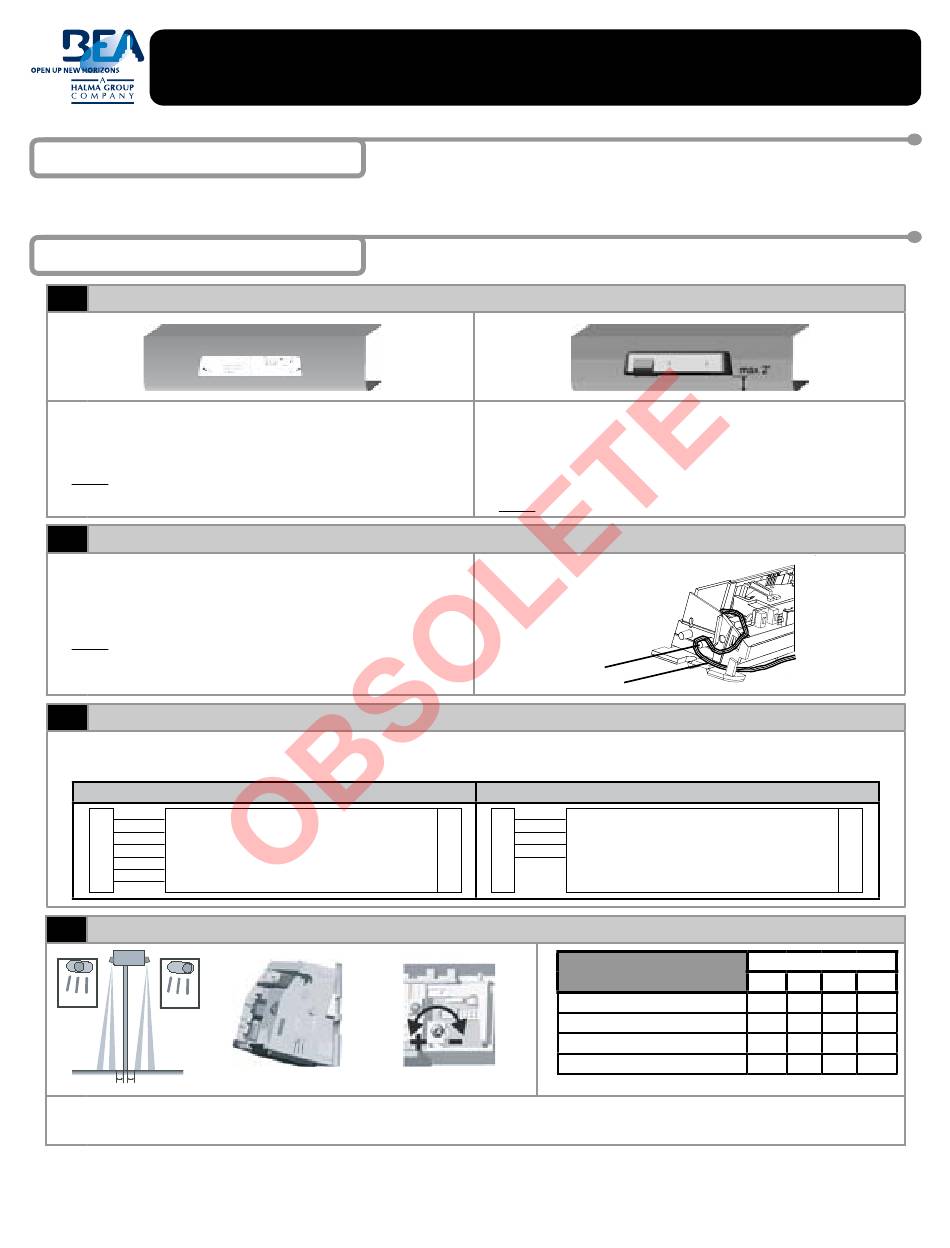

BEA WIZARD II Quick Setup Manual

1 Description
The Wizard II Quick Setup Guide is for the installation and setup of the Wizard II. This document is provided for installers and service personnel
who are familiar with the Wizard II. For those who are not completely familiar with the installation and setup of the Wizard II, BEA recommends
following the detailed installation and setup instructions found in the Wizard II User's Guide document number 75.5122.
2 Installation / Wiring / Setup
1 Mount Sensor
1. Attach mounting template to center of door header as shown
above. Template should be 0" to 2" above bottom edge of header.
Drill hole marked for wire passage and drill pilot holes for screw
mounting.
NOTE: Flush mount with bottom of header is necessary for all
negative IR angles.
2 Cable Routing
1. With Wizard in place, locate the enclosed cable and feed the
stripped end through the wire passage hole in the header.
2. Leave enough slack to allow connection to the Wizard and proper
routing of wire around the plastic post.
NOTE: Observe proper routing of the cable as shown. This is to
divert rainwater from the Wizard if water should run down
the cable. Proper routing of the wire also provides easier
installation of the cover.
3 Sensor Wiring
1. When connecting to a microprocessed control box, the motion output and presence output wires may be connected to separate inputs or may
also be connected to a mutual input. Some controls may only have an activation input, while others may have an activation input, as well as a
safety (or presence) input.
6 Wire Configuration (Preferred Configuration)
W •
PWR: Red - 12 to 24 VAC / VDC: -5% to +10%
I • PWR: Black - 12 to 24 VAC / VDC: -5% to +10%
Z • COM: White - Common at Door Control
A • ACTIV: Green - Activation at Door Control
R • COM: Brown - Common at Door Control
D
• SAFETY: Blue - Safety at Door Control
4 IR Presence Sensing Field: Width and Depth (wide lens installed as default)
0°
-4°
max. 3" max. 3" Sensor Plastic Pin Indicator Sensor Adjustment Screw
1. The IR pattern may be adjusted by moving the pattern nearer or further away from the face of the door by adjusting the tilt angle from +4° to
-4°. A counterclockwise rotation of the adjustment screw will move the curtain further away from the door and clockwise rotation will move the
curtain toward the door. Precise location of the IR beam may be found by using BEA's Spotfinder P/N 10SPOT.
75.5269.02 20071011
COMBINED RADAR ACTIVATION AND ACTIVE INFRARED SAFETY SENSOR
C
O
N
T
R
O
L
+4°
-4°
0°

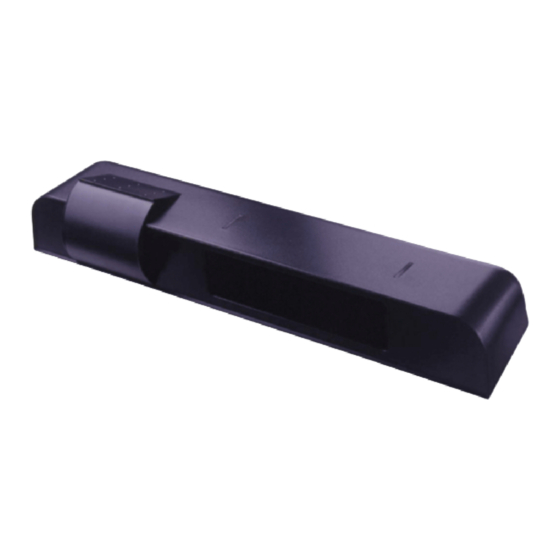

WIZARD II SMR
QUICK SETUP GUIDE
2. Mount the sensor at a maximum height of 2" from the bottom line of
the door operator.
3. Insert mounting screws approximately halfway in and install the
Wizard on the screws. When in place, tighten screws to secure to
header.
NOTE: Leave cover off until mechanical adjustments are complete.
Plastic Post
Cable / Wire
4 Wire Configuration (Mandatory Remote Setup: Unlock, F1, 1, Lock, Lock)
W •
PWR: Red - 12 to 24 VAC / VDC: -5% to +10%
I • PWR: Black - 12 to 24 VAC / VDC: -5% to +10%
Z • COM: White - Common at Door Control
A • ACTIV: Green - Activation at Door Control
R
D
Dimensions Are Approximate Size
IR Patterns
Narrow Lens Depth of Two Curtains
Narrow Lens Width of Curtains
Wide Lens Depth of Two Curtains
Wide Lens Width of Curtains
C
O
N
T
R
O
L
Mounting Height of Sensor
7' 10' 12' 14'
1'3" 1'6" 1'8" 1'10"
3'6" 5' 6' 7'
1'3" 1'6" 1'8" 1'10"
6'6" 10' 12' 14'
Page 1 of 2
