- Page 1 ® Unison Echo Astronomical TimeClock Configuration Manual Software Version 2.0 Copyright © 2016 Electronic Theatre Controls, Inc. All rights reserved. Product information and specifications subject to change. Part Number: 7186M1230-2.0.0 Rev: A Released: 2016-09...
- Page 2 ® ® ® ™ , Sensor , Unison Echo , and Ec hoCon nect are either registered trademarks or trademarks of Electronic Theatre Control s, I nc. in th e United States and other co untries. All other trademarks, both marked and not marked, are the property of their respective owners.
-
Page 3: Table Of Contents
Warnings and Notice Conventions... . .2 Contacting ETC ......3 Specification . - Page 4 Auto Timed Hold ..... . .17 Schedule an Event ......17 Open/Close Settings .
-
Page 5: Overview
Overview Welcome to the Echo Astronomical TimeClock (E-ATC) Installation and Configuration Manual. This guide contains the procedures for successful ® programming of the E-ATC when used as part of a Unison Echo control system. ® The E-ATC provides Unison Echo and Sensor power control systems with low-cost, easy-to-use, and easy-to-program time-based control. -
Page 6: Warnings And Notice Conventions
Warnings and Notice Conventions These symbols are used throughout ETC documentation to alert you to danger or important information. Note: Notes are helpful hints and information that are supplemental to the main text. CAUTION: A Caution statement indicates situations where there may be undefined or unwanted consequences of an action, potential for data loss or an equipment problem. -
Page 7: Contacting Etc
Contacting ETC If you are having difficulties, your most convenient resources are the references given in this manual. To search more widely, try the ETC website at www.etcconnect.com. If none of these resources is sufficient, contact ETC technical services directly at one of the offices identified below. -
Page 8: Specification
Specification Note: Installation should follow all local codes and standard electrical practices. Ambient Environment For indoor, commercial controls use only. Operating temperature 0-40°C, 5-95° non-condensing humidity. Compliance • UL and cUL LISTED • CE marked • Meets California Title 24 •... - Page 9 Note: Category 5 (Cat5) wiring is supported for the EchoConnect station communication bus with some limitations. Reference the ETC Cat5 Cable Preparation Setup Guide for more details. ETC documentation is available for download at www.etcconnect.com. The EchoConnect bus pigtail is connectorized for installation to the two position receptacle on the rear side of the E-ATC.
-
Page 10: Mounting Requirements
Ensure that the back box is clean and free of obstructions and that all wiring is installed correctly. Surface A surface mounted back box is available, sold separately, from ETC. Echo Room Controller ETC offers the Echo Room Controller with integrated Echo Astronomical TimeClock. -
Page 11: Echo Control System
Echo Control System Echo control system utilizes the EchoConnect bus for communication, allowing Echo enabled products to interact. An Echo control system is limited to 16 Echo control products and 16 Echo output products. If more Echo products are required in a system, an Echo Expansion Bridge may be added to the system. -
Page 12: E-Atc With Echo Station Power Module With Aux8
E-ATC with Echo Station Power Module with Aux Echo Station Power Module with Aux Power E-SPM-WM-A wall / rack mount power module (not included) models available Echo TimeClock Recall Preset Back Enter Down Hold EchoConnect (Belden 8471 + (1) 14 AWG ESD ground wire) Echo TimeClock Configuration Manual... -
Page 13: Installation And Setup
Installation should follow local codes and standard practices. Install the backbox flush and square for best installation results. Alternatively, a surface mounted backbox may be used (sold separately and available from ETC.) Connect the Wiring The E-ATC ships with an EchoConnect pigtail, a 24 Vdc power pigtail, spacers and all required screws and connectors for the installation. - Page 14 Step 1: Pull all required wiring into the installed backbox. As needed, pull an additional ESD ground wire (required only when the station is not installed in grounded metal conduit). Step 2: Terminate and connect station ESD ground. Locate the ESD ground wire pigtail and one WAGO cage clamp connector from the termination kit.
-
Page 15: Install The E-Atc Into The Back Box
Step 4: Terminate and connect 24 Vdc auxiliary power wires. Locate the 24 Vdc power pigtail (black and red wire pair) and two WAGO cage clamp connectors from the termination kit. Strip 3/8” (9-10mm) from the ends of the installed auxiliary power wires (typically red and black wire pair) from the power source and remove the pre-stripped ends from each 24 Vdc aux power pigtail wire. -
Page 16: Install The Faceplate
Step 2: Use spacers as needed to provide a flush mounted station. Fold the spacer in a zig-zag fashion and press the stack together to achieve the thickness needed to fill the gap between the station, wall surface, and the back box. Cut off and discard the excess. -
Page 17: User Interface Overview

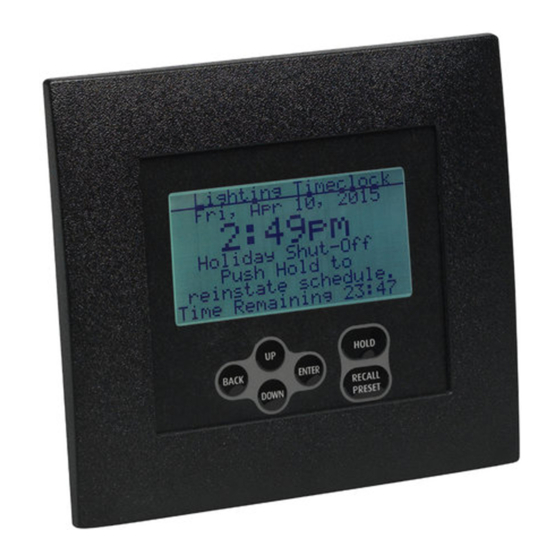

User Interface Overview Keypad The user interface has an easy to use menu-navigation keypad that includes [Up], [Down], [Back], and [Enter] buttons. The [Recall Preset] and [Hold] buttons are provided for everyday time clock operation. Pressing [Up], [Down], or [Enter] will activate the main menu. Pressing the [Recall Preset] or [Hold] buttons wakes the LCD and invokes the respective time clock function. -
Page 18: Hold
Hold A Hold triggers an override to one or more scheduled events, allowing manual lighting control to persist. When a hold is active, regularly scheduled events are ignored and “-Schedule on Hold -” is displayed for the affected space. When an active hold is cleared, the originally scheduled event is restored. Without an active hold condition any manual lighting control will be replaced by the next scheduled event that occurs. -
Page 19: Indefinite Hold
The display indicates the affected space with a Timed Hold enabled. Both the space number and the time remaining are shown. If additional spaces have a Timed Hold enabled, the display will cycle through all spaces at two second intervals. Lighting Timeclock Lighting Timeclock Lighting Timeclock... -
Page 20: Main Menu
C h a p t e r 2 Main Menu The Main Menu provides access to set up and configure events, timeclock settings, Preset and Sequence controls, and Holiday Shut-Off settings. Main Menu Schedule Events Open/Close Settings Timeclock Settings Presets Holiday Shut-Off August 13, 2016 09:51am... -
Page 21: Auto Timed Hold
Auto Timed Hold All scheduled events support a configurable Auto Timed Hold property with options of No, Yes, and While Closed. By default, all events are set to use While Closed for the Auto Timed Hold setting. When a preset or sequence is manually triggered during an event and Auto Timed Hold is set to Yes, that active event is placed on hold until the interrupting action has completed and the hold timer lapses (hold timer is default is 120 minutes), or in the case of the While Closed setting, the Open... -
Page 22: Open/Close Settings
Step 7: Scroll to select the Preset or Sequence number and press [Enter] to commit the current displayed selection. Step 8: Press [Enter] to return to Preset or Sequence. Step 9: Scroll to select Recurrence from the menu list and press [Enter]. -
Page 23: Timeclock Settings
• The default for Open is 8:00 am. • The default for Close is 9:00 pm. Timeclock Settings Timeclock Settings Time: 1:05 am Time Style: 12 hour Date: Jun / 6 / 2015 Hold Time: 120 min Flick Warn: Warn Time: 2 min Time Zone: GMT -6... -
Page 24: Change Current Date
Change Current Date Step 1: Select Date from the Timeclock Settings menu. Step 2: Press [Enter] to modify the current selection. The Month field will display selected. Step 3: Use the [Up] or [Down] buttons to scroll to the current month and press [Enter]. -
Page 25: Set Warn Time
Set Warn Time Warn Time is the amount of time before the TimeClock issues a scheduled Off action, preceding a Flick Warn. Factory default Warn Time is two minutes, but can be set to any value from 1-60 minutes. Step 1: Select Warn Time from the Timeclock Settings menu. -
Page 26: Set Daylight Saving Time
Set Daylight Saving Time Set the current Daylight Saving Time (DST) location. Selecting an option from this menu list utilizes default Daylight Saving Time dates for the selected location. Step 1: Select DST from the Timeclock Settings menu. Step 2: Press [Enter] to modify the current selection. -
Page 27: Presets
Presets The Presets menu provides access to manually activate, record, and deactivate host presets. The number of presets available is dependant on the product type. • Echo Relay Panel and Sensor IQ - up to 64 presets • Unison DRd rack with E-ACP - up to 64 presets •... -
Page 28: Record A Preset
Record a Preset Before recording a new preset or recording over an existing preset, set the desired lighting look using Echo Inspire or Preset stations, the product user interface, or an external DMX control source. Note: Recording a preset will affect the function of the button stations and other products in the system. -
Page 29: Holiday Shut-Off
Holiday Shut-Off The Holiday Shut-Off feature enables override of scheduled events (per individual space) for a specified period of time (1-7 days). The default override is set to 1 day. The Holiday Shut-Off feature is compliant with California Title 24. Holiday Shut-Off H o l i d a y S h u t - O f f H o l i d a y S h u t - O f f... -
Page 30: Change Default Shut-Off Time Duration
Step 6: Repeat steps 3 through 5 for all spaces you want to configure. Change default Shut-Off Time duration Step 1: Select Start Holiday Shut-Off from the Holiday Shut-Off menu and press [Enter]. Step 2: Use [Up] and [Down] to scroll to Shut-Off for:, then press [Enter]. -
Page 31: Menu Flow Chart
A p p e n d i x A Menu Flow Chart Lighting Timeclock Status Screen Monday, Sep 26, 2016 9:51AM v2.0.0 Hold Screen Lighting Timeclock Variants Monday, Sep 26, 2016 9:51AM -Schedule on Hold - Time remaining 1:31 Lighting Timeclock Monday, Sep 26, 2016 9:51AM -Schedule on Hold -... - Page 32 Echo TimeClock Configuration Manual...
- Page 33 Menu Flow Chart...
- Page 34 Echo TimeClock Configuration Manual...
- Page 36 Service: (Asia) service@etcasia.com Web: www.etcconnect.com Copyright © 2016 ETC. All Rights Reserved. Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7186M1230-2.0.0 Rev A Released 2016-09 ...
