- Page 1 USER MANUAL Magnetotherapy model MAG2000 PLUS...
- Page 3 INDEX INDEX TECHNICAL SPECIFICATIONS ANUFACTURER ECLARATION OF CONFORMITY LASSIFICATIONS URPOSE AND SCOPE ECHNICAL FEATURES EVICE AND COMMANDS DESCRIPTION ABELLING Package content HOW TO USE NTRODUCTION TO TECHNOLOGY ONTRAINDICATIONS AND SIDE EFFECTS ARNINGS ATIENT PREPARATION POSITIONING OF THE THERAPEUTIC BELT AND SOLENOIDS MAIN APPLICATIONS AND SUGGESTIONS ETUP AND PROGRAMS INSTRUCTIONS...
-
Page 4: Declaration Of Conformity
Manufacturer I.A.C.E.R. S.r.l. Via S. Pertini, 24/a • 30030 Martellago (VE) Tel. 041.5401356 • Fax 041.5402684 IACER Srl is an Italian medical devices manufacturer (CE certificate n° 0068/QCO-DM/230-2020 issued by MTIC InterCert S.r.l. notified body n°0068). Declaration of conformity I.A.C.E.R. S.r.l Via S.Pertini 24/A –... -
Page 5: Purpose And Scope
Thanks to the high intensity of the magnetic field that can generate, MAG2000 PLUS is particularly indicated in the treatment of bone fractures even in the presence of rigid bandages or plaster. IACER Srl MNPG53-07... -
Page 6: Technical Features

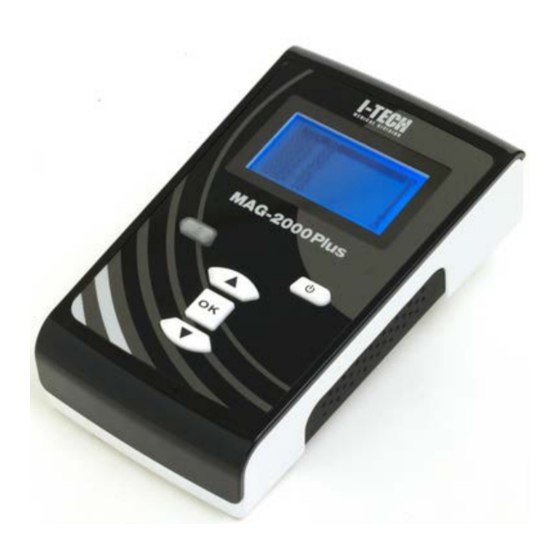

Gauss (per channel) in USER programs Squared wave frequency Adjustable 1-120Hz Therapy time Adjustable (max 12 consecutive hours) Temperature From +5 to + 28 °C Environmental conditions of Relative humidity From 15 to 93% operation Pressure From 700 to 1060hPa IACER Srl MNPG53-07... - Page 7 Expected life of the device and its accessories: 2 years. Device and commands description Label (retro) Power button and return to the program choice menu. OK key, confirmation button. Selection/increment key. Selection/decrement key. During the therapy a green light will turn on. IACER Srl MNPG53-07...
- Page 8 1. ON/OFF button 2. Power supply entrance DC 15V/1.2A 3. CH2 connector 2 4. CH1 connector 1 Labelling The label on the side is placed on the back of the device IACER Srl MNPG53-07...
- Page 9 Relative humidity (storage, packaging). Protection level against solids, dusts and liquids IP20 entrance (device protected against solid foreign IP01 objects ≥ 12,5 mm and greater and vertically falling water drops). The case of the device guarantees the IACER Srl MNPG53-07...
- Page 10 • • N°1professional solenoids couple (cable 1.5m); • N°1 magnet tester; N°1 carrying bag; • • N°1 protective envelope. Solenoids couple, magnetotherapy carpet and OSTEOMAT mattress are available accessories demand. Visit website www.itechmedicaldivision.com to obtain more information. IACER Srl MNPG53-07...
-
Page 11: Contraindications And Side Effects
No significant side effects are known of, nor are reported contraindications for excessive time length using the device. Warnings It is recommended that you read this manual carefully before using the device. For any further information and in-depth we suggest you visiting our IACER Srl MNPG53-07... - Page 12 Assistance section. Check the integrity before each use; The use of the appliance contemporary to liniments containing free • ions of magnetic metals; IACER Srl MNPG53-07...
- Page 13 The materials used to produce the device have exceeded the prescribed standards for the toxicity of the materials themselves. In case of allergic reactions, discontinue therapy and consult a physician. IACER Srl MNPG53-07...
- Page 14 (in opposite position or position on the area, for example in vertebral column treatment). Also, in this case take care to place the green side of the therapeutic belt on the skin. Ankle Back (lumbar) Knee Shoulder Wrist Elbow Cervical IACER Srl MNPG53-07...
- Page 15 100G and a treatment time longer than 2 hours; Do not adjust intensity higher than 50G if you use magnetotherapy • carpet (optional accessory) for prolonged treatments. Applicator choice depends on operator discretion (solenoids couple or solenoids belt). IACER Srl MNPG53-07...
- Page 16 The first 20 programs are associated with the treatment of specific pathologies with preset parameters recommended by IACER, while the following 15 have only the preset working frequency, leaving the user the freedom to choose the duration and the cycles of sessions.The device has also the possibility to...
-
Page 17: List Of Programs
IACER recommends at least one treatment / session per day of the ongoing seating cycle. MAG2000 PLUS uses therapy time values, working frequency values and field intensity values coming from scientific and medical literature, as result of well-known experimentations and clinical evaluations (Barker - Lunt 1983, Bassett –... - Page 18 Here are the instructions to follow for choosing the appropriate program according to the pathology: 1. Within the menu, scroll through the list of programs by using the keys , then select the desired program and press OK. IACER Srl MNPG53-07...
- Page 19 2. The display will show the basic therapy time setting (from the figure, 2 hours) and the magnetic field intensity (50G) of the selected program. These are average values suggested by IACER to start the treatment immediately and effectively. 3. Press the button by highlighting the magnet icon in the lower left then press OK.
- Page 20 1. In the program detail press OK button to select the moving wrench icon on the left side. 2. Press buttons to adjust the desired therapy hours (from 0 to 24) and confirm by pressing OK. Screen will highlight the therapy minutes. IACER Srl MNPG53-07...
- Page 21 TO USER10) choosing therapy parameters as treatment time, field intensity and working frequency: it’s possible set and keep in memory the treatment time, field intensity and working frequency. In free memories USER only the professional solenoids couple must be used thanks to its rechargeable high intensity. IACER Srl MNPG53-07...
- Page 22 (from 0 to 24) and confirm by pressing OK key. Screen will highlight the therapy minutes. Press keys to adjust the desired therapy minutes and confirm by pressing OK key. Screen will highlight treatment intensity. IACER Srl MNPG53-07...
- Page 23 ATTENTION: it’s possible to temporary stop the therapy at any time by pressing OK key at least for 2 seconds. Press again OK key to continue the treatment. During the pause time green led turns off until the treatment restarts. IACER Srl MNPG53-07...
- Page 24 Move the ON/OFF switch, placed on device upper side, to the ON position. Immediately after keep pressed the button until the language list appears on the display. Release the button: select the chosen language by using the buttons. Press OK key to confirm your selections. IACER Srl MNPG53-07...
-
Page 25: Functioning Control
Extract the cable with 3 solenoids by removing the 2 silver studs through a screwdriver or open the circular cases through lateral zip. Clean the tissue by using water and mild soap and wait for the complete drying before reconnecting the applicators. IACER Srl MNPG53-07... -
Page 26: Carriage And Storage
10 to 93% atmospheric pressure from 700 to 1060hPa Inside the supplied carrying bag (even for transport): temperature from –5 to +40 °C relative humidity from 10 to 93% atmospheric pressure from 700 to 1060hPa IACER Srl MNPG53-07... -
Page 27: Warranty
City Council, the waste disposal service or the shop where you purchased the product. Warranty IACER Srl guarantees a warranty period from the purchasing date for MAG2000 PLUS device, unless information contained in this manual regarding installation, use and maintenance is strictly adhered. The wearing parts (applicators’... - Page 28 The warranty conditions are those described in the following paragraph Warranty conditions. The warranty is provided by IACER. WARNING! In the event of non-shipment, the manufacturer declines all responsibility, if corrective action on the equipment is necessary. Should you need to return the goods then please pack the device and all the accessories so that it won’t be damaged during transportation.
- Page 29 RF IMMUNITY ASPECTS, column 800MHz-2,5GHz, paragraph EMC tables. Example: for a mobile phone with 2W maximum output power the separation distance d=3,3m in order to IACER Srl MNPG53-07...
- Page 30 For more details consult the compatibility tables at the end of the manual. IACER Srl MNPG53-07...
-
Page 31: Electromagnetic Compatibility Tables
MAG2000 is suitable for use in all CISPR 11 establishments, including Harmonic emissions domestic establishments Class A those directly connected to the IEC 61000-3-2 public low-voltage power supply network that supplies buildings Voltage fluctuations/ used for domestic purposes. flicker emissions Compliant IEC 61000-3-3 IACER Srl MNPG53-07... - Page 32 (30% dips of (30% dips of MAG2000 be powered IEC 61000-4-11 from an uninterruptible for 25 cycles for 25 cycles power supply (UPS) or a battery <5% U <5% U (>95% dips of (>95% dips of IACER Srl MNPG53-07...
- Page 33 150 kHz ] V) to 80 MHz for ISM band Irradiated RF 10V/m 10V/m from 80 MHz ] V/m IEC 61000-4-3 to 2,7 GHz from 80 MHz to 800 MHz IACER Srl MNPG53-07...
- Page 34 MAG2000 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the MAG2000. Between the frequencies 150 kHz and 80 MHz, field strengths should be less than [V V/m. IACER Srl MNPG53-07...
- Page 35 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. MAG2000 PLUS. All rights reserved. MAG2000 PLUS and logos are owned by IACER and are registered. Edition: MNPG53-07 of the June 22 , 2020 IACER Srl...
