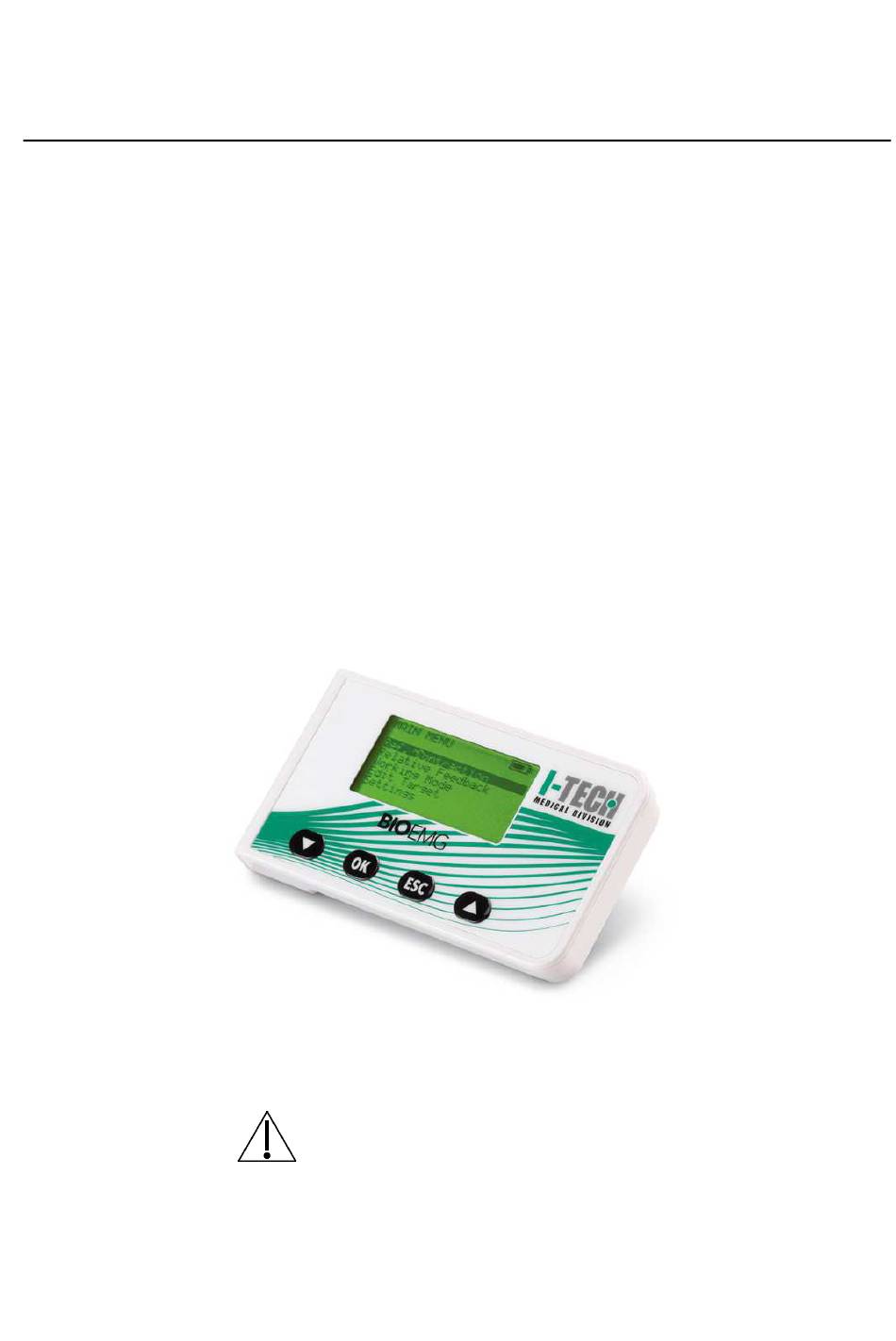

- Page 1 USER MANUAL MNPG213-00 Edition 14/01/2016 BIO EMG Read the user manual carefully before using the BIO EMG.
- Page 2 I.A.C.E.R. S.r.l. MNPG213-00...
-
Page 3: Table Of Contents
2. CONTENTS OF BIO EMG KIT 3. INTENDED USE 4. WARNINGS 5. MEANING OF THE SYMBOLS ON THE BIO EMG AND IN THE USER MANUAL 7. HOW DOES BIO EMG WORK 8. MUSCLES TO BE MONITORED – POSITION OF ELECTRODES 9. -
Page 4: General Description

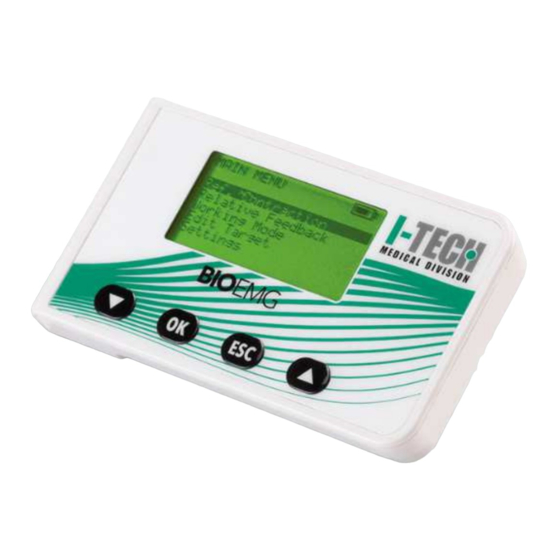

1. GENERAL DESCRIPTION What is BIO EMG: this is a biofeedback instrument based on the analysis of surface electromyographic signals (sEMG). The device is designed to detect signals generated by muscles in the human body and provide feedback from two channels. - Page 5 example, you want muscle activation to be maintained below a certain threshold (the patient is alerted each time the threshold is exceeded, being aware of this and focusing on muscle Under threshold relaxation). See how to use the working mode on page 17. When to use the Maintain Target mode This mode guides the patient to perform contractions until reaching a Target which must be maintained for a variable period of time (2-5 seconds).
-
Page 6: Contents Of Bio Emg Kit
(sEMG) received by electrodes placed on the skin. The device is suitable for training and recovery of muscles after injury; it is useful for quantitative and qualitative definition of muscular activity. To use the BIO EMG device properly you must read the user manual. I.A.C.E.R. S.r.l. -
Page 7: Warnings
Immediately contact the manufacturer if foreign materials get inside the device (liquid, powder, etc.). Should BIO EMG be subjected to impacts (like a fall to the ground, etc.), make sure that any crack or any other type of damage of the casing has damaged the device. -
Page 8: Meaning Of The Symbols On The Bio Emg And In The
• The use of BIO EMG is allowed to persons properly trained on how to use the same by reading the user manual. 5. MEANING OF THE SYMBOLS ON THE BIO EMG AND IN THE USER MANUAL The four front keys allow the user to completely control the device and all its functions. - Page 9 Multifunction keys, selection of menu options, selection of parameters and setting of desired values. Multifunction key that allows you to confirm the selected parameter and open the parameter setting window. Multifunction key that allows you to exit the menu, and the parameter setting window.
- Page 10 TARGET mode. Saves the current settings or loads a previously Save/load Settings saved set of settings. The device can store up to 4 programs. TAB. 7.1 Summary of settings of the pages displayed by BIO EMG I.A.C.E.R. S.r.l. MNPG213-00...
- Page 11 FIG. 7.1 to the right shows the page displayed if you select the recording mode of maximum voluntary contraction (MVC). MAIN MENU REF. CONTRACTION Ref. Contraction Relative Feedback Working Mode Settings Save/Load Settings CH1: µV CH2: µV FIG. 7.1: Reference Contraction Function FIG.
- Page 12 FIG. 7.3 to the right shows the pages displayed when you enter the Working Mode selection mode. MAIN MENU WORKING MODE Ref. Contraction Relative Feedback o Under threshold • Maintain Target Working Mode Settings Settings Save/Load FIG. 7.3: Working Mode operating mode page FIG.
- Page 13 SETTINGS Channel Settings Edit Target Target Error: FIG. 7.6: Target Error function page SETTINGS CHANNELS SETTINGS Channel Settings ------------------- State | Edit Target = 50% MVC Target Error: Gain Thres | FIG. 7.7: Channel Settings function page SETTINGS From this menu you can change the settings of the instrument. In particular, the items available in the menu are listed below.
- Page 14 Edit Target This parameter is used to adjust the offset from maximum and minimum threshold set by the BIO EMG system for the Relative Feedback Maintain Target mode. The target value can be set from 0 to 98%, gradually by 2%. The "arrow up" and "arrow down"...
- Page 15 Target Error This value determines the accuracy, as a percentage, at which the level of contraction set must be maintained. Selectable values range from 1 to 9%: 1% maximum control of the patient, 9% at the beginning of a period of recovery/rehabilitation. SETTINGS Channel Settings Edit Target...
-
Page 16: How Does Bio Emg Work
7. HOW DOES BIO EMG WORK Use in TARGET mode Connect the cable to the device that will turn on Connect the button electrode near a muscle being monitored Connect the electrode sEMG of CH1 (the one with the black ring) above the middle of the affected muscle. - Page 17 REF. CONTRACTION Ch1:198uS Ch2: 0uS 11. Then ESC 12. Select Relative Feedback and press OK. The device starts working. Patient’s goal is to achieve the target and maintain the contraction within the range indicated by the hatched bars. At the end press ESC to return to the main menu FEEDBACK Targ:50%...
- Page 18 MAIN MENU Ref. Contraction Relative Feedback Working Mode Settings Save/Load Settings Select Working Mode and press OK Select Under Threshold and press OK, then ESC Select SETTINGS and press OK Select Channels Settings and press OK. Use the arrow to set the % threshold value (Thres) for CH1. Then press OK to change the desired MVC value in %.
-
Page 19: Muscles To Be Monitored - Position Of Electrodes
9. CHARGING THE BATTERY The battery of BIO EMG can be recharged in two ways: • using the supplied power adapter and connecting it to the output of BIO EMG: in this case the average charge time is 2 hours. •... -
Page 20: Maintenance And Storage Of Bio Emg
Atmospheric pressure: from 700 hPa to 1060 hPa BIO EMG should be stored together with all the elements in the kit, carefully placed on a secure surface protected from the situations listed in the warnings section. BIO EMG should be stored under the following conditions: Temperature: from -20°C to +40°C... -
Page 21: Technical Features
Try running the test with new electrodes. Check the state of the cables. If a cable is damaged, replace it. Charge the device. 12. TECHNICAL FEATURES Manufacturer: IACER Srl, Italy Model and Type: BIO EMG Classification: Internally powered equipment... -
Page 22: Warranty
13. WARRANTY BIO EMG is covered by 24-month warranty (or 12 months if used in professional areas) on electronic parts. The warranty enters into effect from the date of purchase. The warranty is void if the device is tampered with or repaired by staff not authorised by the manufacturer or an authorised dealer. - Page 23 I.A.C.E.R. S.r.l. MNPG213-00...
- Page 24 Manufactured and distributed by:...
